Mechanical Press

Capacity:160 tons, 125 tons, 110 tons
The main components of our mechanicalpresses are all processed by imported CNC equipments. Japanese high-quality bearings and imported oil seal linings ensure the accuracy and longevity of the machine. 80 tons and 110 tons mechanical presses are our hot products.

Send Inquiry

Product Description

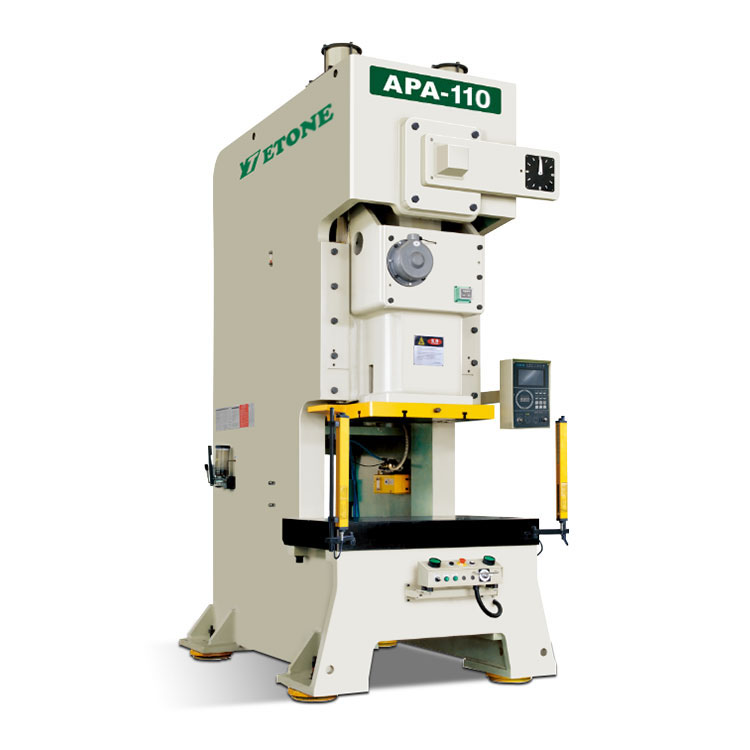

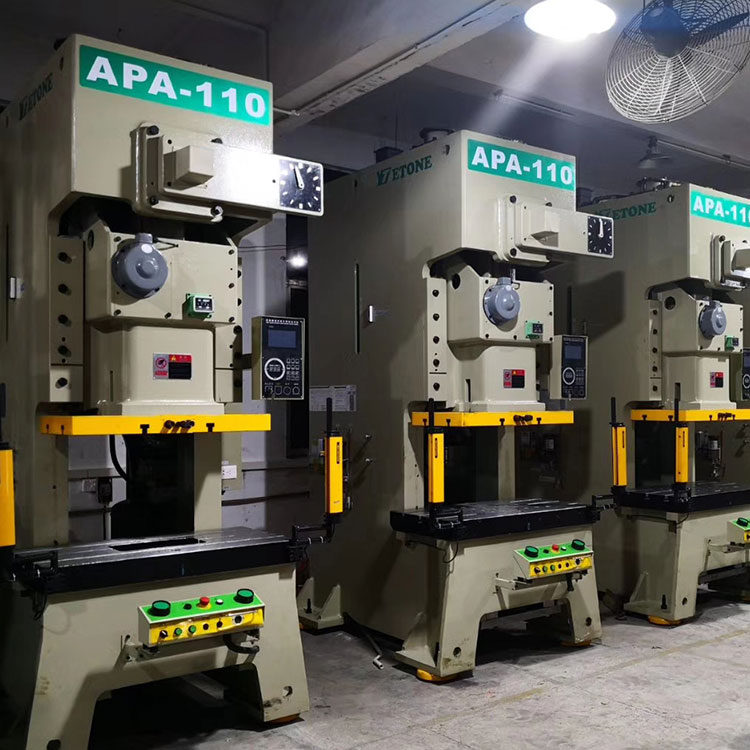

Mechanical Press



1.Mechanical press Introduction:

The APA series are C (Gap) Frame Crank Type Mechanical Stamping Press, mechanical pressof open-type fixed table presses are general-purpose presses for sheet metal stamping. They are suitable for various cold stamping processes such as shearing, punching, blanking, bending and shallow drawing. It is manufactured in strict accordance with Japanese JIS Class 1 accuracy standards and is superior to domestic standards.Generally customer-oriented, and it's our ultimate goal for being not only the most trusted, trustable and honest provider, but also the partner for our customers for Hot New Products China Mechanical Power Press/Punch Press, Welcoming interested corporations to cooperate with us, we look forward to owning the opportunity of performing with corporations across the environment for joint advancement and mutual good results. Hot New Products China Power Press, Punch Press, Now we have many years' experience in hair product production, and our strict QC Team and skilled workers will ensure that we give you top hair items with the best hair quality and workmanship. You will get successful business if you choose to cooperate with such a qualified manufacturer. Welcome your order cooperation.Shipping Port: Ningbo or Shanghai


Standard accessories

Optional accessories

Inverter



Touch pad



Preset counter



Electrical cam

Electrical automatic lubrication system

Hydraulic over-load protector

Pneumatic die cushion device

Handle Slide adjust device(APA below 60)

Foot switch

Electric Slide adjust device(APA 60 above)

Quick die change device(die lifter, clamp and die arm)

Mechanical Die height indicator( APA below 60)

Slide knock-out device

Electric  Die height indicator(APA 60 below)

Die room light

Balance device

Photo-electronic safety device

Crank angle indicator

Feeder

Electric stroke counter

Uncoiler

Air source receptacle

Straightener

Against over-run safety device

Mechanism hand

Misfeed detection consent



Power socket



Maintenance tool box



Operation Manual



Anti vibration press mount





2.Mechanical press Product Parameter:

Name



APA-160

APA-125

APA-110

Model



V type

H type

V type I H type

V type H type

Tonnage

Ton

160

125

110

Rated tonnage point

mm

6

13

6        3

6         13

Variable speed

s.p.m

20-50

40-70

20-50   40-70

20-50  50-70



Stable speed

s.p.m

35

35

35

Stroke

mm

200

90

200     90

200     100

Max Die height

mm

400

450

450     500

460     510

Slider adjustmen

mm

100

100

110

Slide size

mm

700 x550x90

850x630x90

950x700x90

Bolster size

mm

1250x760x140

1350x820x150

1500x860x160

Die handle hole

mm

50

65

 65

Main motor

kw

15

18

22

Slider adjustment device

HP

Applied air pressure

kg/cm2

6

6

6

Press precision



GB(JIS)1class

GB(JIS)1class

GB(JIS)1class

Size (LxWxH)

mm

2300x1400 x 3650

2300x 1500 x 3800

2615x 1790x 4075

Die cushion capacity

Ton

10

10

10

Die cushion stroke

mm

80

80

80

Die cushion effective area

mm2

650x 420

650x420

710x 480
