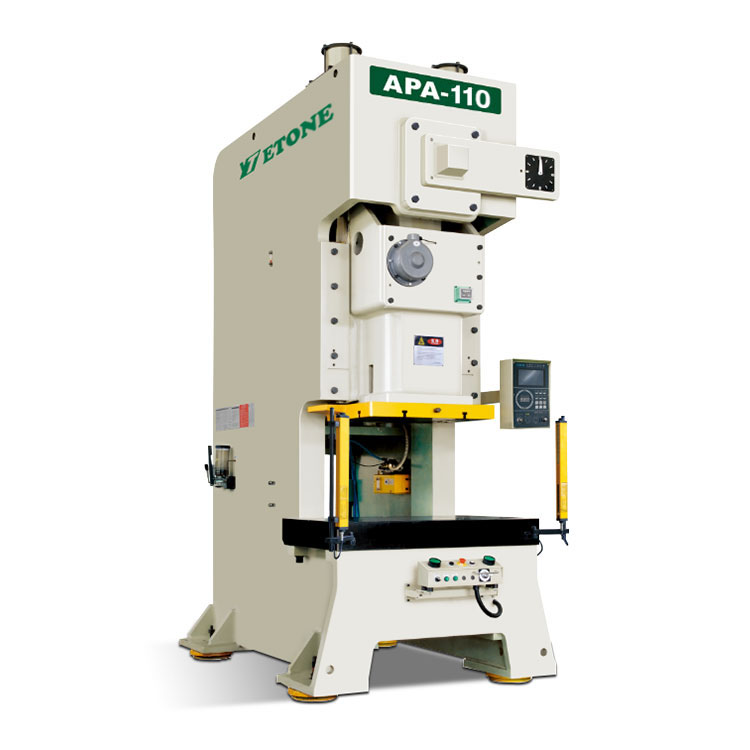

High Precision Steel Frame Press Machine
  • High Precision Steel Frame Press Machine - 0 High Precision Steel Frame Press Machine - 0
  • High Precision Steel Frame Press Machine - 1 High Precision Steel Frame Press Machine - 1
  • High Precision Steel Frame Press Machine - 2 High Precision Steel Frame Press Machine - 2

High Precision Steel Frame Press Machine

Capacity:110 tons, 125 tons, 160 tons
APA series:High precision steel frame press machine/ C frame high precision press machine / Mechanical press machine

Send Inquiry

Product Description

High Precision Steel Frame Press Machine


1.High precision steel frame press machine Introduction:

The high-rigidity frame design,welded with high-quality steel and processed by the process of eliminating internal stress. Improve the precision stability and reliability of the machine. The center of the drive is aligned with the center ofHigh precision steel frame press machine to ensure accurate and stable punching.To create far more benefit for customers is our company philosophy; customer growing is our working chase for Popular Design for China Metal Door Panel Pattern Pressing Iron Steel Door Frame Making Machine, Adhering towards the business philosophy of 'customer 1st, forge ahead', we sincerely welcome clients from at home and abroad to cooperate with us supply you with very best services! Popular Design for China Embossing Machine, Metal Door Pressing, Our experience makes us important in our customer eyes. Our quality speaks itself the properties like it do not tangle, shed or breakdown, so that are our customers will always be confident while placing an order.



2.High precision steel frame press machine Product features:

 To ensure the relative stability of the machine operation, the two slide rails and the balance device design are applied

 The die precision may be up to 0.1mm and is safe, convenient and reliable

 The crankshaft, the gear set, the connecting rod, etc. are processed by oxidation and grinding, and have extremely high comprehensiveness and wear resistance performance;

 Highly sensitive and reliable clutch/ brake device and internationally leading double solenoid valve and overload protection device are app­lied to ensure the accuracy and safety of the operation and stop of the press slide;

 High precision steel frame press machine structure is designed reasonably, which is convenient f or automatic product ion, reducing cost s and improving efficiency;

 Advanced design concept, low noise, low consumption and energy saving


3.High precision steel frame press machine Product Parameter:

Name



APA-110

APA-125

APA-160

Model



V type

H type

V type I H type

V type H type

Tonnage

Ton

110

125

160

Rated tonnage point

mm

4

2

6          3

6         13

Variable speed

s.p.m

35-80

80-120

30-60   60-90

20-50  40-70



Stable speed

s.p.m

65

50

35

Stroke

mm

150

70

180      80

200     90

Max Die height

mm

340

380

360      410

400     450

Slider adjustmen

mm

80

80

100

Slide size

mm

560 x420 x70

650x470x80

700x550x90

Bolster size

mm

1000x550x90

1150x600x110

1250x760x140

Die handle hole

mm

50

50

50

Main motor

kw

7.5

11

15

Slider adjustment device

HP

Applied air pressure

kg/ cm2

6

6

6

Press precision



GB(JIS)1class

GB(JIS)1class

GB(JIS)1class

Size (LxWxH)

mm

1800x1180 x 280 0

1900x 1300 x3200

2300x 140x 3650

Die cushion capacity

Ton

3.6

6.3

10

Die cushion stroke

mm

70

80

80

Die cushion effective area

mm2

450x 310

500x350

650x 420
