80 Ton Press Machine

80 ton press machine has an open frame, it has outstanding advantages compared with the closed type press. The working table is open in three directions, it is convenient to install the mold and operate, and provides good conditions for mechanization and automation. Due to the convenient use of open type crank press, it is widely used in various industries. It is the main equipment in sheet metal stamping production.

Send Inquiry

Product Description

80 Ton Press Machine


1.80 ton press machine Introduction:

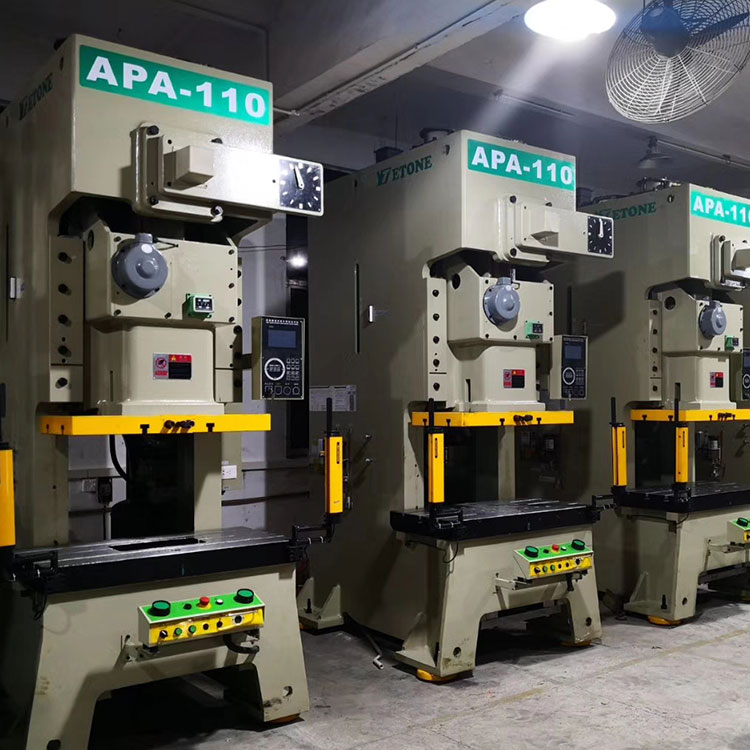

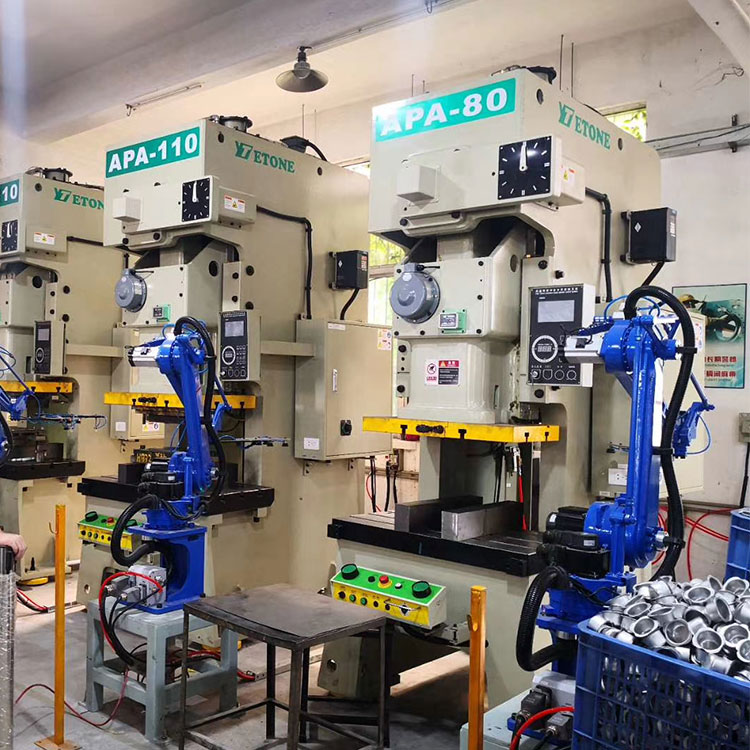

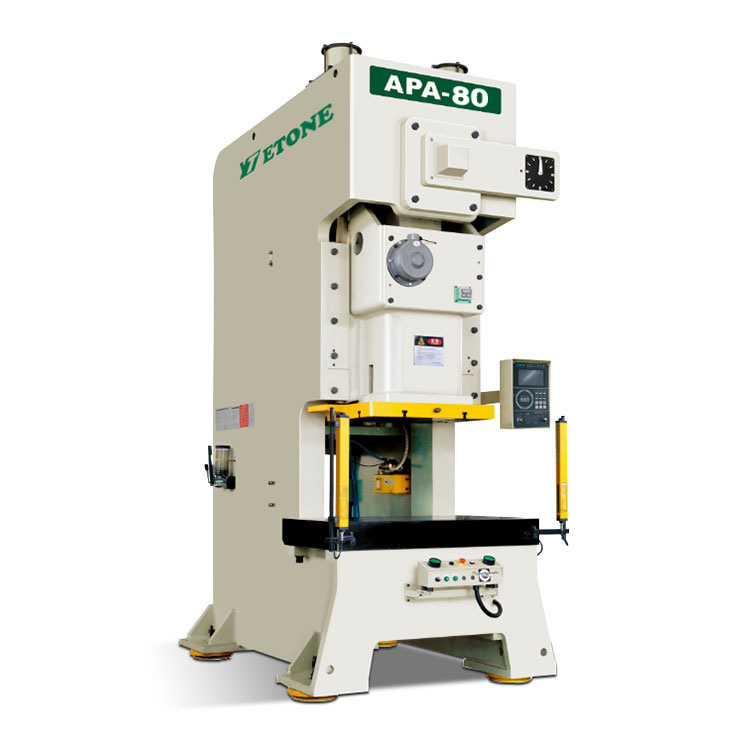

 APA-80: 80 tons, C- frame single crankpower press.APA-110: 110 tons, C- frame single crank mechanical press.We have the capacity from 25 tons to 315 tons. And 80 ton press machines are our popular type in factory.



 It can be used in punching, blanking, trimming, bending, shallow drawing and forming processes, and is widely used in national defense, aviation, automobiles, tractors, motors, electrical appliances, bearings, Instruments, agricultural machinery, agricultural tools, bicycles, sewing machines, medical equipment, daily hardware and other departments. In medium and small tonnage of presses, open type presses have been widely used and developed.Bear "Customer first, Excellent first" in mind, we work closely with our shoppers and supply them with efficient and specialist services for Factory made hot-sale China 110 Tons Power Press 80 Tons Press Machine, Trust us and you'll gain far more. Be sure to really feel free of charge to contact us for additional details, we assure you of our best attention at all times. Factory made hot-sale China Press Machine, Stamping Machine, Each customer's satisfactory is our goal. We are looking for long-term cooperation with each customer. To meet this, we keep up our quality and provide extraordinary customer service. Welcome to our company, we are expecting to cooperate with you.



2.80 ton press machine Features:

Super rigid press frame.

High driving torque dry type clutch & brake.

Box type Six-point precision gib.

Low deflection.


3.80 ton press machine Product Parameter:

Name



APA-80

APA-110

APA-160

Model



V type

H type

V type I H type

V type H type

Tonnage

Ton

80

110

160

Rated tonnage point

mm

4

2

6         3

6         13

Variable speed

s.p.m

35-80

80-120

30-60   60-90

20-50  40-70



Stable speed

s.p.m

65

50

35

Stroke

mm

150

70

180      80

200     90

Max Die height

mm

340

380

360      410

400     450

Slideradjustmen

mm

80

80

100

Slide size

mm

560 x420x70

650x470x80

700x550x90

Bolstersize

mm

1000x550x90

1150x600x110

1250x760x140

Die handle hole

mm

50

50

50

Main motor

kw

7.5

11

15

Slider adjustmentdevice

HP

Applied air pressure

kg/cm2

6

6

6

Press precision



GB(JIS)1class

GB(JIS)1class

GB(JIS)1class

Size (LxWxH)

mm

1800x1180 x 280 0

1900x 1300 x 3200

2300x 140x 3650

Die cushion capacity

Ton

3.6

6.3

10

Die cushion stroke

mm

70

80

80

Die cushion effective area

mm2

450x 310

500x350

650x 420
