High Speed Stamping Press

Capacity: 220 tons, 300 tons, 350 tons, 400 tons, 450 tons<.br> Etone manufacturer is a professional high speed stamping press factory in China. These series machines are Straight Side, double Crank with high precision. We have the capacity on 220 ton, 300 ton, 350 tons, 400 tons, 450 tons. With the cheap price and good quality, we are the No. one sales in China.

Send Inquiry

Product Description

High Speed Stamping Press


1.Product Description

APJ series of high speed stamping press is high speed double crank presses designed for the laminated rotors and stators of electric motors. It is maintain a stable and efficiency function of stamping large size stator and rotor, lamination for generator motor and Industrial Motor in large tonnage press area for years with reliable manufacturing experience, scientific engineers team, the positive market feedback and faithful clients.The company keeps to the operation concept "scientific management, high quality and efficiency primacy, customer supreme for Factory For China C-Frame Single Column Hydraulic Press for Bearing with High Speed, If you are interested in almost any of our goods, make sure you feel no cost to call us for more aspects. We hope to cooperate with additional mates from all over the earth. Factory For China C Frame Press, Hydraulic Press Machine, Our continual availability of high grade products in combination with our excellent pre-sale and after-sales service ensures strong competitiveness in an increasingly globalized market. welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.Our mission is usually to turn into an innovative provider of high-tech digital and communication devices by providing worth added design and style, world-class producing, and repair capabilities for Hot Sale for China Factory Precision Stamping Series Adjustable Speed Rotary Tablet Press, As an experienced group we also accept customized orders. The main goal of our company is to build up a satisfying memory for all customers, and establish a long-term win-win business relationship. Hot Sale for China Chemical Press Machine, Tableting Machine, So far our solutions have been exported to east Europe, the Middle East, Southeast, Africa and South America etc. We've 13years specialist sales and purchase in Isuzu parts at home and abroad and the ownership of the modernized electronic Isuzu parts checking systems. We honor our core principal of Honesty in business, priority in service and will do our best to provide our customers with high quality merchandise and excellent service.


2.Features Of High Speed Stamping Press

1. High Rigidity

High rigidity, high precision frame, welded by steel plate, and after heat treatment, eliminate the internal stress of the bed.



2. Balance Of Gravity Center

The transmission center and the center of the whole machine tend to be the same, so as to ensure the accuracy and stability of stamping.



3. Operation Stability And Safety

Clutch/brake devices are highly sensitive, High Speed Precision Lamination Press coupled with international top double solenoid valves and overload protection devices, to ensure the accuracy and safety of punch slider operation and stop.

The adjusting mechanism of slider has high precision, and the adjusting production is safer and faster.



4. High Precision

Crankshaft, gear, gear shaft and other friction parts are hardened and heat treated before grinding. They have high wear resistance and balance, stable performance, and ensure the quality and life of the punch.



5. High Speed Stamping Press Processing Automation

It can be matched with any automatic feeding mechanism to automate production, reduce costs and improve efficiency.



3.High Speed Stamping Press Product Parameter:

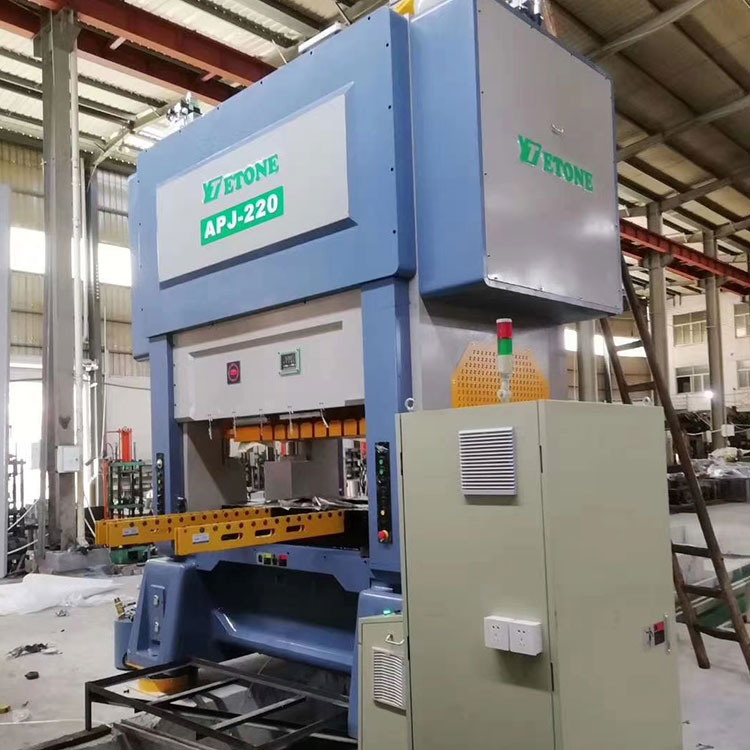

APJ-220

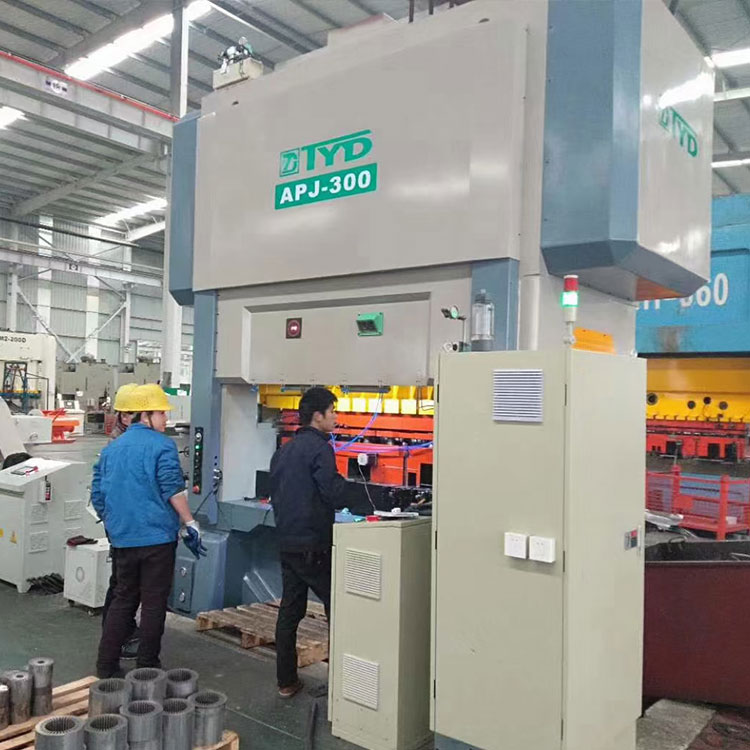

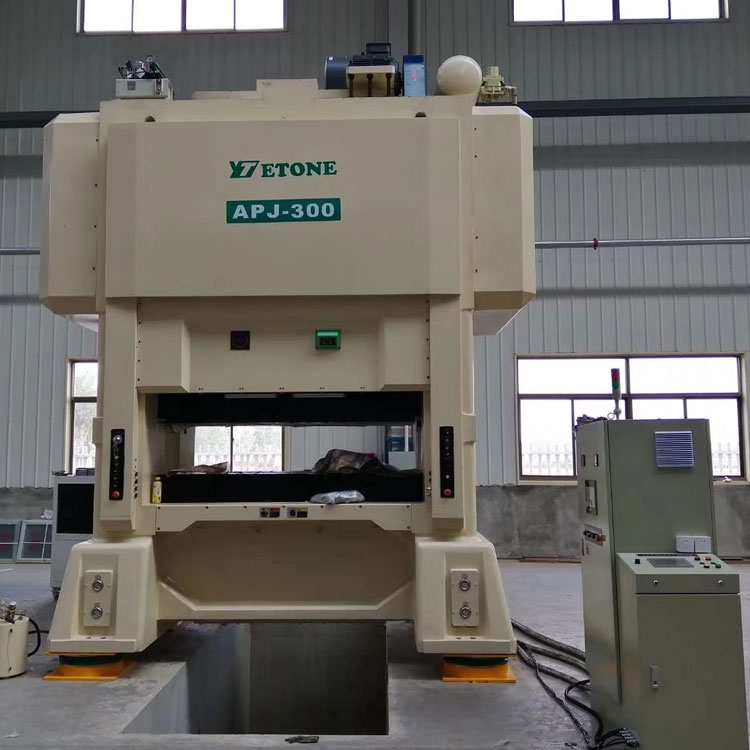

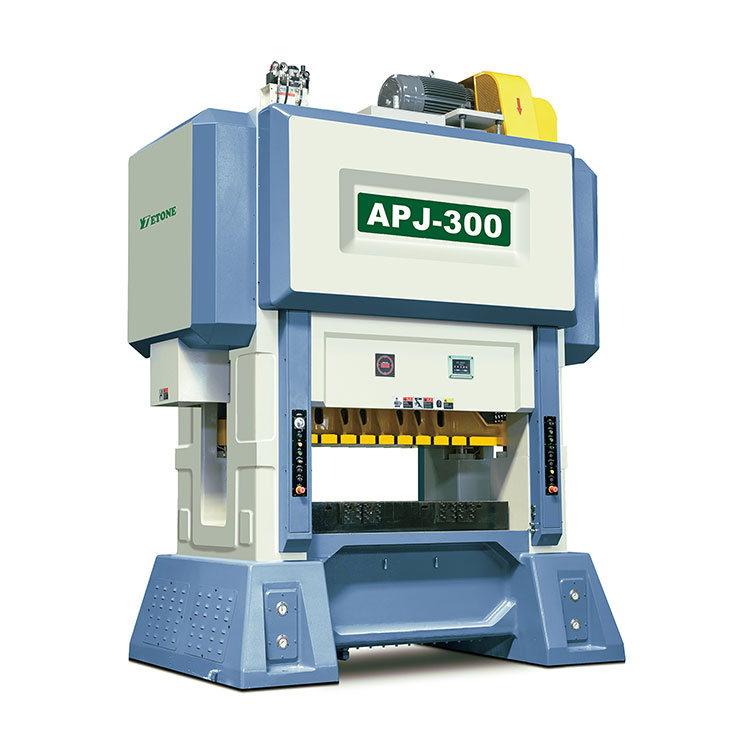

APJ-300

APJ-350

APJ-400

APJ-450

Tonnage

ton

220

300

350

400

450

Travel

mm

30

30

30

30-50

30-50

Number of strokes per minute

s.p.m

150-600

150-400

150-350

150-350

150-300

Lower table size

mm

1900x1000

2200x1000

2400x1000

2800x1200

3000x1200

Blanking hole

mm

1400x300

2000x300

2200x300

2200x400

2500x400

Sliding block area

mm

1900x750

2200x900

2400x900

2800x1100

3000x1100

Die height adjustment stroke

mm

370-420

400-450

400-450

420-480

450-500

Die height adjustment motor

kw

1.5

2.2

2.2

3.7

3.7

Feeding line height

mm

200土50

210土50

210士50

220土50

270土50

Main motor

kw

45

55

55

75

75


4.Machine Standard accessories

1 Lubrication system: apply high pressure oil from crankshaft center(Japan SHOWA)

2 PLC control system: provide cutting signals

3 Bearing: NSK Japan

4 Oil atomizer: SMC Japan

5 Air switch and contactor: Schnede France

6 Oil seal: NOK Japan

7 Auto-balancing system design

8 Electronic slide adjustment system

9 T-Mobile operating table

10 Hydraulic Slide Locking Device

11 Material Ending Detector

12 Inverter:

13 Electric Clutch valve

14 Clutch structure: (OMPI Italy )

15 Relay: Omron

16 Angle and speed showing: TOYO

17 Air pressure joint: ARK Korea

18 Crankshaft: SNCM8,Grinding Guide: AKS Japan

19 Auto-Thermal Balancing in ram/Slider micro inching position

20 Miss-Feed detector

21 Tool box with machine shipping 1



5.Standard accessories:

1 High Speed Gear Feeder(Width Selection: 150/200/300/400)

2 Double heads Uncoiler

3 Straightener with S loop (Width Selection: 200/300/400)

4 Automatic oil device to die

5 Auto Power Die lifer system:

6 Die Arm system:2 pcs

7 Anti-vibration system

8 Chute controller:

9 Die solenoid valve installation system: 10 pcs



6.Optional Accessories

1. Bottom dead detector

2. Quick die clamping device

3. Safety door

4.  Others
