C Frame Power Press

Capacity: 25 tons, 35 tons, 45 tons, 60 tons
C frame Power press can be widely used in production process like drawing, bending, marking, flattening, and trimming. This machine can be operated under safety one stroke or continuous mode.

Send Inquiry

Product Description

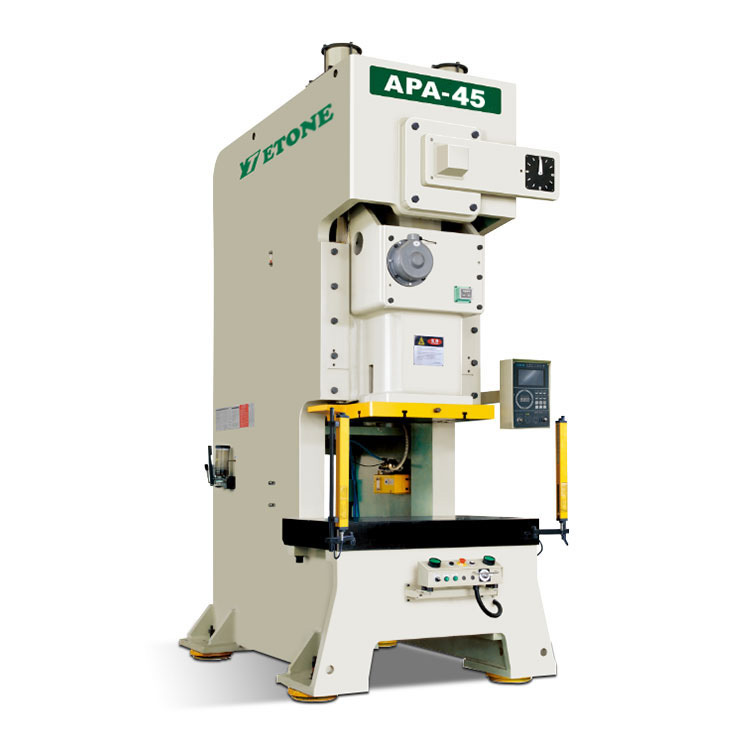

C Frame Power Press


1.C frame Power press Introduction:

APA series: C- frame single crank mechanical press

Capacity: 25 tons~315 tons

C frame power press machine uses crank slide block mechanism as working mechanism, machine driving system passes the movement and energy of electromotor to working mechanism, bringing forge to the die by slide block, in order to let roughcast engender transmutation. The C frame power press is one of the categories of crank presses featuring an open frame, or C frame or C body, C type.Our firm aims to operating faithfully, serving to all of our shoppers , and working in new technology and new machine regularly for Hot-selling China C Frame Power Press Stamping Press Machine Punch Press, Good quality and aggressive prices make our products get pleasure from a significant name all around the word. Hot-selling China Press Machine, Stamping Machine, Our company will continue to adhere to the " superior quality, reputable, the user first " principle wholeheartedly. We warmly welcome friends from all walks of life to visit and give guidance, work together and create a brilliant future!


2.C frame Power press Features:

Super rigid press frame.

High driving torque dry type clutch & brake.

Box type Six-point precision gib.

Low deflection.


3.C frame Power press Product Parameter:

Name



APA-25

APA-35

APA-45

APA-60

Model

 V type


H type

V type I H type

V type H type

V type

H type

Tonnage

Ton

25

35

45

60

Rated tonnage point

mm

3.2

1.6

3.2       1.6

3.2       1.6

Number of strokes per minute

Variable speed

s.p.m

60-140

130-200

40-120 110-180

40-100 100-150

35-90

80-120

Stable speed

s.p.m

110

85

75

65

Stroke

mm

60

30

70        40

80        50

120

Max Die height

mm

200

215

220      235

250      265

310

340

Slider adjustmen

mm

50

55

60

75

Slide size

mm

300 x 220x50

360x250x50

400x300x60

500x360x70

Bolster size

mm

680x300x70

800x400x70

850x440x80

900x500x80

Die handle hole

mm

0  3

8 .1

0  3

8 .1

038.1

050

Main motor

kw

3.7

3.7

5.5

5.5

Slider adjustment device

HP

Manual operation

Applied air pressure

kg/cm2

6

6

6

6

Press precision



GB(JIS)1class

GB(JIS)1class

GB(JIS)1class

GB(JIS)1 class

Size (LxWxH)

mm

1280 x 850 x 2200

1380 x 900 x 2400

1600x950x2500

1600x1000x2800

Die cushion capacity

Ton



2.3

2.3

3.6

Die cushion stroke

mm



50

50

70

Die cushion effective area

mm2



300x230

300x230

350x300
