High Precision Power Press

Capacity: 200 tons, 260 tons, 315 tons
Welcome to buy High Precision Power Press from us. Every request from customers is being replied within 24 hours.

Send Inquiry

Product Description

High Precision Power Press

We're convinced that with joint endeavours, the business between us will bring us mutual benefits. We are able to guarantee you products high quality and competitive value for China Cheap price China 650 Ton High Precision Cross Pin Type Joint Making Power Press, Because we stay with this line about 10 years. We got most effective suppliers support on excellent and cost. And we had weed out suppliers with poor high quality. Now several OEM factories cooperated with us too. China Cheap price China Machine, Machinery, You can let us know your idea to develop unique design for your own model to prevent too much similar parts in the market! We will offer our best service to satisfy all your needs! Please contact us right away!

1.High Precision Power Press Introduction:

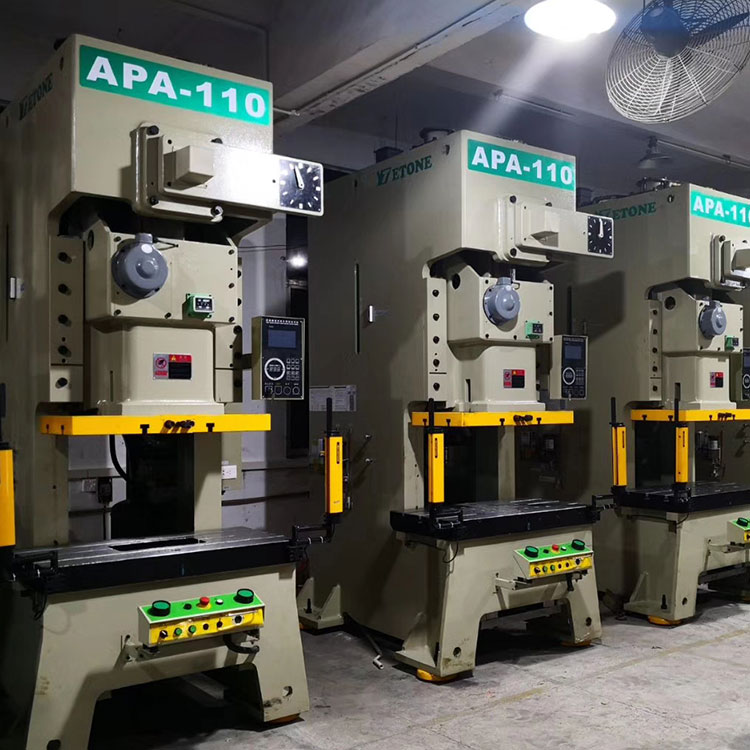

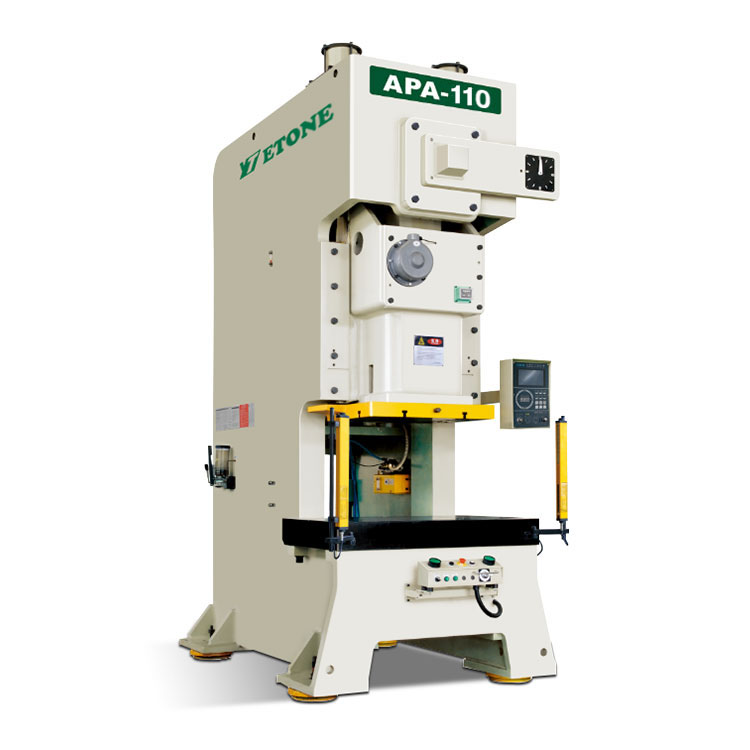

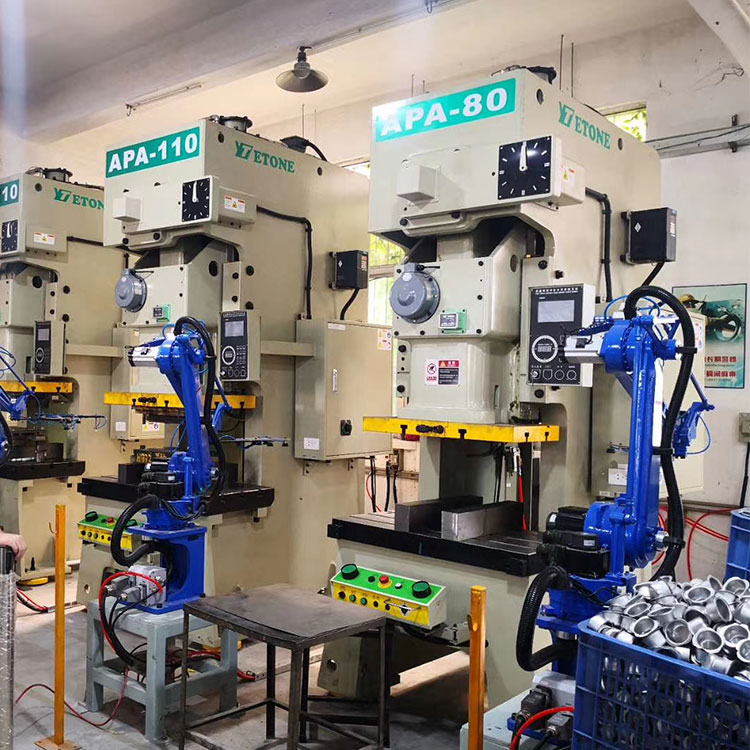

 APA series:High Precision Power Press machine/ C frame high precision press machine / Mechanical press machine.

 Superior rigidity of frame structure to realize minimum frame deflection.

 Long and precise six-point, box type gibs enhance off-center loading resistance and prolongs die life.

 Pneumatic dry type friction clutch & brake, low noise, long service life to ensure reliable safety and flexible action.

 Hydraulic overload protector is equiped as a standard feature to cause emergency stop instantly to ensure maximum protection for the press and die.



2.High Precision Power Press Standard accessories:

Oil hydraulic overload protection device

Manual slider adjustment device (15 tons to60 tons)

Electric slider adjustment device (60 tons to 315 tons)

Mechanical die height indicator(15 tons to60 tons)

Electric die height indicator (60 tons to 315 tons)

Slider and die balancing device

Air source connector

Secondary drop protection device

Air blast device

Maintenance tool and toolbox

Instruction manual

Frequency converter

Power outlet

Shockproof support

7 inch touch screen, electronic cam

Angle display

Pre- cut and pre-break function


3.High Precision Power Press Product Parameter:

Name



APA-200

APA-260

APA-315

Model



V type

H type

V type I H type

V type H type

Tonnage

Ton

200

260

315

Rated tonnage point

mm

4

2

6         3

6         13

Variable speed

s.p.m

35-80

80-120

30-60   60-90

20-50  40-70



Stable speed

s.p.m

65

50

35

Stroke

mm

150

70

180      80

200     90

Max Die height

mm

340

380

360      410

400     450

Slider adjustmen

mm

80

80

100

Slide size

mm

560 x420x70

650x470x80

700x550x90

Bolster size

mm

1000x550x90

1150x600x110

1250x760x140

Die handle hole

mm

50

50

50

Main motor

kw

7.5

11

15

Slider adjustment device

HP

Applied air pressure

kg/cm2

6

6

6

Press precision



GB(JIS)1class

GB(JIS)1class

GB(JIS)1class

Size (LxWxH)

mm

1800x1180 x 280 0

1 900x 1300 x 3200

2300x 140x 3650

Die cushion capacity

Ton

3.6

6.3

10

Die cushion stroke

mm

70

80

80

Die cushion effective area

mm2

450x 310

500x350

650x 420
