C Type Punch Press Machine

Capacity: 200 tons, 260 tons, 315 tons
C Type Punch Press Machine:15 tons, 25 tons, 35 tons, 45 tons, 60 tons, 80 tons, 110 tons, 125 tons, 160 tons, 200 tons, 260 tons, 315 tons.

Send Inquiry

Product Description

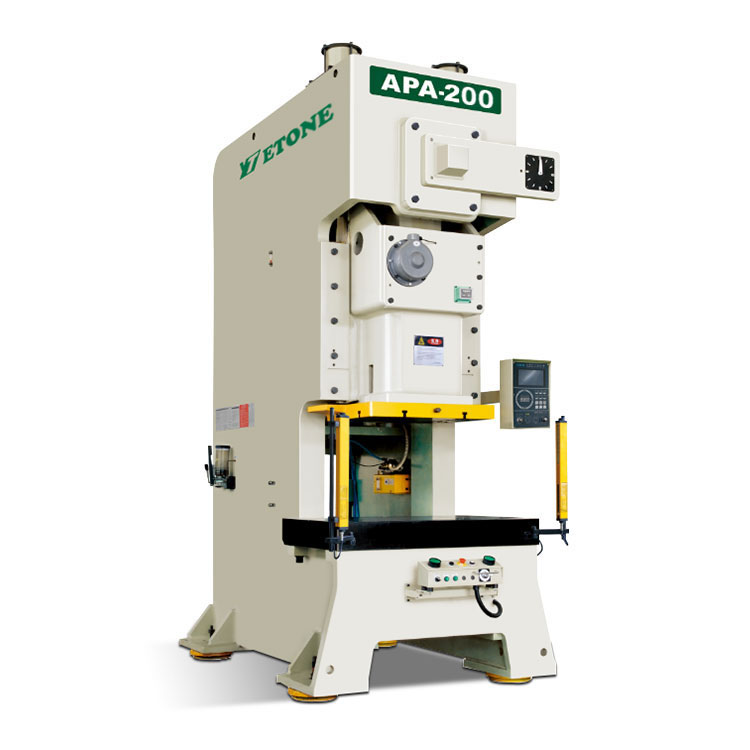

C Type Punch Press Machine



1.C typepunch press machine Introduction:

 C typepunch press machine can be widely used in production process like drawing, bending, marking, flattening, and trimming.C type punch press machine can be operated under safety one stroke or continuous mode.We've got quite possibly the most state-of-the-art production gear, experienced and qualified engineers and workers, acknowledged top quality handle systems along with a friendly expert gross sales group pre/after-sales support for Hot sale China New Type GMP Standard Single Punch Tablet Press Rotary Tablet Press Machine High Speed and Quality, We are going to continually strive to boost our company and offer the top high quality goods with aggressive costs. Any inquiry or comment is extremely appreciated. Be sure to make contact with us freely. Hot sale China Tablet Press Machine, Salt Block Press Machine, We care about every steps of our services, from factory selection, product development & design, price negotiation, inspection, shipping to aftermarket. We have now implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our goods have been strictly inspected before shipment. Your Success, Our Glory: Our aim is to help customers realize their goals. We're making great efforts to achieve this win-win situation and sincerely welcome you to join us.


 Now, Etone becomes the best mechanical press machine manufacture in China. Good quality and good service is our aim. We have our agents in different countries and areas, such as Korea, India, Indonesia, Malaysia, Thailand, Vietnam, Russia, Brazil, USA and so on.


Standard accessories

Optional accessories

Inverter



Touch pad



Preset counter



Electrical cam

Electrical automatic lubrication system

Hydraulic over-load protector

Pneumatic die cushion device

Handle Slide adjust device(APA below 60)

Foot switch

Electric Slide adjust device(APA 60 above)

Quick die change device(die lifter, clamp and die arm)

Mechanical Die height indicator( APA below 60)

Slide knock-out device

Electric  Die height indicator(APA 60 below)

Die room light

Balance device

Photo-electronic safety device

Crank angle indicator

Feeder

Electric stroke counter

Uncoiler

Air source receptacle

Straightener

Against over-run safety device

Mechanism hand

Misfeed detection consent



Power socket



Maintenance tool box



Operation Manual



Anti vibration press mount





2.C type punch press machine Product Parameter:

Name



APA-200

APA-260

APA-315

Model



V type

H type

V type I H type

V type H type

Tonnage

Ton

200

260

315

Rated tonnage point

mm

6

13

6          3

6        13

Variable speed

s.p.m

20-50

40-70

20-50   40-70

20-50  50-70



Stable speed

s.p.m

35

35

35

Stroke

mm

200

90

200      90

200     100

Max Die height

mm

400

450

450      500

460     510

Slider adjustmen

mm

100

100

110

Slide size

mm

700 x550x90

850x630x90

950x700x90

Bolster size

mm

1250x760x140

1350x820x150

1500x860x160

Die handle hole

mm

50

65

65

Main motor

kw

15

18

22

Slider adjustment device

HP

Applied air pressure

kg/cm2

6

6

6

Press precision



GB(JIS)1class

GB(JIS)1class

GB(JIS)1class

Size (LxWxH)

mm

2300x1400 x 3650

2300x 1500 x 3800

2615x 1790x 4075

Die cushion capacity

Ton

10

10

10

Die cushion stroke

mm

80

80

80

Die cushion effective area

mm2

650x 420

650x420

710x 480
