H Frame High Precision Press

Capacity: 110 tons, 160 tons, 200 tons, 260 tons,300 tons, 400 tons, 500 tons.
You can rest assured to buy H frame high precision press from our factory and we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

H Frame High Precision Press

Sticking to the principle of "Super Quality, Satisfactory service" ,We are striving to be a good business partner of you for IOS Certificate China Xpd Straight Side High Precision Single Crank Steel Frame Power Press (80ton-315ton), Welcome all nice buyers communicate specifics of products and ideas with us!! IOS Certificate China Single Crank Steel Frame Power Press, Steel Frame Power Press, In order to meet the increasing requirement of customers both home and aboard, we'll keep carrying forward the enterprise spirit of "Quality, Creativity, Efficiency and Credit" and strive to top the current trend and lead fashion. We warmly welcome you to visit our company and make cooperation.

1.H frame high precision press Introduction:

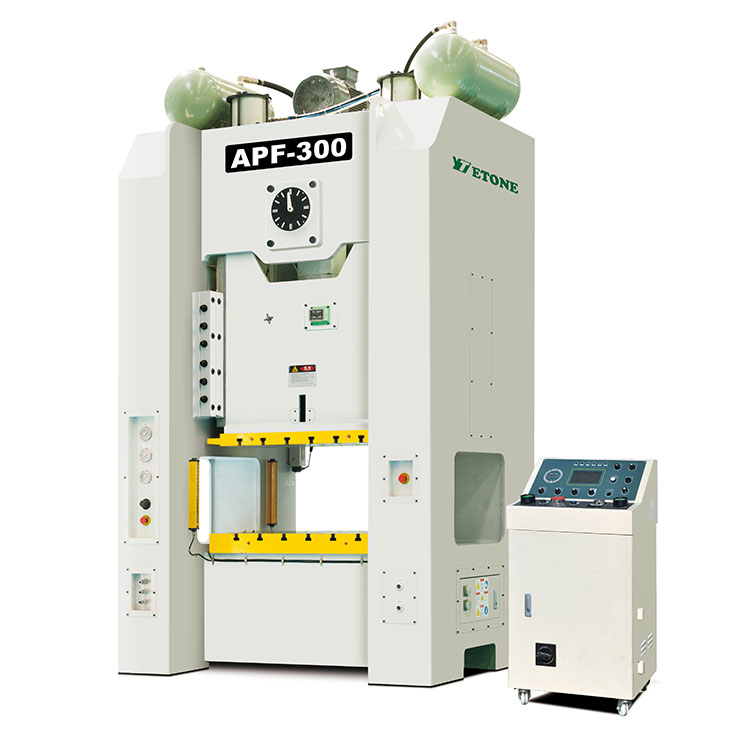

Our APF series is H frame high precision press, straight slide stamping press machine.It has the characteristics of small change of mold height, small deviation of dynamic center, small amount of stamping deformation, and low noise of blanking cutting. The fixed-lock six-sided guide rail and high-rigidity body realize high-precision stamping of the product, and the life of the mold is also greatly improved.


2.H frame high precision press Features:

 Safety loop device of two-hand operation requires synchronous press within 0.2s to get operated, protecting the safety of personnel.


 Overload automatic protection device can instantly detect exceeded pressure and make an emergency stop within 0.01s, avoiding press, tool and personnel injury.


 Cam failure detection circuit can effectively avoid dangerous accidents caused by cam wear.


 The use of photoelectric safety device can make the machine emergency stop if detecting foreign matter into dangerous zone, avoiding danger.


 The interconnected control loop consisting of imported solenoid valve and cam device ensures correct movement of clutch, impossible occurrence of continuous stamping.


3.H frame high precision press Product Parameter:





APF- 110

APF-160

APF-200



APF-260



APF-300



APF-400

APF-500

Model



V type IH type

V type IH type

V type IH type



V type IH type



V type IH type



V type IH type

V type

Tonnage

ton

110

160

200


260


300


400

500

Rated tonnage point

mm

6

3

6

3

6

3

7

3.5

7

3.5

g

4.5

10

Stroke length

mm

180

80

200

90

200

100

250

150

300

170

300

200

250

 Number of strokes

s.p.m

30--60

60-90

20-50

40-70

20-50

50-70

20-40

40-50

20-40

35-50

15-25

20-35

20-30

s.p.m

50

35

35

30

30

20

20

Maximum die height

mm

360I410

460I510

460I510

500I550

550I615

550I600

550

Slider adjustment volume

mm

80

100

110

120

120

150

120

Upper table size

mm

1000x550x70

1100x600x90

1200x650x90

1300x700x100

1400x800x110

1500x850x110

1400x800

Lower table size

mm

1100x600x110

1200x800x140

1300x820x160

1400x840x180

1500x950x200

1600x1CXXlx200

1500x1000

Side opening

mm

700x500

850x600

880x650

900x700

1000x750

1CXXlx750

900x800

Main motor

kwxp

11x4

15x4

18x4

22x4

30x4

40x4

55x4

Slider adustment motor

kwxp

0.4x4

0.75x4

0.75x4

1.5x4

1.5x4

2.2x4

3x4

Applied air pressure

kg/cm2

6

I

6

6

I

6

6I 6

6I 6

6I 6

6I 6

6

Press precon



GB/T 23 28 0 - 2009  [ JIS 1class]
