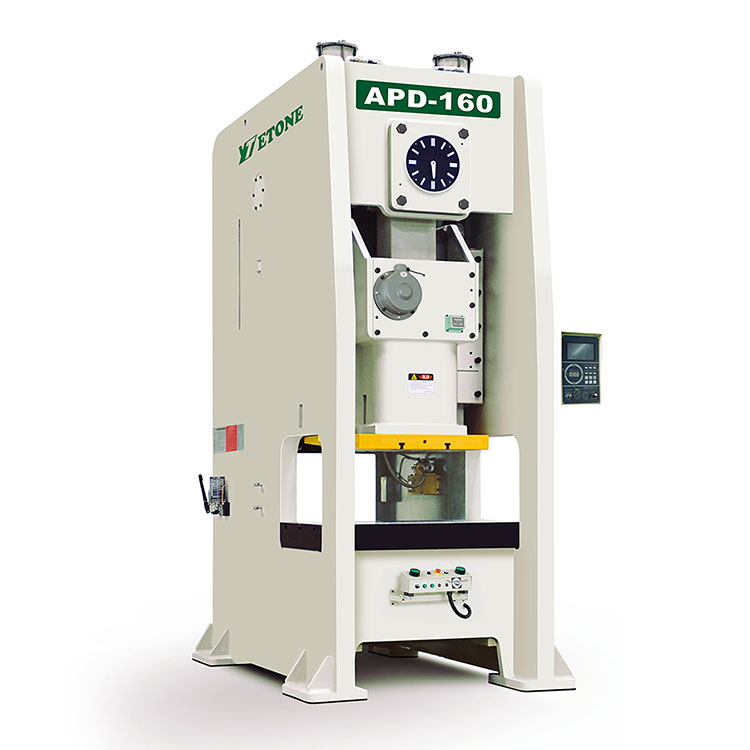

Straight Slide Power Press

Capacity: 80 tons, 110 tons,160 tons, 200 tons, 260 tons
Our APD series is Straight Slide Power Press machine,mechanical power press, double crank press, open type double crank,H type press machine, which are very popular in our factory.

Send Inquiry

Product Description

Straight Slide Power Press



1.Straight Slide Power Press Introduction:

Straight Slide Power Press is designed to resist deflection, and provide accurate pressings, and longer die life secured. The heavy, one-piece welded frame is stress-relieved and stands solid to comply with various stamping application.We provide fantastic power in excellent and growth,merchandising,revenue and promoting and operation for Special Design for China Straight Slide Stamping Press Machine Power Press Metal Punch Press, We are going to empower people by communicating and listening, Setting an example to others and learning from experience. Special Design for China Press Machine, Straight Slide Stamping Press Machine, With top quality products, great after-sales service and warranty policy, we win trust from many overseas partner, many good feedbacks witnessed our factory's growth. With full confidence and strength, welcome customers to contact and visit us for future relationship.


2.Straight Slide Power Press Features:

 Quick response overload protector.

 Box type six-point gib.

 Bolt-to-the-bolster Die cushion.

 The superior rigidity provides the frame deflection to keep die height and dynamic off-center load deviation with a minimized amount.


3.Straight Slide Power Press Product Parameter:




APD-80

APD-110

APD-160

APD-200

APD-260

Model



V type IH type

V type IH type

V type H  type

V type IH type

V type IH type

Tonnage

Ton

80

110

160

200

260

Rated tonnage point

mm

4

2

6

3

6

3

6

3

7

3.5

Stroke

mm

150

70

180

80

200

90

200

100

250

150

Max Die height

mm

340

380

360

410

460

510

460

510

500

550

Number of strokes per minute

s.pm

35-80

80-120

30-60

60-90

20-50

40-70

20-50

50-70

20-40

40-50

Slider adjustment volume

mm

80

80

100

110

120

Upper table size

mm

560x420x70

650x470x80

700x550x90

850x630x90

950x700x100

Lower table size

mm

930x550x90

1090x600x110

1190x800x140

1390x820x160

1550x840x180

Main motor

kwp

7.5

11

15

18

22

Slider adjustment mechanism

HP

Electrical driving

Applied air pressure

kg/cm2

6                         6                          6                         6                          6

Press(LxWxH)

mm

1300x1890x3000 1420x1985x3200 1600x2200x3500 1750x2500x3900 2780x1850x4470

Press precision



GB(JIS)1 class

Die cushion capacity

Ton

3.6

6.3

10

14

14

Die cushion stroke length

mm

70

80

80

100

100

Die cushion effective area

mm2

450x310

500x350

650x420

710x480

810x480
