Product Description

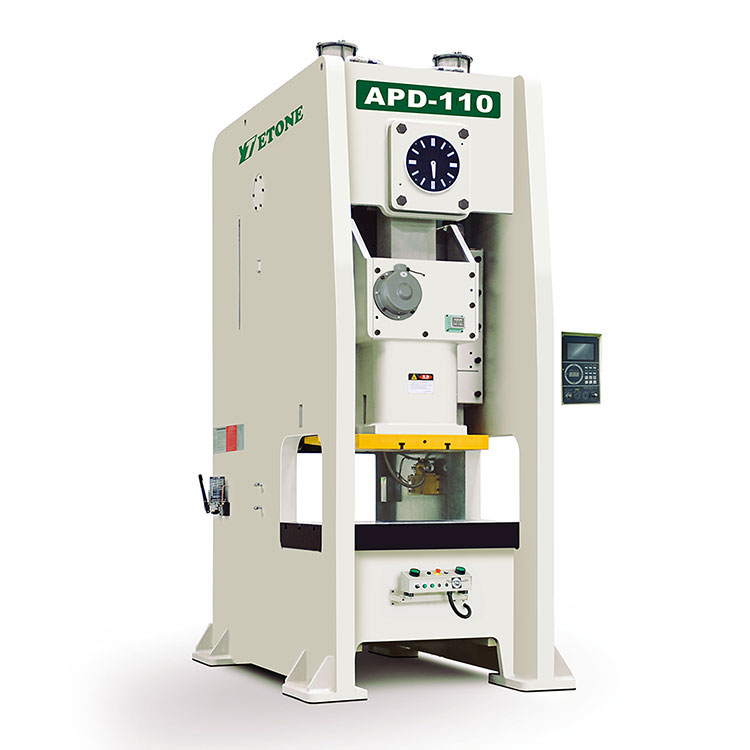

D Type Power Press

1.Product Description

Our APD series is D type power press. It is designed to resist deflection, and provide accurate pressings, and longer die life secured. The heavy, one-piece welded frame is stress-relieved and stands solid to comply with various stamping application. Besides domestic market, our machines are also exported to South Korea, India, Indonesia, Thailand, Vietnam, Malaysia, Russia, UK, Brain, Turkey, Iran, Mexico, USA and so on.

2.Features:

Quick response overload protector.

Box type six-point gib.

Bolt-to-the-bolster Die cushion.

The superior rigidity provides the frame deflection to keep die height and dynamic off-center load deviation with a minimized amoun

3.Product Parameter

		APD-80		APD-110		APD-160			APD-200		APD-250
Model		V type I H type		V type I H type		V type H type			V type I H type		V type I H type
Tonnage	Ton	80		110		160			200		260
Rated tonnage point	mm	4	2	6	3	6	3	6		3	7	3.5
Stroke	mm	150	70	180	80	200	90	200		100	250	150
Max Die height	mm	340	380	360	410	460	510	460		510	500	550
Number of strokes per minute	s.pm	35-80	80-120	30-60	60-90	20-50	40-70	20-50		50-70	20-40	40-50
Slider adjustment volume	mm	80		80		100		110			120
Upper table size	mm	560x420x70		650x470x80		700 x550x90		850x630x90			950x700x100
Lower table size	mm	930x550x90		1090x600x110		1190x800x140		1390x820 x160			1550x840x180
Main motor	kwp	7.5		11		15		18			22
Slider adjustment mechanism	HP	Electrical driving
Applied air pressure	kg/cm2	6 6 6 6 6
Press (LxWxH)	mm	1300x1890 x3 000 1420x1985x3200 1600x2200x3500 1750x2500x3900 2780x1850x4470
Press precision		GB(JIS)1 class
Die cushion capacity	Ton	3.6		6.3		10		14			14
Die cushion stroke length	mm	70		80		80		100			100
Die cushion effective area	mm2	450x310		500x350		650x420		710x480			810x480
