Punch Presses

Capacity: 80 tons, 110 tons,160 tons, 200 tons, 260 tons
As the professional manufacture, we would like to provide you Punch Presses. And we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

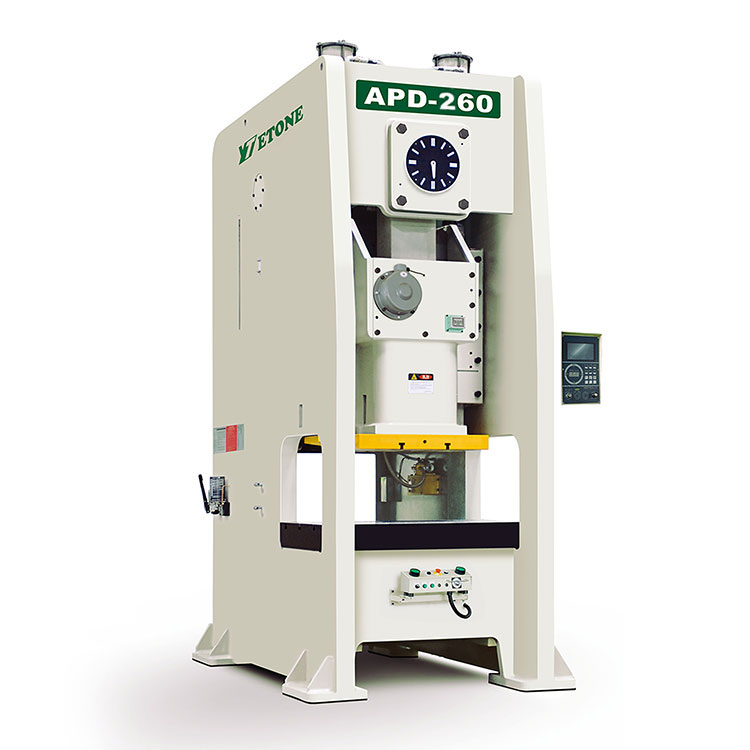

Punch Presses



1.Punch Presses Introduction:

Our APD series is a punch press,semi-closed crank stamp press machine. It is very popular in China. It has the characteristics of small change of mold height, small deviation of dynamic center, small amount of stamping deformation, and low noise of blanking cutting. The fixed-lock six-sided guide rail and high-rigidity body realize high-precision stamping of the product, and the life of the mold is also greatly improved.Our growth depends around the superior machines, exceptional talents and consistently strengthened technology forces for ODM Supplier China Lowest Price Tdp Series Pill Press Single Punch Salt Tablet Press Machine Tdp-1.5 Single Punch Tablet Press, The team of our firm together with the use of cutting-edge technologies delivers impeccable quality merchandise supremely adored and appreciated by our prospects around the world. ODM Supplier China Pill Press, Tablet Pill Press, We are going to initiate the second phase of our development strategy. Our company regards "reasonable prices, efficient production time and good after-sales service" as our tenet. If you are interested in any of our products or would like to discuss a custom order, make sure you feel free to contact us. We're looking forward to forming successful business relationships with new clients around the world in the near future.


2.Punch Presses Features:

 Built-in transmission construction, no gear or flywheel injury to personnel


 Emergency button can instantly stop the machine at any time, well handling unexpected accidents.


 Safety loop device of two-hand operation requires synchronous press within 0.2s to get operated, protecting the safety of personnel.


 Overload automatic protection device can instantly detect exceeded pressure and make an emergency stop within 0.01s, avoiding press, tool and personnel injury.


 Cam failure detection circuit can effectively avoid dangerous accidents caused by cam wear.


 The use of photoelectric safety device can make the machine emergency stop if detecting foreign matter into dangerous zone, avoiding danger.


 The interconnected control loop consisting of imported solenoid valve and cam device ensures correct movement of clutch, impossible occurrence of continuous stamping.


 When brake pad wears causing long time braking and angle deflection, machine can automatically detect and give signal to avoid danger.


 Electrical box’s power-off device (when open the door, power will be off) ensures the safety of electrical maintenance.


 The safety net setting on the back of the machine guarantees the safety of personnel.


3.Punch Presses Product Parameter:




APD-80

APD-110

APD-160

APD-200

APD-260

Model



V type IH type

V type IH type

V type H type

V type IH type

V type IH type

Tonnage

Ton

80

110

160

200

260

Rated tonnage point

mm

4

2

6

3

6

3

6

3

7

3.5

Stroke

mm

150

70

180

80

200

90

200

100

250

150

Max Die height

mm

340

380

360

410

460

510

460

510

500

550

Number of strokes per minute

s.pm

35-80

80-120

30-60

60-90

20-50

40-70

20-50

50-70

20-40

40-50

Slider adjustment volume

mm

80

80

100

110

120

Upper table size

mm

560x420x70

650x470x80

700x550x90

850x630x90

950x700x100

Lower table size

mm

930x550x90

1090x600x110

1190x800x140

1390x820x160

1550x840x180

Main motor

kwp

7.5

11

15

18

22

Slider adjustment mechanism

HP

Electrical driving

Applied air pressure

kg/cm2

6                        6                          6                         6                          6

Press(LxWxH)

mm

1300x1890x3000 1420x1985x3200 1600x2200x3500 1750x2500x3900 2780x1850x4470

Press precision



GB(JIS)1 class

Die cushion capacity

Ton

3.6

6.3

10

14

14

Die cushion stroke length

mm

70

80

80

100

100

Die cushion effective area

mm2

450x310

500x350

650x420

710x480

810x480
