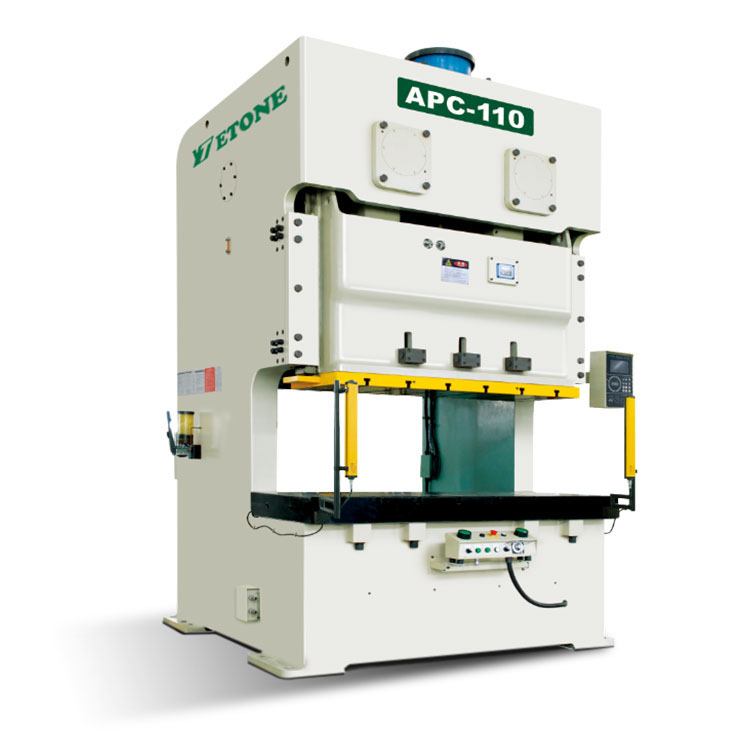

Double Crank Stamping Punch Press

Capacity: 110 tons, 160 tons,200 tons, 250 tons
The following is an introduction to Double crank stamping punch press, I hope to help you better understand Double crank stamping punch press. Welcome new and old customers to continue to cooperate with us to create a better future together!

Send Inquiry

Product Description

Double Crank Stamping Punch Press

We thinks what clients think, the urgency of urgency to act from the interests of a purchaser position of principle, allowing for greater top quality, decrease processing costs, price ranges are much more reasonable, won the new and aged prospects the support and affirmation for China Wholesale China High Precision Double Crank Precision Power Stamping Punch Machine Mechanical Press with Decoiler Straightene and Nc Servo Feeder Machine, Customers' benefit and gratification are normally our biggest intention. Remember to get in touch with us. Give us a probability, provide you with a surprise. China Wholesale China Power Presses, Punch Machine, We always hold on the company's principle "honest, expert, effective and innovation", and missions of: let all drivers enjoy their driving at night, allow our employees can realize their value of life, and to be stronger and service more people. We're determined to become the integrator of our product market and one-stop service provider of our product market.

1.Double crank stamping punch press Introduction:

C-Frame Double Crank Power Presses/Double crank stamping punch press. APC Series is designed to resist deflection, and provide accurate pressings, and longer die life secured. The heavy, one-piece welded steel frame is stress relieved and designed to provide a stable base for the APC Series presse


2.Double crank stamping punch press Product Parameter:





APC-110

APC-160

APC-200

APC-250

Model



V type

IH type

V type H type

V type I H type

V type

IH type

Tonnage

Ton

110

160

200

250

Rated tonnage point

mm

5

3

6

3

6

3

7

3.5

Stroke length

mm

180

110

200

130

250

150

280

170

Stroke

sp.m

35-65

50-100

30-55

40-85

25-45

35-70

20-35

30-60

Max Die height

mm

400

435

450

485

500

550

550

605

Slider adjustment volume

mm

100

100

120

120

Slide table size

mm

1800X650X130

2000X760X150

2400X840X170

2700X900X170

Bolster table size

mm

1400X500X70

1600X550X70

1850X650X95

2100X700X95

Main motor

kW

11

15

18 5

22

Supply air pressure

kg/cm2

5

5

5



5

Precision



JIS(CNS) 1class

Die cushion type



Two plate & two cylinders

Capacity

Ton

3.6X2

6.3X2

10X2



14X2

Air pressure

kg/cm2

6.5

7.2

6.75

9

Stroke

mm

70

70

80

100

Die cushion top plate area

mm2


350X235X2

41QX260X2

540X350X


640x 470x2
