Precision Power Press
We get pleasure from an incredibly good popularity amongst our customers for our superb merchandise high-quality, aggressive rate as well as the most effective support for Professional Factory for China 80ton Single Point C Frame High Precision Power Press (25ton~400ton), Welcome to develop the effectively and extensive standing business relationships with our business to produce a glorious long run jointly. customers' satisfaction is our everlasting pursuit! Professional Factory for China Pneumatic Press, Punching Press, Our company, is always regarding quality as company' s foundation, seeking for development via high degree of credibility , abiding by iso9000 quality management standard strictly , creating top-ranking company by spirit of progress-marking honesty and optimism.

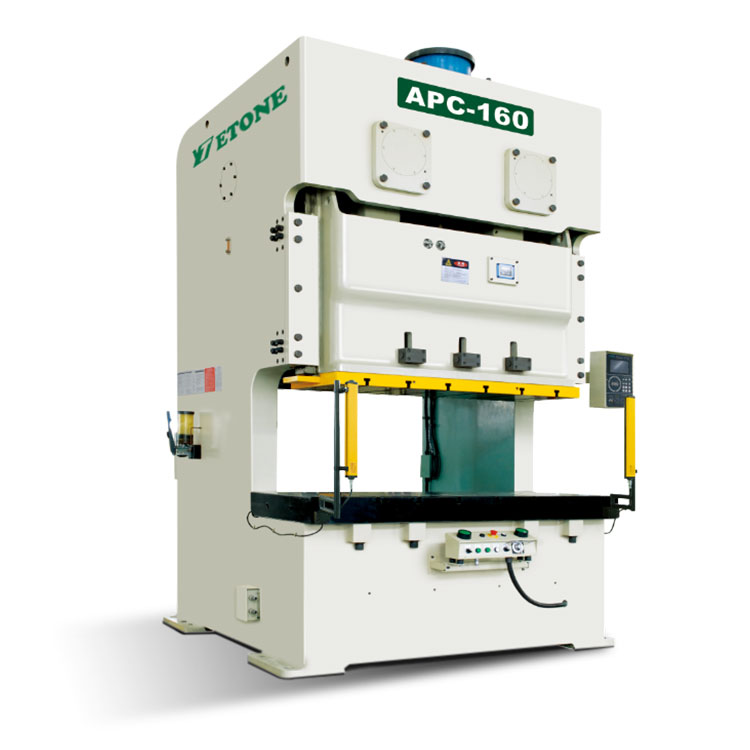

1.Precision Power Press Introduction:
precision power press is designed to resist deflection, and provide accurate pressings, and longer die life secured.
2.Precision Power Press Features:
Super rigid steel frame.
High driving torque wet clutch & brake.
Fast response hydraulic overload protection.
Unique slide knockout device.
Parallelism maintained during offset loads.
Long life and no nosie
3.Precision Power Press Product Parameter:
|
|
APC-110 |
APC-160 |
APC-200 |
APC-250 |
||||||
Model |
|
V type |
IH type |
V type H type |
V type I H type |
V type |
IH type |
||||
Tonnage |
Ton |
110 |
160 |
200 |
250 |
||||||
Rated tonnage point |
mm |
5 |
3 |
6 |
3 |
6 |
3 |
7 |
3.5 |
||
Stroke length |
mm |
180 |
110 |
200 |
130 |
250 |
150 |
280 |
170 |
||
Stroke |
sp.m |
35-65 |
50-100 |
30-55 |
40-85 |
25-45 |
35-70 |
20-35 |
30-60 |
||
Max Die height |
mm |
400 |
435 |
450 |
485 |
500 |
550 |
550 |
605 |
||
Slider adjustment volume |
mm |
100 |
100 |
120 |
120 |
||||||
Slide table size |
mm |
1800X650X130 |
2000X760X150 |
2400X840X170 |
2700X900X170 |
||||||
Bolster table size |
mm |
1400X500X70 |
1600X550X70 |
1850X650X95 |
2100X700X95 |
||||||
Main motor |
kW |
11 |
15 |
18 5 |
22 |
||||||
Supply air pressure |
kg/cm2 |
5 |
5 |
5 |
|
5 |
|||||
Precision |
|
JIS 1 class |
|||||||||
Die cushion type |
|
Two plate & two cylinders |
|||||||||
Capacity |
Ton |
3.6X2 |
6.3X2 |
10X2 |
|
14X2 |
|||||
Air pressure |
kg/cm2 |
6.5 |
7.2 |
6.75 |
9 |
||||||
Stroke |
mm |
70 |
70 |
80 |
100 |
||||||
Die cushion top plate area |
mm2 |
|
350X235X2 |
41QX260X2 |
540X350X |
|
640x 470x2 |
