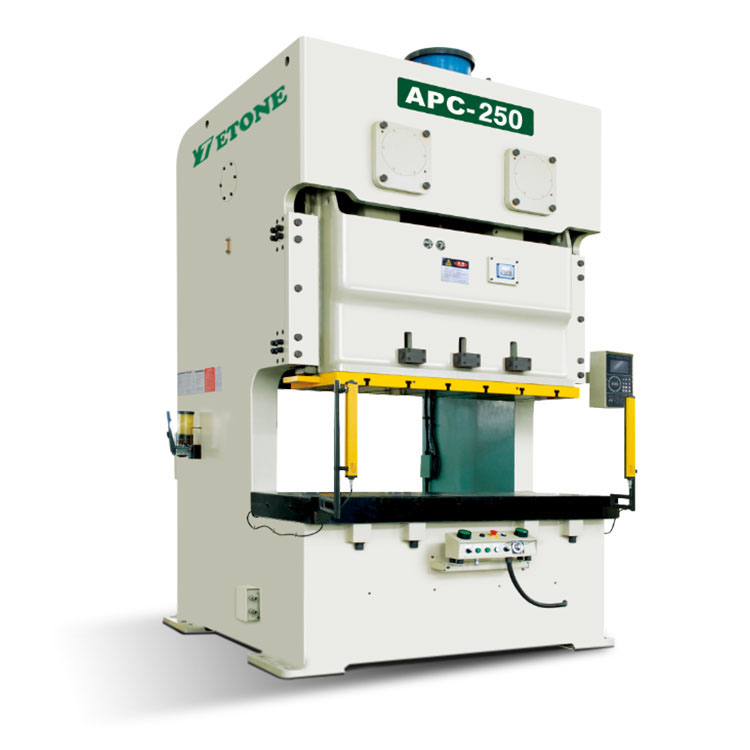

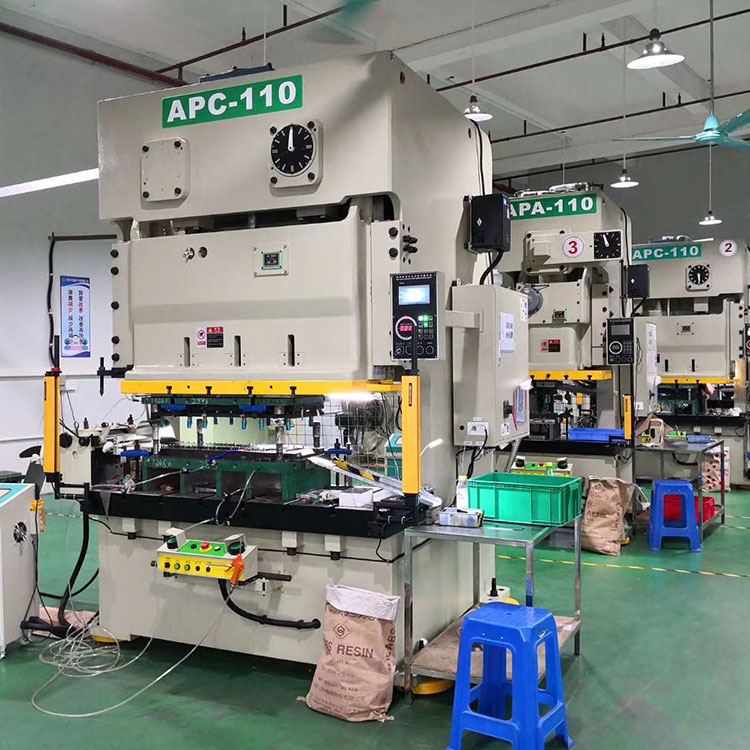

Mechanical Power Press

Capacity: 110 tons, 160 tons,200 tons, 250 tons
Our APC series is mechanical power press, double crank press, open type double crank, C type press machine, which are very popular in our factory.

Send Inquiry

Product Description

Mechanical Power Press

"Sincerity, Innovation, Rigorousness, and Efficiency" may be the persistent conception of our organization for that long-term to establish jointly with customers for mutual reciprocity and mutual gain for Wholesale OEM China Monthly Deals Gantry Type Mechanical Automatic Power Press with Uncoiler Feeder, We're prepared to present you with the most effective ideas over the designs of the orders in a qualified way for those who need. While in the meantime, we continue to keep on producing new technologies and building new designs so as to help make you ahead from the line of this small business. Wholesale OEM China Power Press, Mechanical Power Press, Our faith is to be honest first, so we just supply high quality items to our customers. Definitely hope that we can be business partners. We believe that we can establish long time business relationship with each other. You can contact us freely for more information and pricelist of our merchandise !

1.Mechanical power press Introduction:

Mechanical power press is designed to resist deflection, and provide accurate pressings, and longer die life secured. The heavy, one-piece welded steel frame is stress relieved and designed to provide a stable base for the APC Series presses. Mechanical power presses are widely used in national defense, aviation, automobiles, tractors, motors, electrical appliances, bearings, Instruments, agricultural machinery, agricultural tools, bicycles, sewing machines, medical equipment, daily hardware and other departments.


2.Mechanical power press Product Parameter:





APC-110

APC-160

APC-200

APC-250

Model



V type

IH type

V type H type

V type I H type

V type

IH type

Tonnage

Ton

110

160

200

250

Rated tonnage point

mm

5

3

6

3

6

3

7

3.5

Stroke length

mm

180

110

200

130

250

150

280

170

Stroke

sp.m

35-65

50-100

30-55

40-85

25-45

35-70

20-35

30-60

Max Die height

mm

400

435

450

485

500

550

550

605

Slider adjustment volume

mm

100

100

120

120

Slide table size

mm

1800X650X130

2000X760X150

2400X840X170

2700X900X170

Bolster table size

mm

1400X500X70

1600X550X70

1850X650X95

2100X700X95

Main motor

kW

11

15

18 5

22

Supply air pressure

kg/cm2

5

5

5



5

Precision



JIS 1 class

Die cushion type



Two plate & two cylinders

Capacity

Ton

3.6X2

6.3X2

10X2



14X2

Air pressure

kg/cm2

6.5

7.2

6.75

9

Stroke

mm

70

70

80

100

Die cushion top plate area

mm2


350X235X2

41QX260X2

540X350X


640x 470x2
