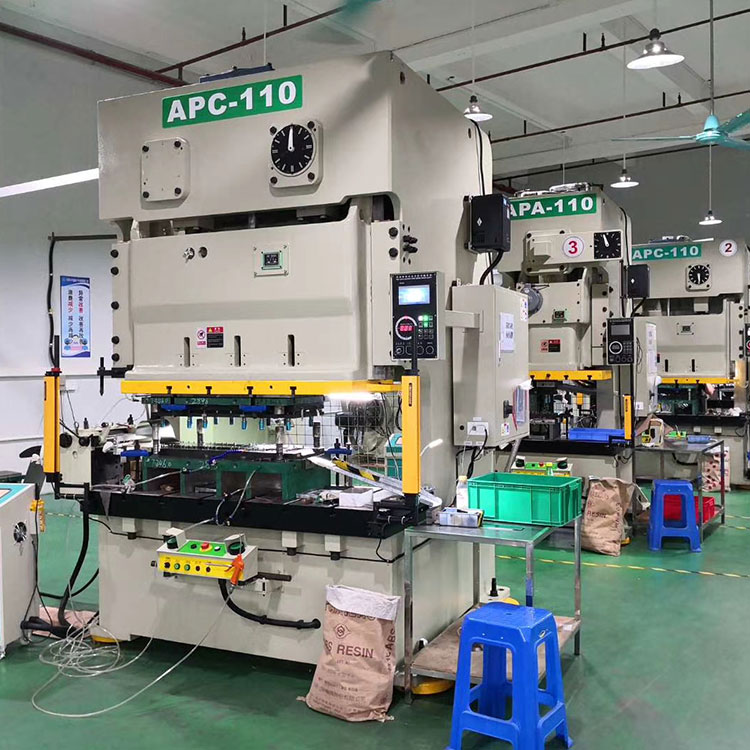

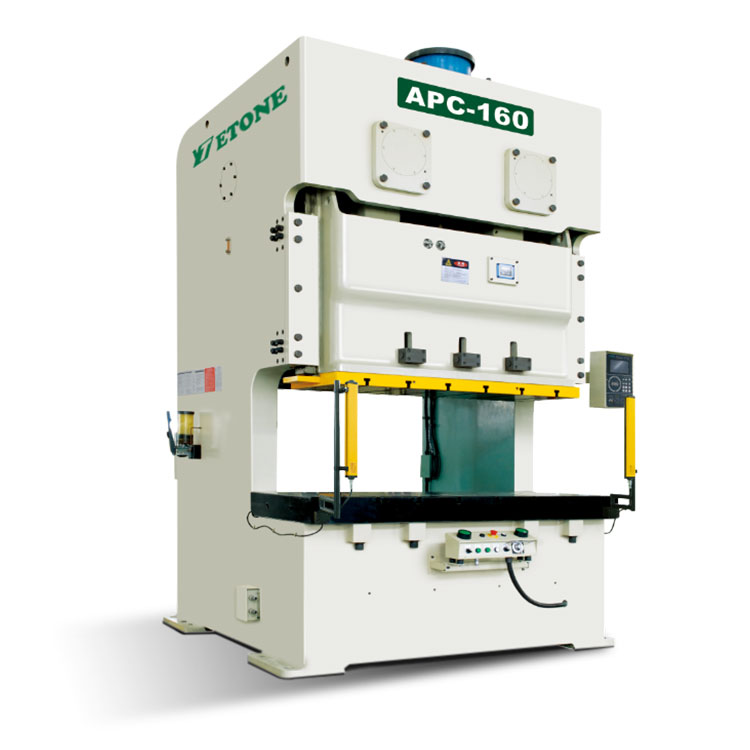

1.Double Crank Press Introduction:
The high-rigidity frame design, welded with high-quality steel and processed by the process of eliminating internal stress. Improve the precision stability and reliability of the machine. The center of the drive is aligned with the center of double crank press to ensure accurate and stable punching.
2.Double Crank Press Feature:
◉ To ensure the relative stability of the machine operation, the symmetrical two slide rails and the balancer device design are applied.
◉ The die precision may be up to 0.1 mm and is safe, convenient and reliable.
◉ The crankshaft, the gear set, the connecting rod, etc. are processed by oxidation and grinding, and have extremely high comprehensiveness and wear resistance performance;
◉ Highly sensitive and reliable clutch/brake device and internationally leading double solenoid valve and overload protection device are applied to ensure the accuracy and safety of the operation and stop of the press slide;
◉ The machine structure is designed reasonably, which is convenient for automatic production, reducing costs and improving efficiency;
◉ Advanced design concept, low noise, low consumption and energy saving
◉ Oil hydraulic overload protection device
◉ Manual slider adjustment device (TP60 and below 60)
◉ Electric slider adjustment device (TP60 above)
◉ Mechanical die height indicator (TP60 and below 60)
◉ Electric die height indicator
Standard configuration
◉ Slider and die balancing device
◉ Air source connector
◉ Secondary drop protection device
◉ Air blast device
◉ Maintenance tool and tool box
◉ Instruction manual
◉ Frequency converter
◉ Power outlet
◉ Shockproof support
◉ 7 inch touch screen, electronic cam
◉ Angle display
◉ Tonnage measurement and protection device
◉ Bottom dead center detection
◉ Pre-cut and pre-break function
2.Double Crank Press Product Parameter:
|
|
APC-110 |
APC-160 |
APC-200 |
APC-250 |
||||||
Model |
|
V type |
IH type |
V type H type |
V type I H type |
V type |
IH type |
||||
Tonnage |
Ton |
110 |
160 |
200 |
250 |
||||||
Rated tonnage point |
mm |
5 |
3 |
6 |
3 |
6 |
3 |
7 |
3.5 |
||
Stroke length |
mm |
180 |
110 |
200 |
130 |
250 |
150 |
280 |
170 |
||
Stroke |
sp.m |
35-65 |
50-100 |
30-55 |
40-85 |
25-45 |
35-70 |
20-35 |
30-60 |
||
Max Die height |
mm |
400 |
435 |
450 |
485 |
500 |
550 |
550 |
605 |
||
Slider adjustment volume |
mm |
100 |
100 |
120 |
120 |
||||||
Slide table size |
mm |
1800X650X130 |
2000X760X150 |
2400X840X170 |
2700X900X170 |
||||||
Bolster table size |
mm |
1400X500X70 |
1600X550X70 |
1850X650X95 |
2100X700X95 |
||||||
Main motor |
kW |
11 |
15 |
18 5 |
22 |
||||||
Supply air pressure |
kg/cm2 |
5 |
5 |
5 |
|
5 |
|||||
Precision |
|
JIS 1 class |
|||||||||
Die cushion type |
|
Two plate & two cylinders |
|||||||||
Capacity |
Ton |
3.6X2 |
6.3X2 |
10X2 |
|
14X2 |
|||||
Air pressure |
kg/cm2 |
6.5 |
7.2 |
6.75 |
9 |
||||||
Stroke |
mm |
70 |
70 |
80 |
100 |
||||||
Die cushion top plate area |
mm2 |
350X235X2 |
41QX260X2 |
540X350X |
640x 470x2 |
