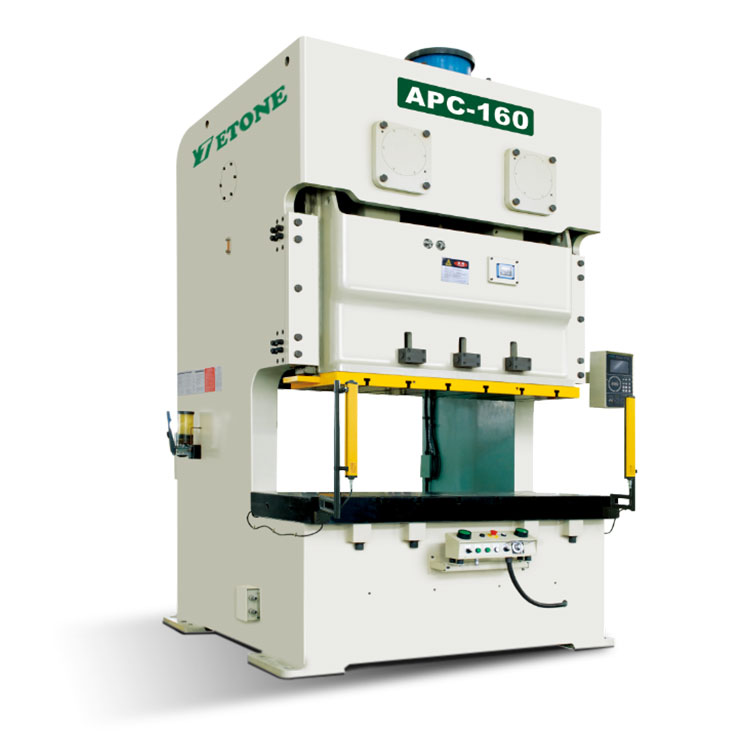

C Type Press Machine

Capacity: 110 tons, 160 tons,200 tons, 250 tons
The APC series of open type double crank C type press machine is one of the best selling products in our factory. We have the power press at 110 tons, 160 tons, 200 tons, 250 tons.

Send Inquiry

Product Description

C Type Press Machine


1.C type press machine Introduction:

 Category: C type press machine, C(Gap) Frame Crank Type Mechanical Stamping Press, Mechanical Power Press.We take "customer-friendly, quality-oriented, integrative, innovative" as objectives. "Truth and honesty" is our administration ideal for factory low price China 100t C-Type Press Machine for Rubber or Plastic Molding, We warmly welcome domestic and abroad clients send inquiry to us ,we've got 24hours performing workforce! Anytime anywhere we have been still here being your partner. factory low price China Rubber Vulcanizer, Hydraulic Rubber Vulcanizer, By adhering to the principle of "human oriented, winning by quality", our company sincerely welcomes merchants from at home and abroad to visit us, talk business with us and jointly create a brilliant future.


 C type press machine drive gears, shafts, etc. are all enclosed at the top of the machine frame. After the body is welded with Q235-B, it will be tempered to eliminate the internal stress of the material.


 The main motor is mounted on the upper part of the frame, and the flywheel support, flywheel, clutch are installed on the rear side of the frame, and the flywheel is subjected to the assembly work after being tested for dynamic balance before assembly.


2.C type press machine Product Parameter:





APC-110

APC-160

APC-200

APC-250

Model



V type

IH type

V type H type

V type I H type

V type

IH type

Tonnage

Ton

110

160

200

250

Rated tonnage point

mm

5

3

6

3

6

3

7

3.5

Stroke length

mm

180

110

200

130

250

150

280

170

Stroke

sp.m

35-65

50-100

30-55

40-85

25-45

35-70

20-35

30-60

Max Die height

mm

400

435

450

485

500

550

550

605

Slider adjustment volume

mm

100

100

120

120

Slide table size

mm

1800X650X130

2000X760X150

2400X840X170

2700X900X170

Bolster table size

mm

1400X500X70

1600X550X70

1850X650X95

2100X700X95

Main motor

kW

11

15

18 5

22

Supply air pressure

kg/cm2

5

5

5



5

Precision



JIS 1 class

Die cushion type



Two plate & two cylinders

Capacity

Ton

3.6X2

6.3X2

10X2



14X2

Air pressure

kg/cm2

6.5

7.2

6.75

9

Stroke

mm

70

70

80

100

Die cushion top plate area

mm2


350X235X2

41QX260X2

540X350X


640x 470x2
