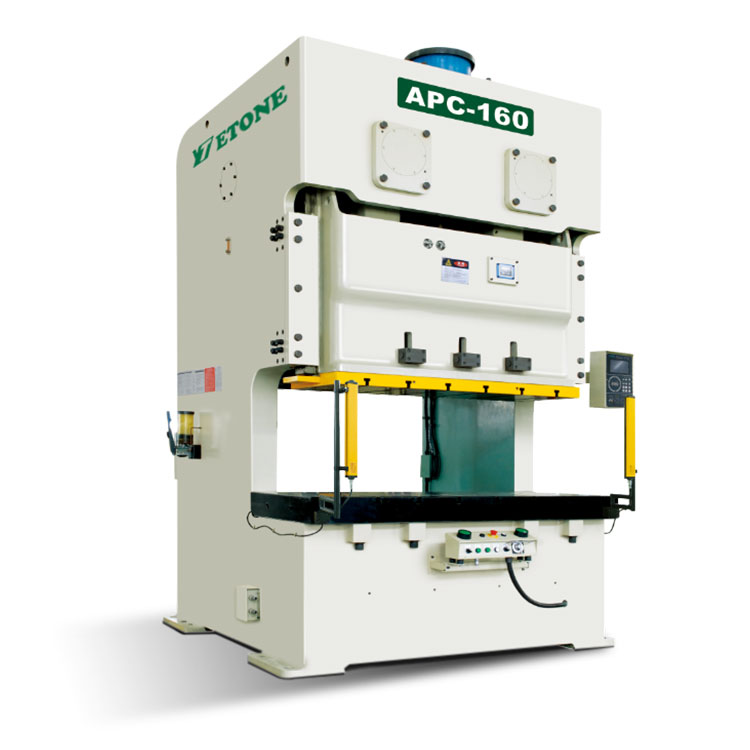

  • Flywheel Press Machine - 0 Flywheel Press Machine - 0

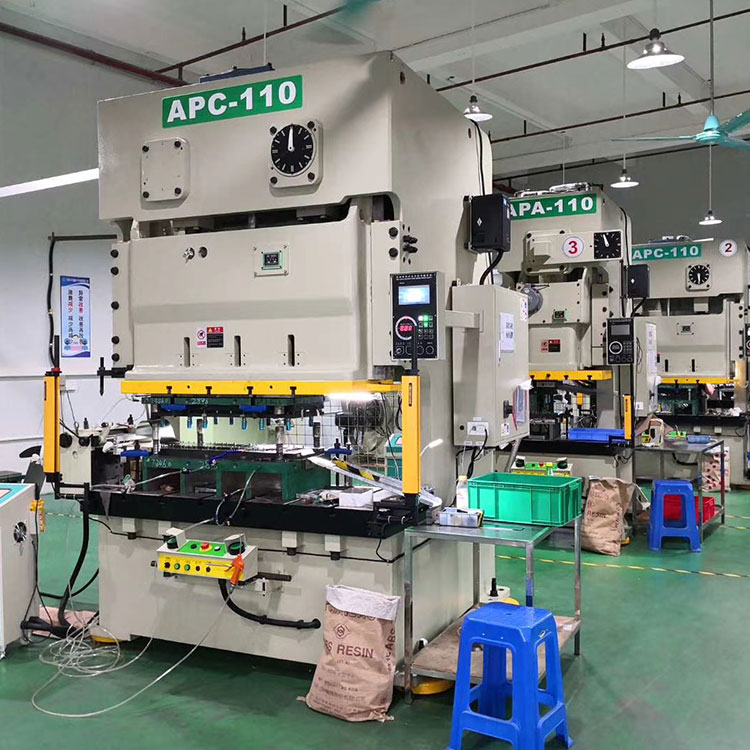

  • Flywheel Press Machine - 1 Flywheel Press Machine - 1

Flywheel Press Machine

The APC series of open type Flywheel Press Machine. It is one of the best selling products in our factory. We have the power press at 110 tons, 160 tons, 200 tons, 250 tons. The main drive gears, shafts, etc. are all enclosed at the top of the machine frame. After the body is welded with Q235-B, it will be tempered to eliminate the internal stress of the material.

Send Inquiry

Product Description

Flywheel Press Machine

"Sincerity, Innovation, Rigorousness, and Efficiency" would be the persistent conception of our enterprise with the long-term to establish together with clients for mutual reciprocity and mutual benefit for China New Product China Straight Side Double Crank with Flywheel Power Press, We welcome new and previous shoppers from all walks of existence to contact us for long term organization relationships and acquiring mutual success! China New Product China Punching Machine, Power Press, We welcome customers from all over the world come to discuss business. We supply high quality products and solutions, reasonable prices and good services. We hope to sincerely build business relationships with customers from at home and abroad, jointly striving for a resplendent tomorrow.

1.Product Description

Category: Flywheel Press Machine

The APC series of open type Flywheel Press Machine. It is one of the best selling products in our factory. We have the power press at 110 tons, 160 tons, 200 tons, 250 tons. The main drive gears, shafts, etc. are all enclosed at the top of the machine frame. After the body is welded with Q235-B, it will be tempered to eliminate the internal stress of the material. The main motor is mounted on the upper part of the frame, and the flywheel support, flywheel, clutch, etc. are installed on the rear side of the frame, and the flywheel is subjected to the assembly work after being tested for dynamic balance before assembly.


2.Product Parameter





APC-110

APC-160

APC-200

APC-250

Model



V type

I H type

V typeH type

V typeI H type

V type

I H type

Tonnage

Ton

110

160

200

250

Rated tonnage point

mm

5

3

6

3

6

3

7

3.5

Stroke length

mm

180

110

200

130

250

150

280

170

Stroke

sp.m

35-65

50-100

30-55

40-85

25-45

35-70

20-35

30-60

Max Die height

mm

400

435

450

485

500

550

550

605

Slider adjustment volume

mm

100

100

120

120

Slide table size

mm

1800 X 650 X 130

2000 X 760 X 150

2400 X 840 X 170

2700 X 900 X 170

Bolster table size

mm

1400 X 500 X 70

1600 X 550 X 70

1850 X 650 X 95

2100 X 700 X 95

Main motor

kW

11

15

18 5

22

Supply air pressure

kg/ cm2

5

5

5



5

Precision



JIS 1 class

Die cushion type



Two plate & two cylinders

Capacity

Ton

3.6 X 2

6.3 X 2

10 X 2



14 X 2

Air pressure

kg/ cm2

6.5

7.2

6.75

9

Stroke

mm

70

70

80

100

Die cushion top plate area

mm2

350

X 235 X 2

41Q X 260 X 2

540 X 350 X

640

x 470 x 2
