High Precision Stamping Power Press

Capacity:35 tons, 45 tons, 60 tons
High precision stamping power press 60 tons, 80 tons, 110 tons, 125 tons.

Send Inquiry

Product Description

High Precision Stamping Power Press

The key to our success is "Good Merchandise High-quality, Reasonable Cost and Efficient Service" for Hot New Products China Xpa-200ton Die Stamping CNC C Type High Precision Pneumatic Punch Power Press, Customer pleasure is our main objective. We welcome you to set up business relation with us. For even further information, make sure you will not wait to contact with us. Hot New Products China Power Press, Punch Power Press, Our solutions have national accreditation requirements for qualified, good quality products, affordable value, was welcomed by individuals all over the world. Our products will continue to improve inside the order and appear forward to cooperation with you, Definitely should any of those goods be of curiosity to you, be sure to letus know. We'll be satisfied to supply you a quotation up on receipt of the detailed needs.

1.High precision stamping power press Introduction:

 High precision stamping power press 60 tons, 80 tons, 110 tons, 125 tons.

 Our High precision stamping power presses are mainly used in sheet metal’s cutting, forming and deep drawing for metal products. They are used in home appliance, stationary, hand tool, household hardware, computers parts, cars and motor parts etc.



2.High precision stamping power press Features:

 Improve forming technology by performing slide on precise position to better facilitate the material-forming processing.

 Apply both servo drive motor and link mechanism reducing motor capacity instead of clutch & brake which generate energy loss from friction and racing idle, so as to achieve energy-saving and operating cost reduction.

 Extend die life significantly by setting freely velocity along forming curve, reducing impact and vibration on die.


3.Multiple Applications
High Efficiency
High Precision
High Flex.



Standard accessories

Optional accessories

Inverter



Touch pad



Preset counter



Electrical cam

Electrical automatic lubrication system

Hydraulic over-load protector

Pneumatic die cushion device

Handle Slide adjust device(APA below 60)

Foot switch

Electric Slide adjust device(APA 60 above)

Quick die change device(die lifter, clamp and die arm)

Mechanical Die height indicator( APA below 60)

Slide knock-out device

Electric  Die height indicator(APA 60 below)

Die room light

Balance device

Photo-electronic safety device

Crank angle indicator

Feeder

Electric stroke counter

Uncoiler

Air source receptacle

Straightener

Against over-run safety device

Mechanism hand

Misfeed detection consent



Power socket



Maintenance tool box



Operation Manual



Anti vibration press mount

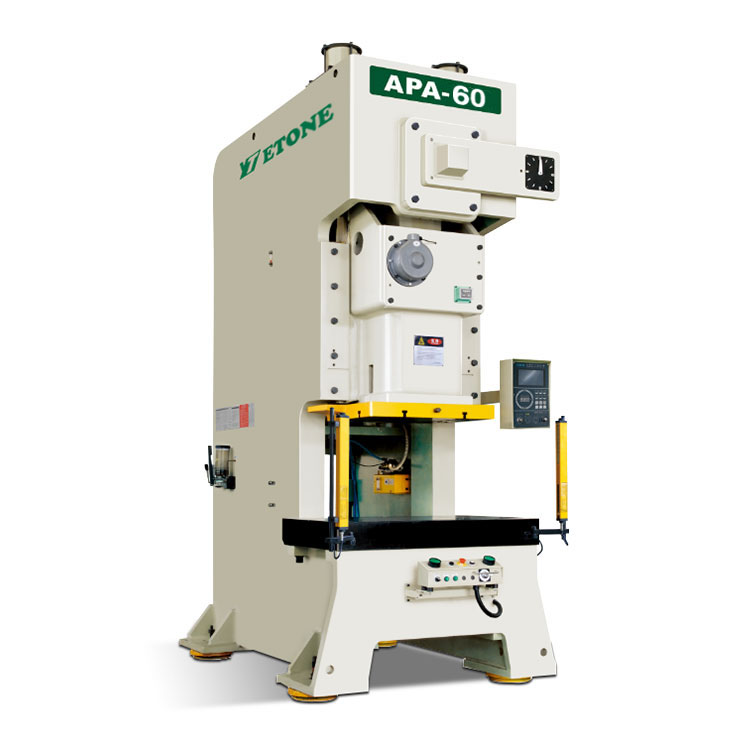

4.High precision stamping power press Product Parameter:

Name



APA-35

APA-45

APA-60

Model



V type

H type

V type I H type

V type H type

Tonnage

Ton

35

45

60

Rated tonnage point

mm

6

13

6          3

6        13

Variable speed

s.p.m

20-50

40-70

20-50   40-70

20-50  50-70



Stable speed

s.p.m

35

35

35

Stroke

mm

200

90

200      90

200     100

Max Die height

mm

400

450

450      500

460     510

Slider adjustmen

mm

100

100

110

Slide size

mm

700 x550x90

850x630x90

950x700x90

Bolster size

mm

1250x760x140

1350x820x150

1500x860x160

Die handle hole

mm

50

65

 65

Main motor

kw

15

18

22

Slider adjustment device

HP

Applied air pressure

kg/cm2

6

6

6

Press precision



GB(JIS)1class

GB(JIS)1class

GB(JIS)1class

Size (LxWxH)

mm

2300x1400 x 3650

2300x 1500 x 3800

2615x 1790x 4075

Die cushion capacity

Ton

10

10

10

Die cushion stroke

mm

80

80

80

Die cushion effective area

mm2

650x 420

650x420

710x 480
