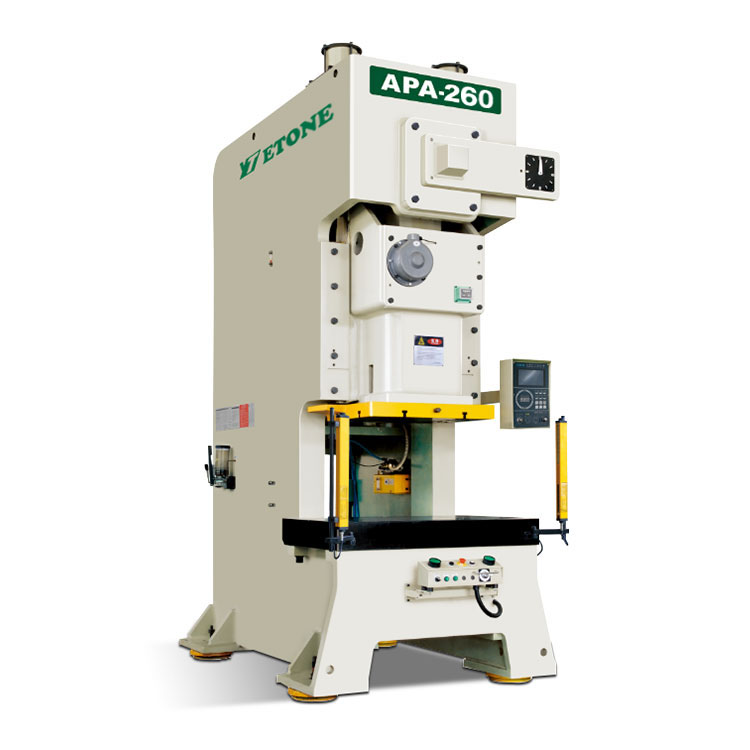

Single Crank Stamping Press

Capacity: 160 tons, 200 tons, 260 tons
APA series:High precision steel frame press machine/ Single crank stamping press / Mechanical press machine

Send Inquiry

Product Description

Single Crank Stamping Press


1.Single crank stamping press Introduction:

Our single crank stamping press tonnage from 15ton to 400 tons. Our single crank stamping press  is strictly tested on various quality parameters by our expert quality controllers. With the efforts and dedication of our professionals along with the trust and support of our valued customers, our single crank stamping press has surpassed many of our competitors in terms of quality and services.Now, we have our agents in different countries and areas, such as Korea, India, Indonesia, Malaysia, Thailand, Vietnam, Russia, Brazil, USA and so on.Our firm sticks on the theory of "Quality will be the life in the enterprise, and status could be the soul of it" for factory low price China Inclinable Mechanical Power Press for Metal Punching and Stamping, All merchandise occur with high quality and great after-sales products and services. Market-oriented and customer-oriented are what we have been being right after. Sincerely anticipate Win-Win cooperation ! factory low price China J23 Punching, J23 Punching Press Machine, Our company always provides good quality and reasonable price for our customers. In our efforts, we already have many shops in Guangzhou and our solutions have won praise from customers worldwide. Our mission has always been simple: To delight our customers with best quality hair merchandise and deliver on time. Welcome new and old customers to contact us for the future long term business relationships.



Standard accessories

Optional accessories

Inverter



Touch pad



Preset counter



Electrical cam

Electrical automatic lubrication system

Hydraulic over-load protector

Pneumatic die cushion device

Handle Slide adjust device(APA below 60)

Foot switch

Electric Slide adjust device(APA 60 above)

Quick die change device(die lifter, clamp and die arm)

Mechanical Die height indicator( APA below 60)

Slide knock-out device

Electric  Die height indicator(APA 60 below)

Die room light

Balance device

Photo-electronic safety device

Crank angle indicator

Feeder

Electric stroke counter

Uncoiler

Air source receptacle

Straightener

Against over-run safety device

Mechanism hand

Misfeed detection consent



Power socket



Maintenance tool box



Operation Manual



Anti vibration press mount





2.Single crank stamping press Parameter:

Name



APA-160

APA-200

APA-260

Model



V type

H type

V type I H type

V type H type

Tonnage

Ton

160

200

260

Rated tonnage point

mm

6

13

6          3

6        13

Variable speed

s.p.m

20-50

40-70

20-50   40-70

20-50  50-70



Stable speed

s.p.m

35

35

35

Stroke

mm

200

90

200      90

200     100

Max Die height

mm

400

450

450      500

460     510

Slider adjustmen

mm

100

100

110

Slide size

mm

700 x550x90

850x630x90

950x700x90

Bolster size

mm

1250x760x140

1350x820x150

1500x860x160

Die handle hole

mm

50

65

 65

Main motor

kw

15

18

22

Slider adjustment device

HP

Applied air pressure

kg/cm2

6

6

6

Press precision



GB(JIS)1class

GB(JIS)1class

GB(JIS)1class

Size (LxWxH)

mm

2300x1400 x 3650

2300x 1500 x 3800

2615x 1790x 4075

Die cushion capacity

Ton

10

10

10

Die cushion stroke

mm

80

80

80

Die cushion effective area

mm2

650x 420

650x420

710x 480
