C Type Power Press

Hydraulic overload protector is equiped as a standard feature to cause emergency stop instantly to ensure maximum protection for the press and die.Welcome to buy C Type Power Press from us.

Send Inquiry

Product Description

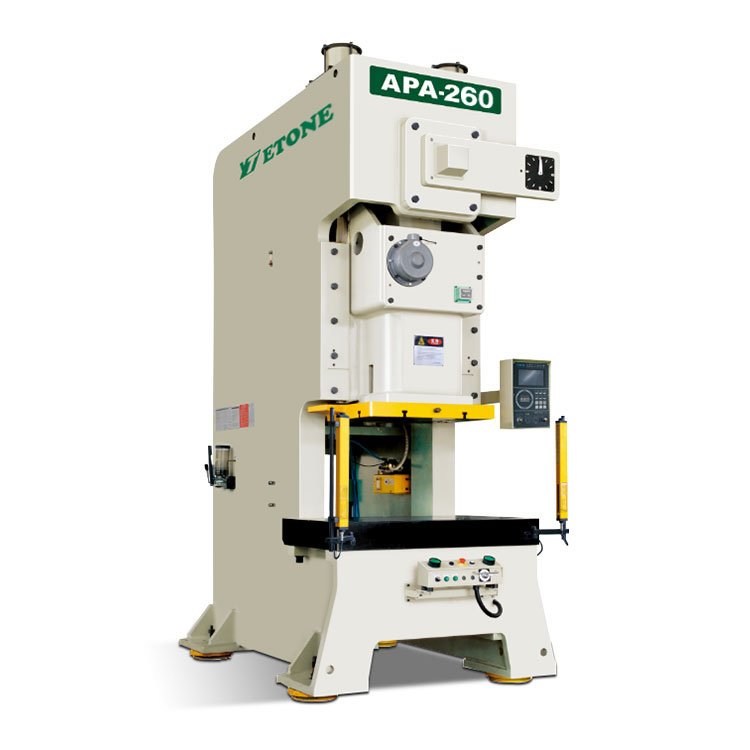

C Type Power Press



1.Product Description

 -Superior rigidity of frame structure to realize minimum frame deflection.

 -Long and precise six-point, box type gibs enhance off-center loading resistance and prolongs die life.

 -Pneumatic dry type friction clutch & brake, low noise, long service life to ensure reliable safety and flexible action.

 -Hydraulic overload protector is equiped as a standard feature to cause emergency stop instantly to ensure maximum protection for the press and die.



2.Standard accessories

Oil hydraulic overload protection device

Manual slider adjustment device(15 tons to 60 tons)

Electric slider adjustment device (60 tons to 315 tons)

Mechanical die height indicator (15 tons to 60 tons)

Electric die height indicator (60 tons to 315 tons)

Slider and die balancing device

Air source connector


Secondary drop protection device

Air blast device

Maintenance tool and tool box

Instruction manual

Frequency converter

Power outlet

Shockproof support

7 inch touch screen, electronic cam

Angle display

Pre- cut and pre-break function


3.Product Parameter:

Name



APA-80

APA-110

APA-160

Model



V type

H type

V typeI H type

V type H type

Tonnage

Ton

80

110

160

Rated tonnage point

mm

4

2

6 3

6 13

Variable speed

s.p.m

35-80

80-120

30-60   60-90

20-50  40-70



Stable  speed

s.p.m

65

50

35

Stroke

mm

150

70

180 80

200 90

Max Die height

mm

340

380

360 410

400 450

Slider adjustmen

mm

80

80

100

Slide size

mm

560 x 420 x 70

650x470x80

700x550x90

Bolster size

mm

1000x550x90

1150x600x110

1250x760x140

Die handle hole

mm

 50

50

50

Main motor

kw

7.5

11

15

Slider adjustment device

HP



Applied air pressure

kg/ cm2

6

6

6

Press precision



GB(JIS)1class

GB(JIS)1class

GB(JIS)1class

Size (LxWxH)

mm

1800x1180 x 280 0

1 900x 13 0 0 x 3200

2300x 140x 3650

Die cushion capacity

Ton

   3.6

6.3

10

Die cushion stroke

mm

    70

80

80

Die cushion effective area

mm2

   450x 310

500x350

650x 420
