C Frame Single Crank Shaft Power Press

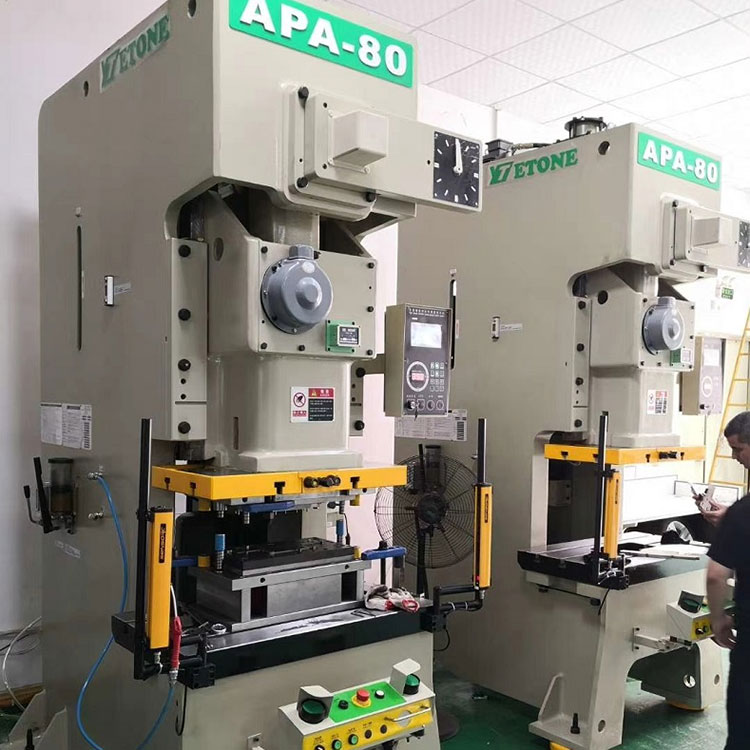

Etone C frame single crank shaft power press is designed for stamping small parts at high single stroking rates or in continuous mode, using either blanks or coil stock. Etone APA Series metal stamping press provides all the features you expect to find in a world-class press, at a very competitive price, 12 monthes warranty.

Send Inquiry

Product Description

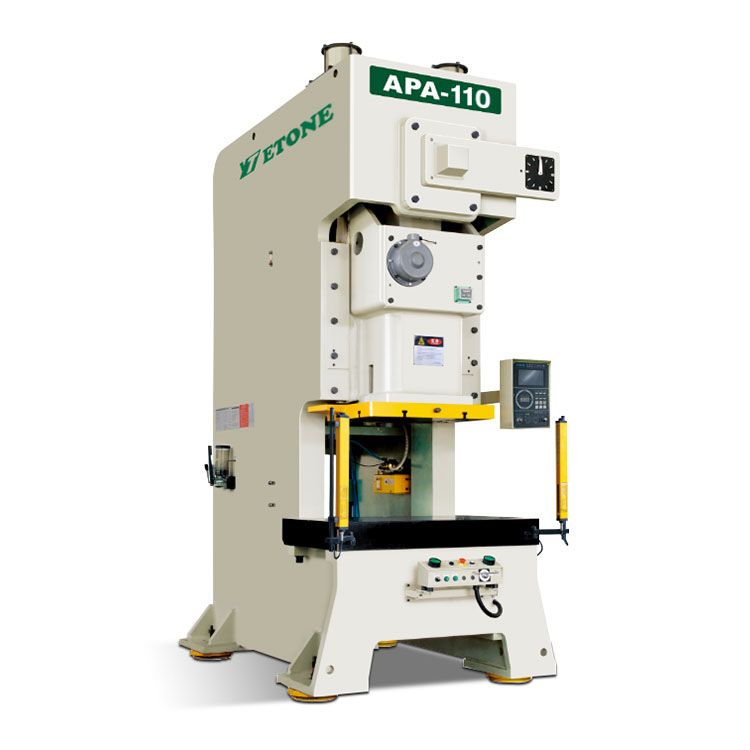

C Frame Single Crank Shaft Power Press



1.Product Introduction

Etone C frame single shaft power press use the low-inertia press drivetrain, one-point gap frame press lines features gears manufactured with steel hubs, forged steel gear rings, finished and hardened gear teeth and an oil bath and spray system. Together, these features provide close running tolerances,long life and smooth, quiet operation.



2.Wealsooffer otherequipment to meet your complete press line needs, including:

Coil feeding and handling equipment

Quick die change systems

Press controls & monitoring

Transfer systems

Press mounts



3.Product Parameter:

Name



APA-110

APA-125

APA-160

Model



V type

H type

V type I H type

V type H type

Tonnage

Ton

110

125

160

Rated tonnage point

mm

4

2

6          3

6         13

Variable speed

s.p.m

35-80

80-120

30-60   60-90

20-50  40-70



Stable speed

s.p.m

65

50

35

Stroke

mm

150

70

180      80

200     90

Max Die height

mm

340

380

360      410

400     450

Slider adjustmen

mm

80

80

100

Slide size

mm

560 x420 x70

650x470x80

700x550x90

Bolster size

mm

1000x550x90

1150x600x110

1250x760x140

Die handle hole

mm

50

50

50

Main motor

kw

7.5

11

15

Slider adjustment device

HP

Applied air pressure

kg/ cm2

6

6

6

Press precision



GB(JIS)1class

GB(JIS)1class

GB(JIS)1class

Size (LxWxH)

mm

1800x1180 x 280 0

1900x 1300 x3200

2300x 140x 3650

Die cushion capacity

Ton

3.6

6.3

10

Die cushion stroke

mm

70

80

80

Die cushion effective area

mm2

450x 310

500x350

650x 420
