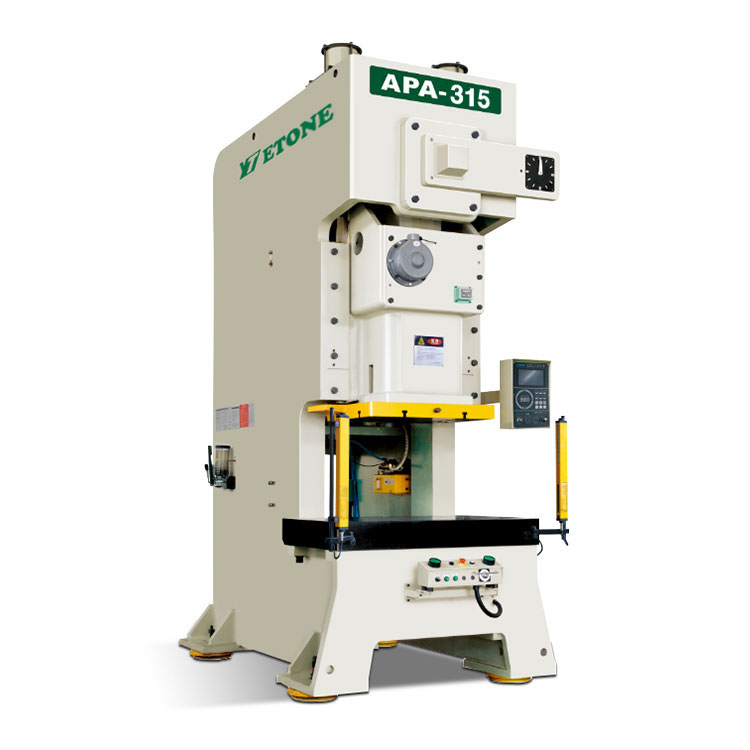

C Frame Press Machine

Capacity: 200 tons, 260 tons, 315 tons
The APA series are C frame press machine Crank Type Mechanical Stamping Press.It is used for sheet metal stamping.

Send Inquiry

Product Description

C Frame Press Machine



1.C frame press machine Introduction:

C frame press machines are suitable for various cold stamping processes such as shearing, punching, blanking, bending and shallow drawing.C frame press machine is manufactured in strict accordance with Japanese JIS Class 1 accuracy standards and is superior to domestic standards. The capacity is from 15 tons to 315 tons. And the best selling type is 80 tons,110 tons, 160 tons and 200 tons overseas. We are the famous stamping press manufacture in China. Good quality and good service are our aim.Generally customer-oriented, and it's our ultimate goal for being not only the most trusted, trustable and honest provider, but also the partner for our customers for Hot New Products China Mechanical Power Press/Punch Press, Welcoming interested corporations to cooperate with us, we look forward to owning the opportunity of performing with corporations across the environment for joint advancement and mutual good results. Hot New Products China Power Press, Punch Press, Now we have many years' experience in hair product production, and our strict QC Team and skilled workers will ensure that we give you top hair items with the best hair quality and workmanship. You will get successful business if you choose to cooperate with such a qualified manufacturer. Welcome your order cooperation.



Standard accessories

Optional accessories

Inverter



Touch pad



Preset counter



Electrical cam

Electrical automatic lubrication system

Hydraulic over-load protector

Pneumatic die cushion device

Handle Slide adjust device(APA below 60)

Foot switch

Electric Slide adjust device(APA 60 above)

Quick die change device(die lifter, clamp and die arm)

Mechanical Die height indicator( APA below 60)

Slide knock-out device

Electric  Die height indicator(APA 60 below)

Die room light

Balance device

Photo-electronic safety device

Crank angle indicator

Feeder

Electric stroke counter

Uncoiler

Air source receptacle

Straightener

Against over-run safety device

Mechanism hand

Misfeed detection consent



Power socket



Maintenance tool box



Operation Manual



Anti vibration press mount





2.C frame press machine Product Parameter:

Name



APA-200

APA-260

APA-315

Model



V type

H type

V type I H type

V type H type

Tonnage

Ton

200

260

315

Rated tonnage point

mm

4

2

6          3

6        13

Variable speed

s.p.m

35-80

80-120

30-60   60-90

20-50  40-70



Stable speed

s.p.m

65

50

35

Stroke

mm

150

70

180       80

200     90

Max Die height

mm

340

380

360       410

400     450

Slider adjustmen

mm

80

80

100

Slide size

mm

560 x420x70

650x470x80

700x550x90

Bolster size

mm

1000x550x90

1150x600x110

1250x760x140

Die handle hole

mm

50

50

50

Main motor

kw

7.5

11

15

Slider adjustment device

HP

Applied air pressure

kg/cm2

6

6

6

Press precision



GB(JIS)1class

GB(JIS)1class

GB(JIS)1class

Size (LxWxH)

mm

1800x1180 x 280 0

1 900x 1300 x 3200

2300x 140x 3650

Die cushion capacity

Ton

3.6

6.3

10

Die cushion stroke

mm

70

80

80

Die cushion effective area

mm2

450x 310

500x350

650x 420
