160 Tons Press Machine

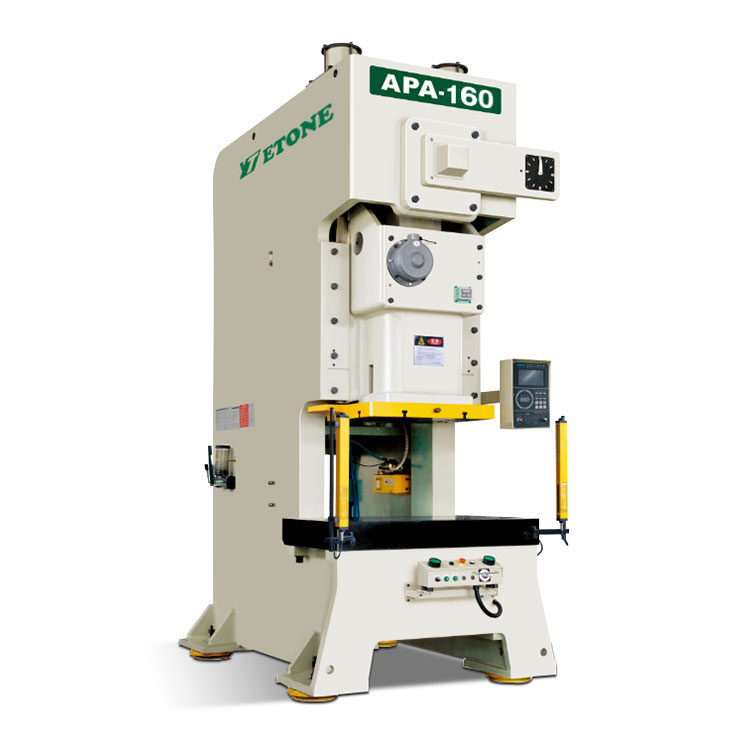

APA-160: 160 tons, C- frame single crank mechanical press​ 160 Tons Press Machine has an open frame, it has outstanding advantages compared with the closed type press. The working table is open in three directions, it is convenient to install the mold and operate, and provides good conditions for mechanization and automation. Due to the convenient use of open type crank press, it is widely used in various industries. It is the main equipment in sheet metal stamping production.

Send Inquiry

Product Description

160 Tons Press Machine


1.Product Description

We have the capacity from 25 tons to 315 tons. And 160 tons press machine is our popular type in factory. It can be used in punching, blanking, trimming, bending, shallow drawing and forming processes, and is widely used in national defense, aviation, automobiles, tractors, motors, electrical appliances, bearings, Instruments, agricultural machinery, agricultural tools, bicycles, sewing machines, medical equipment, daily hardware and other departments. In medium and small tonnage of presses, open type presses have been widely used and developed.


2.Features:

Super rigid press frame.

High driving torque dry type clutch & brake.

Box type Six-point precision gib.

Low deflection.


3.Product Parameter:

Name



APA-80

APA-110

APA-160

Model



V type

H type

V typeI H type

V type H type

Tonnage

Ton

80

110

 160

Rated tonnage point

mm

4

2

6 3

6 13

Variable speed

s.p.m

35-80

80-120

30-60   60-90

20-50  40-70



Stable  speed

s.p.m

65

50

35

Stroke

mm

150

70

180 80

200 90

Max Die height

mm

340

380

360 410

400 450

Slider adjustmen

mm

80

80

100

Slide size

mm

560 x 420 x 70

650x470x80

700x550x90

Bolster size

mm

1000x550x90

1150x600x110

1250x760x140

Die handle hole

mm

 50

50

50

Main motor

kw

7.5

11

15

Slider adjustment device

HP



Applied air pressure

kg/ cm2

6

6

6

Press precision



GB(JIS)1class

GB(JIS)1class

GB(JIS)1class

Size (LxWxH)

mm

1800x1180 x 280 0

1 900x 13 0 0 x 3200

2300x 140x 3650

Die cushion capacity

Ton

   3.6

6.3

10

Die cushion stroke

mm

    70

80

80

Die cushion effective area

mm2

   450x 310

500x350

650x 420
