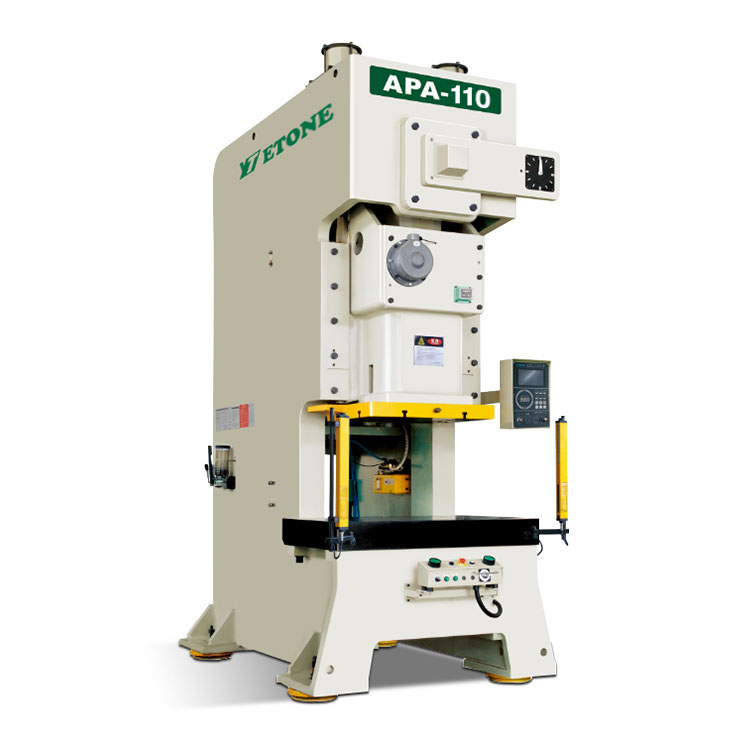

110 Tons Power Press

110 tons power press is 110 tons press machine. It uses crank slide block mechanism as working mechanism, machine driving system passes the movement and energy of electromotor to working mechanism, bringing forge to the die by slide block, in order to let roughcast engender transmutation.

Send Inquiry

Product Description

110 tons Power press


1.Product Description

110 tons power press is 110 tons press machine. It uses crank slide block mechanism as working mechanism, machine driving system passes the movement and energy of electromotor to working mechanism, bringing forge to the die by slide block, in order to let roughcast engender transmutation. The C frame power press is one of the categories of crank presses featuring an open frame, or C frame or C body, C type. 110 tons is our hot power press in our factory.

It can be widely used in production process like drawing, bending, marking, flattening, and trimming. This machine can be operated under safety one stroke or continuous mode.


2.Features:

Super rigid press frame.

High driving torque dry type clutch & brake.

Box type Six-point precision gib.

Low deflection.


3.Product Parameter:

Name



APA-25

APA-35

APA-45

APA-60

Model



V type

H type

V type I H type

V type  H type

V type

H type

Tonnage

Ton

25

35

415

610

Rated tonnage point

mm

3.2

1 .6

3.2 1 . 6

3 . 2 1 . 6

4

Number of strokes per minute

Variable speed

s.p.m

60-140

130-200

40-120 110-180

40-100 100-150

35-90

80-120

Stable  speed

s.p.m

110

85

75

65

Stroke

mm

60

30

70 40

80 50

120

Max Die height

mm

200

215

220 235

250 265

310

340

Slider adjustmen

mm

50

55

60

75

Slide size

mm

3 0 0 x 2 2 0 x 5 0

360x250x50

400x300x60

500x360x70

Bolster size

mm

680x300x70

800x400x70

850x440x80

900x500x80

Die handle hole

mm

0  3 8 .1

0  3 8 .1

038.1

050

Main motor

kw

3.7

3 . 7

5.5

5.5

Slider adjustment device

HP

Manual operation

Applied air pressure

kg/ cm2

6

6

6

6

Press precision



GB(JIS)1class

GB(JIS)1class

GB(JIS)1class

GB(JIS)1 class

Size (LxWxH)

mm

1 28 0 x 8 5 0 x 2 2 0 0

1 38 0 x 9 0 0 x 24 00

1600x950x2500

1600x1000 x2800

Die cushion capacity

Ton



2.3

2.3

3.6

Die cushion stroke

mm



50

50

70

Die cushion effective area

mm2



300x230

300x230

350x300
