Stamping Press Punch

Stamping Press Punch from 60 ~ 500 tons. For stamping stator and Rotor of ceiling fan, air conditions, lamination for servo motor, sealing motor, geared motor, air conditioner compressor motor, refrigerator compressor, automobile motor, Fan Motor, Ventilation, Refrigeration, Washing Machine Motor, Starter Motor, Engine Cooling Motor, Sunroof Motor, Shaded Pole Motor, HVAC Motor, Electric Turbo Motor, ABS Motor, Tubular Motor, DC Inverter Motor, Segmented, Universal Motor.

Send Inquiry

Product Description

Stamping Press Punch Basic Info.

Model NO.:APJ-200

Controlling Mode:CNC

Automatic Grade:Semiautomatic

Power Source:Mechanical Drive

Precision:High Precision

Certification:GS, CE, RoHS, ISO 9001

Condition:New

Model Number:Apj-200 300 400

Key Selling Points:High-Accuracy

Marketing Type:Ordinary Product

Transport Package:Wooden Cases, Pallets

Specification:200 300 400 500

Trademark:ETONE

Origin:China

Production Capacity:300 Sets/Month

Stamping Press Punch Product Description

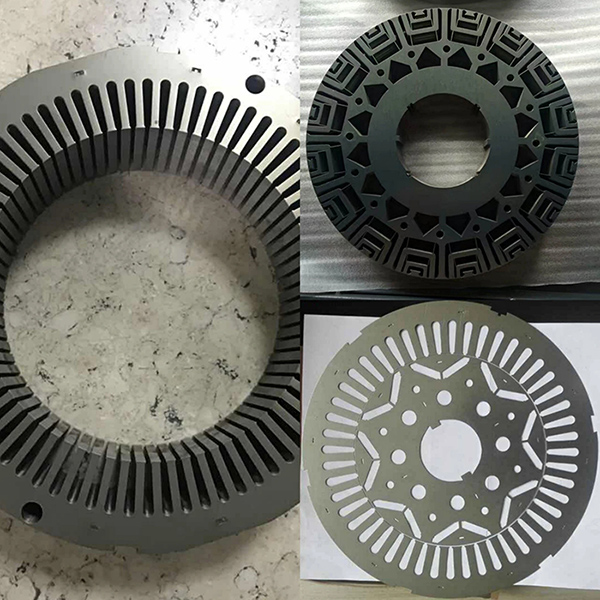

Stamping Press Punchfrom 60 ~ 500 tons. For stamping stator and Rotor of ceiling fan, air conditions, lamination for servo motor, sealing motor, geared motor, air conditioner compressor motor, refrigerator compressor, automobile motor, Fan Motor, Ventilation, Refrigeration, Washing Machine Motor, Starter Motor, Engine Cooling Motor, Sunroof Motor, Shaded Pole Motor, HVAC Motor, Electric Turbo Motor, ABS Motor, Tubular Motor, DC Inverter Motor, Segmented, Universal Motor.

High Speed Lamination Press Motor High Speed Press Machine Stamping Press Punch Press

High Speed Lamination Press Motor High Speed Press Machine Stamping Press Punch Press
High Speed Lamination Press Motor High Speed Press Machine Stamping Press Punch Press
Description:

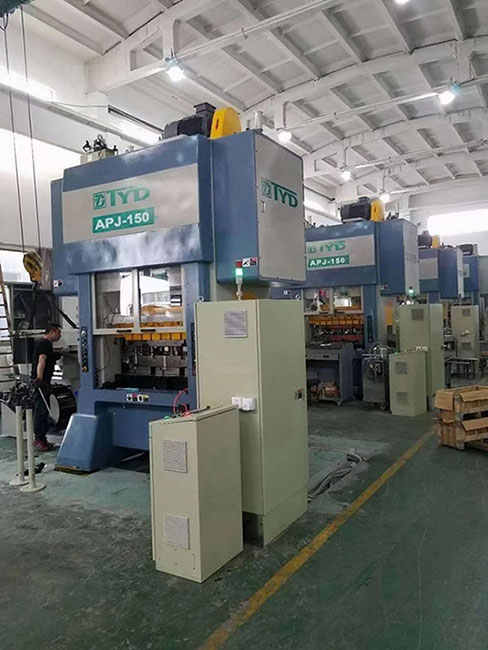

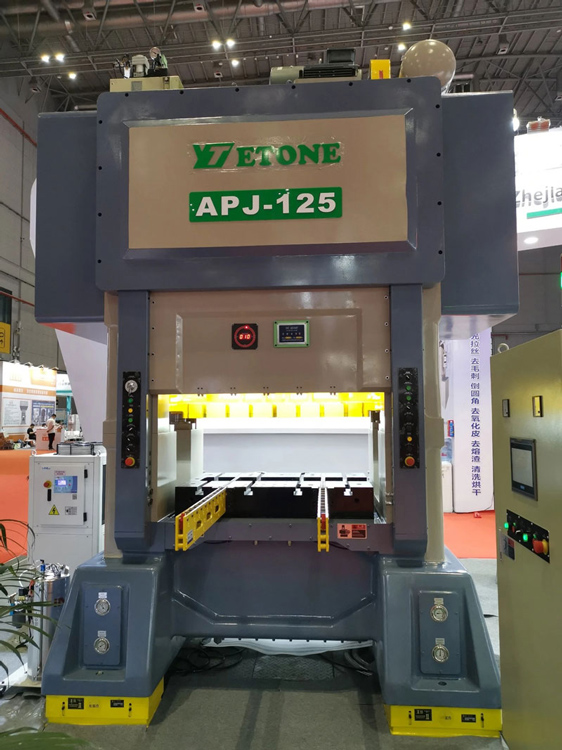

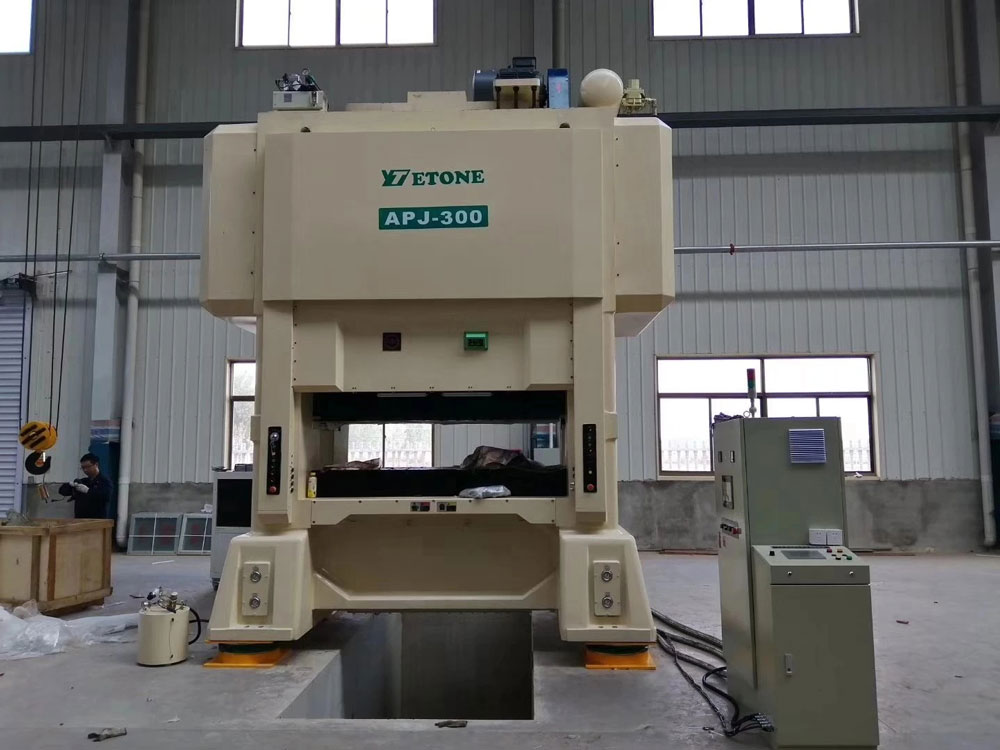

APJ series Gantry type high speed precision FOUR PILLAR press (press machine, punching press, punching machine,mechanical power press, stamping press), capacity from 60ton to 450ton, PLC control, wet clutch, hydraulic overload protected, High steel alloy casting frame structure (with the most suitable for the frame designed by computer analysis), processed by the internal stress elimination process, further improving the high rigidity frame which is indispensable for precision, achieving low noise and low vibration, and improving service life of the die.

Model



APJ-400

Tonnage

ton

400

Travel

mm

30-50

Number of strokes per minute

s.p.m

150-350

Lower table size

mm

2800x1200

Blanking hole

mm

2200x400

Sliding block area

mm

2800x1100

Die height adjustment stroke

mm

420-480

Die height adjustment motor

kw

3.7

Feeding line height

mm

220±50

Main motor

kw

75

Standard configuration
• Electric model height adjustment
• Die height display precision 0.01 mm
• Inching positioning device
• The computer can memorize data of 30 sets of mold processing materials
• Three groups of batch control
•Two groups of feed error detection
• Linked/single action, with 0° and 90° positioning
function
• Host forward/reverse device
• Hydraulic slide lock device
• Lubricating oil cooling cycle machine
• Italian OMPI integrated clutch brake
• Stand-alone electric control box
• Work box
High Speed Lamination Press Motor High Speed Press Machine Stamping Press Punch Press
Warranty Policy:

Since the buyer's final acceptance date, our company implements the products after sale service. The warranty period is one year.  (Except for improper operation or artificial damage by the buyers.)
