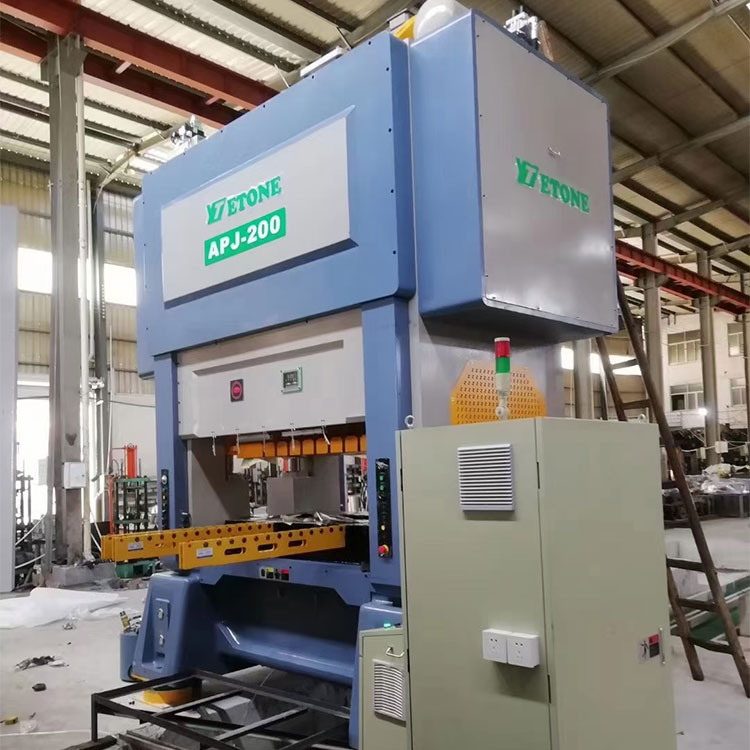

Stamping press complete line
1.Product Features/Advantage
1.High precision stability and reliability
2.High steel alloy casting frame structure (with the most suitable for the frame designed by computer analysis), processed by the internal stress elimination process, further improving the high rigidity frame which is indispensable for precision, achieving low noise and low vibration, and improving service life of the die.
2.Application :
Automatic high-speed precision stamping for self-reveting iron core of new energy vehicle motor, compressor motor, high-efficiency industrial motor, etc.
3.Product Parameter:
|
|
APJ-220 |
APJ-300 |
APJ-350 |
APJ-400 |
APJ-450 |
Tonnage |
ton |
220 |
300 |
350 |
400 |
450 |
Travel |
mm |
30 |
30 |
30 |
30-50 |
30-50 |
Number ofstrokes perminute |
s.p.m |
150-600 |
150-400 |
150-350 |
150-350 |
150-300 |
Lower table size |
mm |
1900x1000 |
2200x1000 |
2400x1000 |
2800x1200 |
3000x1200 |
Blanking hole |
mm |
1400x300 |
2000x300 |
2200x300 |
2200x400 |
2500x400 |
Slidingblockarea |
mm |
1900x750 |
2200x900 |
2400x900 |
2800x1100 |
3000x1100 |
Die height adjustment stroke |
mm |
370-420 |
400-450 |
400-450 |
420-480 |
450-500 |
Die height adjustment motor |
kw |
1.5 |
2.2 |
2.2 |
3.7 |
3.7 |
Feeding line height |
mm |
200 |
210 |
210 |
220 |
270 |
Main motor |
kw |
45 |
55 |
55 |
75 |
75 |
4.Machine Standard accessories
1Lubrication system: apply high pressure oil from crankshaft center(Japan SHOWA)
2PLC control system: provide cutting signals
3Bearing: NSK Japan
4Oil atomizer: SMC Japan
5Air switch and contactor: Schnede France
6Oil seal: NOK Japan
7Auto-balancing system design
8Electronic slide adjustment system
9T-Mobile operating table
10Hydraulic Slide Locking Device
11Material Ending Detector
12Inverter:
13Electric Clutch valve
14Clutch structure: (OMPI Italy )
15Relay: Omron
16Angle and speed showing: TOYO
17Air pressure joint: ARK Korea
18Crankshaft: SNCM8,Grinding Guide: AKS Japan
19Auto-Thermal Balancing in ram/Slider micro inching position
20Miss-Feed detector
21Tool box with machine shipping1
5.Standard accessories:
1High Speed Gear Feeder(Width Selection: 150/200/300/400)
2Doubleheads Uncoiler
3Straightener with S loop(Width Selection: 200/300/400)
4Automatic oil device to die
5Auto Power Die lifer system:
6Die Arm system:2 pcs
7Anti-vibration system
8Chute controller:
9Die solenoid valve installation system: 10 pcs
6.Optional Accessories
Servo Feeder
Bottom dead detector
2.Quick die clamping device
3.Safety door
4. Skew chut
