High Speed Lamination Press

Capacity: 60 tons, 80 tons, 125 tons, 150 tons, 200 tons Etone is a large and professional high speed lamination press manufacturer and supplier in China. This type high speed press’s crown, uprights and bed are made of high quality cast iron. Our machines have good price with good quality in China.

Send Inquiry

Product Description

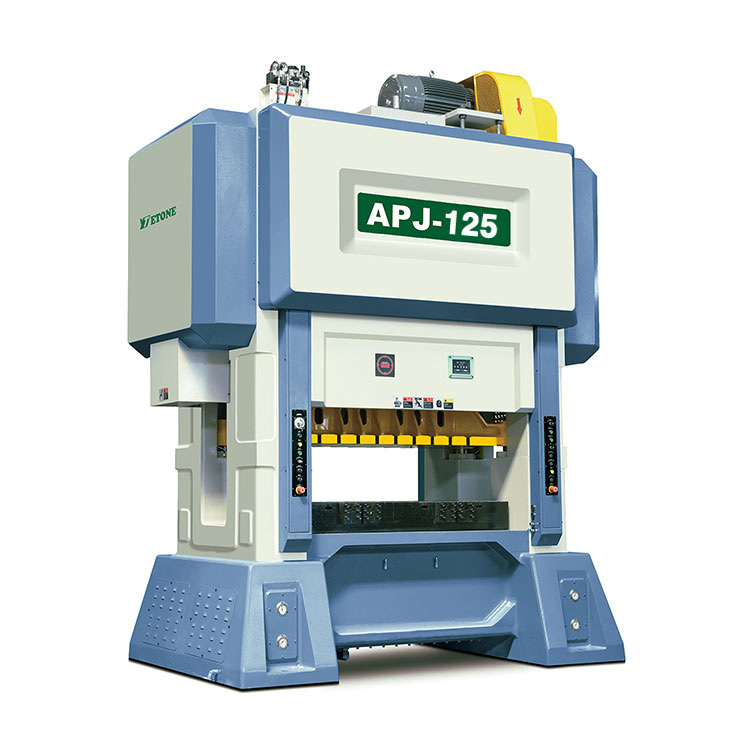

High Speed Lamination Press


1.Product Description

Our high Speed Lamination Presses, Straight Side High Speed Double Crank Presses from 60 tons to 500 tons, specially for the manufacture of laminated rotors and stators of electric motors. It maintains a stable and efficiency function of stamping large size stator and rotor, lamination for generator motor and Industrial Motor in large tonnage press area for many years.We've been experienced manufacturer. Wining the majority on the crucial certifications of its market for Supply ODM China Power Press Machine Mechanical Press Machine High Speed Press Machine, Encouraged via the fast producing marketplace of your rapidly food stuff and beverage consumables all around the entire world , We have been seeking forward to doing work with partners/clients to help make achievements with each other. Supply ODM China Press Machine, High Speed Press Machine, Our company considers that selling is not only to gain profit but also popularize the culture of our company to the world. So we have been working hard to give you the wholehearted service and willing to provide you the most competitive price in the market



2.High speed lamination press Product Parameter:




APJ-60

APJ-80

APJ-125

APJ-150

APJ-200

Tonnage

ton

60

80

125

150

200

Travel

mm

30

30

30

30

30

Numberof strokes perminute

s.p.m

200-800

200-700

150-700

150-600

150-600

Lower tablesize

mm

950x650

1100x750

1200x850

1400x850

1700x950

Blanking hole

mm

700x125

800x150

1000x200

1200x200

1300x250

Sliding blockarea

mm

950x420

1100x500

1200x600

1400x600

1700x700

Die height adjustment stroke

mm

300-350

330-380

360-410

360-410

370-420

Die height adjustment motor

kw

0.4

0.75

0.75

0.75

15

Feeding line height

mm

160

175土50

195土50

195土50

200土5 0

Main motor

kw

19

22

30

37

45


3.High speed lamination press Machine Standard accessories

1Lubrication system: apply high pressure oil from crankshaft center(Japan SHOWA)

2 PLC control system: provide cutting signals

3 Bearing: NSK Japan

4 Oil atomizer: SMC Japan

5 Air switch and contactor: Schnede France

6 Oil seal: NOK Japan

7 Auto-balancing system design

8 Electronic slide adjustment system

9 T-Mobile operating table

10 Hydraulic Slide Locking Device

11 Material Ending Detector

12 Inverter:

13 Electric Clutch valve

14 Clutch structure: (OMPI Italy )

15 Relay: Omron

16 Angle and speed showing: TOYO

17 Air pressure joint: ARK Korea

18 Crankshaft: SNCM8,Grinding Guide: AKS Japan

19 Auto-Thermal Balancing in ram/Slider micro inching position

20 Miss-Feed detector

21 Tool box with machine shipping 1



4.High speed lamination press Standard accessories:

1 High Speed Gear Feeder(Width Selection: 150/200/300/400)

2 Doubleheads Uncoiler

3 Straightener with S loop (Width Selection: 200/300/400)

4 Automatic oil device to die

5 Auto Power Die lifer system:

6 Die Arm system:2 pcs

7 Anti-vibration system

8 Chute controller:

9 Die solenoid valve installation system: 10 pcs



Optional Accessories

1. Servo Feeder.Bottom dead detector

2. Quick die clamping device

3. Safety door

4.  Skew chut

5.  Others
