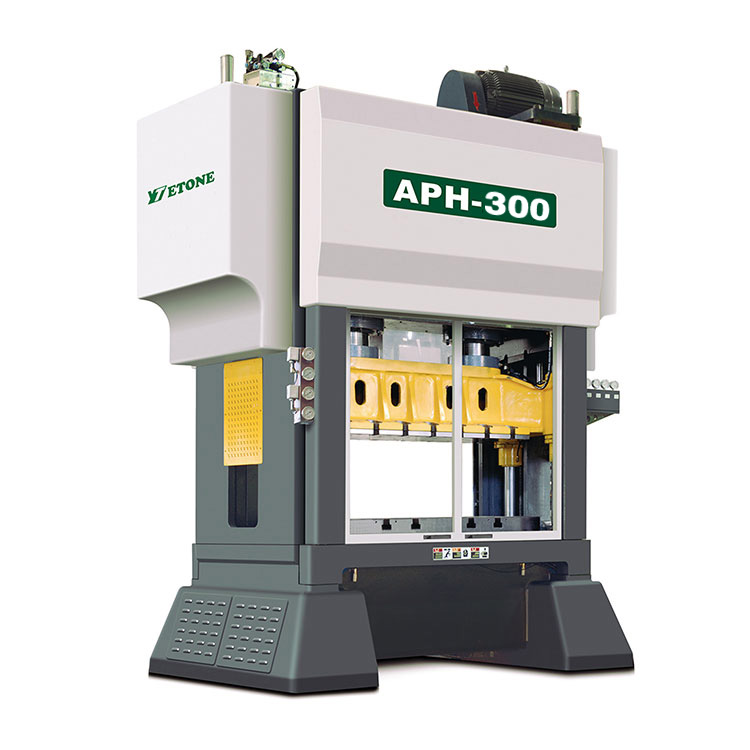

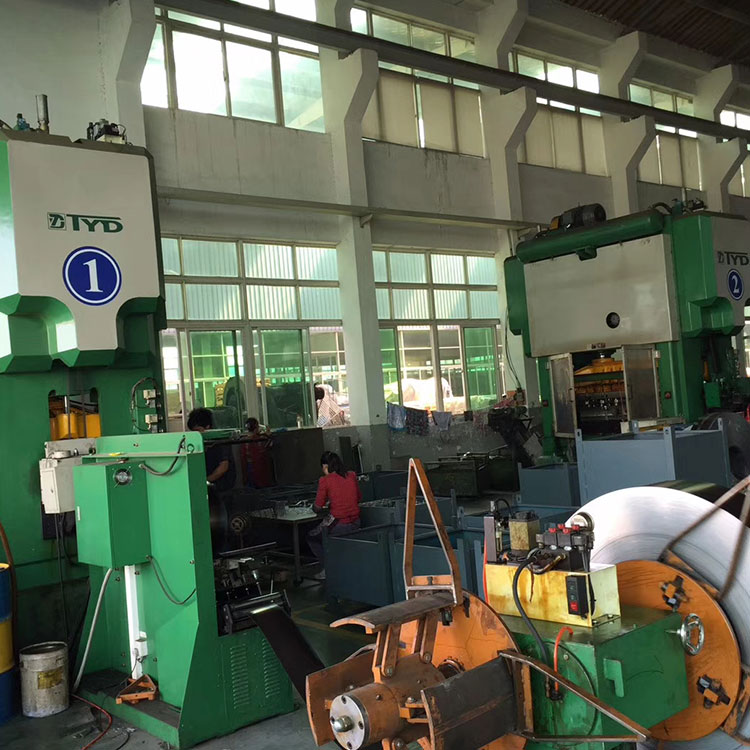

Motor Punching Machine

Capacity: 80 tons, 125 tons, 200 tons, 300 tons.
Etone is the biggest high speed presses, motor punching machine, high speed punch presses, high speed lamination press manufacturer in China. It is focus on the motor parts and stator and rotor area. Our motor punching machine can be compared with Japan motor punching machine on the quality, precision and outlook.

Send Inquiry

Product Description

Motor Punching Machine


1.Product Description

Etone is the biggest high speed presses, motor punching machine,high speed punch presses, high speed lamination press manufacturer in China. It is focus on the motor parts and stator and rotor area. Now, we become the best high speed press machine supplier in China. Our high speed press machine and high speed lamination press are exported to more than 30 countries all over the word. Now, we have our agents in India, Thailand, Indonesia, Korea, Vietnam, Turkey, Brazil, Russia, USA and so on.  Gaining customer satisfaction is our company's aim forever. We will make great efforts to develop new and top-quality products, meet your special requirements and provide you with pre-sale, on-sale and after-sale services for Well-designed China Full Servo Motors Double Line Super High Speed Hot Sealing and Hot Cutting T-Shirt Bag Making Machine with Auto Punching Machine, Welcome all nice consumers communicate information of items and ideas with us!! Well-designed China T-Shirt Bag Maker, T-Shirt Bag Making Equipment, With the intensified strength and more reliable credit, we've been here to serve our customers by providing the highest quality and service, and we sincerely appreciate your support. We are going to endeavor to maintain our great reputation as the best merchandise supplier in the world. If you have any questions or comments, you should contact with us freely.



2.Motor punching machine Applicable area

motor punching machines are suitable for high-speed and precision automatic stamping of automatic riveting iron cores such as new energy automobile motors, compressor motors, and energy-efficient industrial motors.



3.Motor punching machine Product Features

Four - columned top cylinder structure

Double-drive technology

Slider multi-point force

High-rigidity cast pre-stress machine body

Multiple aging treatment



 Low inertia clutch brake

Insert bearing

Constant temperature lubricated cooling system

Straight column + octagonal precision guide


 High speed

Lightweight, fully dynamic balance design

Stable operation under 300-400SPM load


 High rigidity

High strength casting bed, stiffness 1 / 15000-1 / 20000

The turbulence of the multi-point applied force slider is 1/2 of that of the double point


 High precision

Static precision: 1/ 2 ofJIS level

Lower dead point dynamic accuracy: GB/T 29548superprecision level



 motor punching machine Complete specification

60 tons, 80tons, 125 tons, 150 tons, 200 tons, 220 tons, 300 tons, 350 tons, 400 tons, 450 tons. The machine table meets the needs of higher efficiency motor materials thinner, higher accuracy, faster speed of high speed precision stamping requirements.


 Large table

3.7m maximum Mesa to meet the needs of the development of new energy vehicles, synchronized with the international, larger tonnage.Applicable materials and processes.Suitable for high speed precision stamping production of 0.2-0.35mm high hardness material, micron-level die clearance and wide table surface self-folding riveting iron core continuous die.


4.Motor punching machine Product Parameter:





APH-80

APH-125

APH-200

APH-300

Tonnage

ton

80

125

200

300

Travel

mm

3025

30

30

30

Number of strokes per minute

s.p.m

200-700200-800

150-700

150-600

150-400

Lower table size

mm

11 00x750

1200x850

1700x950

2000x1000

Blanking hole

mm

800x150

1000x200

1300x250

1520x330

Sliding block area

mm

1100x500

1200x600

1700x700

2000x900

Die height adjustment stroke

mm

330-380

360-410

370-420

400-450

Die height adjustment motor

kw

0.75

0  75

1.5

2.2

Feeding line height

mm

175

195

200

210

Main motor

kw

22

37

45

55



5.Machine Standard accessories

1

Lubrication system: apply high pressure oil from crankshaft center(Japan SHOWA)



2

PLC control system: provide cutting signals



3

Bearing: NSK Japan



4

Oil atomizer: SMC Japan



5

Air switch and contactor: Schnede France



6

Oil seal: NOK Japan



7

Auto-balancing system design



8

Electronic slide adjustment system



9

T-Mobile operating table



10

Hydraulic Slide Locking Device



11

Material Ending Detector



12

Inverter:



13

Electric Clutch valve



14

Clutch structure: (OMPI Itlay )



15

Relay: Omron



16

Angle and speed showing: TOYO



17

Air pressure joint: ARK Korea



18

Crankshaft: SNCM8,GrindingGuid: AKS Jpan



19

Auto-Thermal Balancing in ram/Slider micro inching position



20

Miss-Feed detector



21

Tool box with machine shipping



6.Standard accessories:

1

High Speed Gear Feeder



2

Double rack Uncoiler



3

Straightener with S loop



4

Automatic oil device to die



5

Auto Power Die lifer system:



6

Die Arm system:2 pcs



7

Anti-vibration system



8

Chute controller:



9

Die solenoid valve installation system: 10 pcs





7.Optional Accessories

Bottom dead detector

Quick die clamping device

Safety door

Others
