Power Press Machine

Capacity: 80 tons, 125 tons, 200 tons, 300 tons.
We are the biggest power press machine, high speed presses, and lamination stamping machine manufacturer in China. We have the Our power press machines focus on different metal parts, motor parts, stator and rotor field. We exported our machines to Asia, Middle East, Europe, South America, America and Africa. We have the capacity on 80 ton, 125 ton, 200 tons, 300 tons power press machines.

Send Inquiry

Product Description

Power Press Machine


1.Product Description

We are the biggestpower press machine,high speed presses,and lamination stamping machine manufacturer in China.We focus ondifferent metal parts,motor parts,stator and rotorfield. Now, we become the best high speed press machine supplier in China. Our high speed press machine and high speed lamination press are exported to more than 30 countries all over the word. Now, we have our agents in India, Thailand, Indonesia, Korea, Vietnam, Turkey, Brazil, Russia, USA and so on. “Good quality, Best service” is our aim.So that you can finest fulfill client's demands, all of our operations are strictly performed in line with our motto "High Excellent, Competitive Price, Fast Service" for Factory Cheap China High Precision Hydraulic Power Press Machine Price, Safety through innovation is our promise to each other. Factory Cheap China CNC Hydraulic Press, Punch Press, By integrating manufacturing with foreign trade sectors, we can deliver total customer solutions by guaranteeing the delivery of right merchandise to the right place at the right time, which is supported by our abundant experiences, powerful production capability, consistent quality, diversified goods and the control of the industry trend as well as our maturity before and after sales services. We'd like to share our ideas with you and welcome your comments and questions.


2.Power press machine Applicable area

Power press machines are suitable for high-speed and precision automatic stamping of automatic riveting iron cores such as new energy automobile motors, compressor motors, and energy-efficient industrial motors.


3.Power press machine Product Features

Four - columned top cylinder structure

Double-drive technology

Slider multi-point force

High-rigidity cast pre-stress machine body

Multiple aging treatment



 Low inertia clutch brake

Insert bearing

Constant temperature lubricated cooling system

Straight column + octagonal precision guide


 High speed

Lightweight, fully dynamic balance design

Stable operation under 300-400SPM load


 High rigidity

High strength casting bed, stiffness 1 / 15000-1 / 20000

The turbulence of the multi-point applied force slider is 1/2 of that of the double point


 High precision

Static precision: 1/ 2 ofJIS level

Lower dead point dynamic accuracy: GB/T 29548superprecision level



 Power press machine Complete specification

60 tons, 80tons, 125 tons, 150 tons, 200 tons, 220 tons, 300 tons, 350 tons, 400 tons, 450 tons. The machine table meets the needs of higher efficiency motor materials thinner, higher accuracy, faster speed of high speed precision stamping requirements.


 Large table

3.7m maximum Mesa to meet the needs of the development of new energy vehicles, synchronized with the international, larger tonnage.Applicable materials and processes.Suitable for high speed precision stamping production of 0.2-0.35mm high hardness material, micron-level die clearance and wide table surface self-folding riveting iron core continuous die.


4.Power press machine Product Parameter:

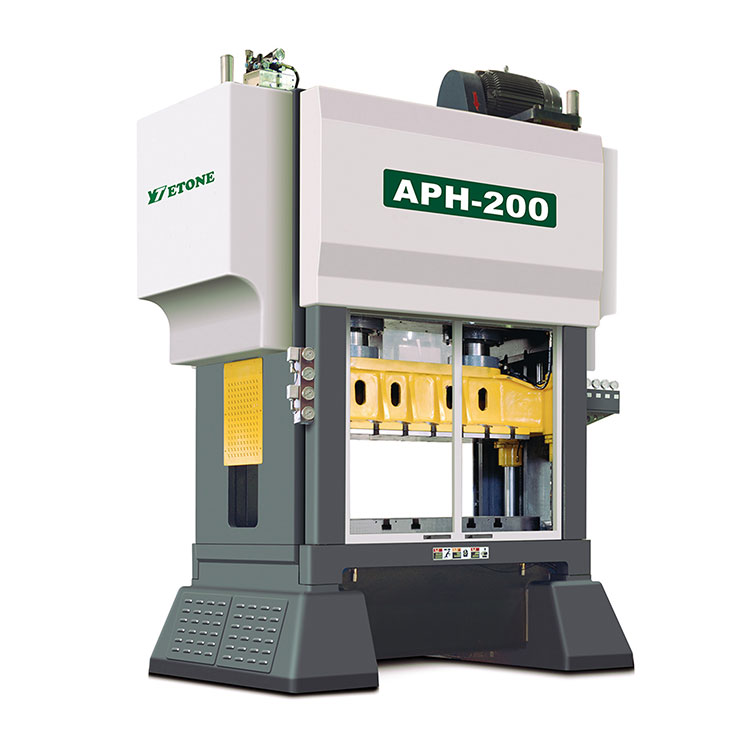

APH-80

APH-125

APH-200

APH-300

Tonnage

ton

80

125

200

300

Travel

mm

3025

30

30

30

Number of strokes per minute

s.p.m

200-700200-800

150-700

150-600

150-400

Lower table size

mm

11 00x750

1200x850

1700x950

2000x1000

Blanking hole

mm

800x150

1000x200

1300x250

1520x330

Sliding block area

mm

1100x500

1200x600

1700x700

2000x900

Die height adjustment stroke

mm

330-380

360-410

370-420

400-450

Die height adjustment motor

kw

0.75

0  75

1.5

2.2

Feeding line height

mm

175

195

200

210

Main motor

kw

22

37

45

55


5.Machine Standard accessories

1

Lubrication system: apply high pressure oil from crankshaft center(Japan SHOWA)



2

PLC control system: provide cutting signals



3

Bearing: NSK Japan



4

Oil atomizer: SMC Japan



5

Air switch and contactor



6

Oil seal: NOK Japan



7

Auto-balancing system design



8

Electronic slide adjustment system



9

T-Mobile operating table



10

Hydraulic Slide Locking Device



11

Material Ending Detector



12

Inverter:



13

Electric Clutch valve



14

Clutch structure: (OMPI Italy )



15

Relay: Omron



16

Angle and speed showing: TOYO



17

Air pressure joint: ARK Korea



18

Crankshaft: SNCM8,GrindingGuid: AKS Japan



19

Auto-Thermal Balancing in ram/Slider micro inching position



20

Miss-Feed detector



21

Tool box with machine shipping


6.Standard accessories:

1

High Speed Gear Feeder (width 150, 200,300,400)



2

Doubleheads Uncoiler  (width 150, 200,300,400)



3

Straightener with S loop



4

Automatic oil device to die



5

Auto Power Die lifer system:



6

Die Arm system:2 pcs



7

Anti-vibration system



8

Chute controller:



9

Die solenoid valve installation system: 10 pcs





7.Optional Accessories

Bottom dead detector

Quick die clamping device

Safety door

Others
