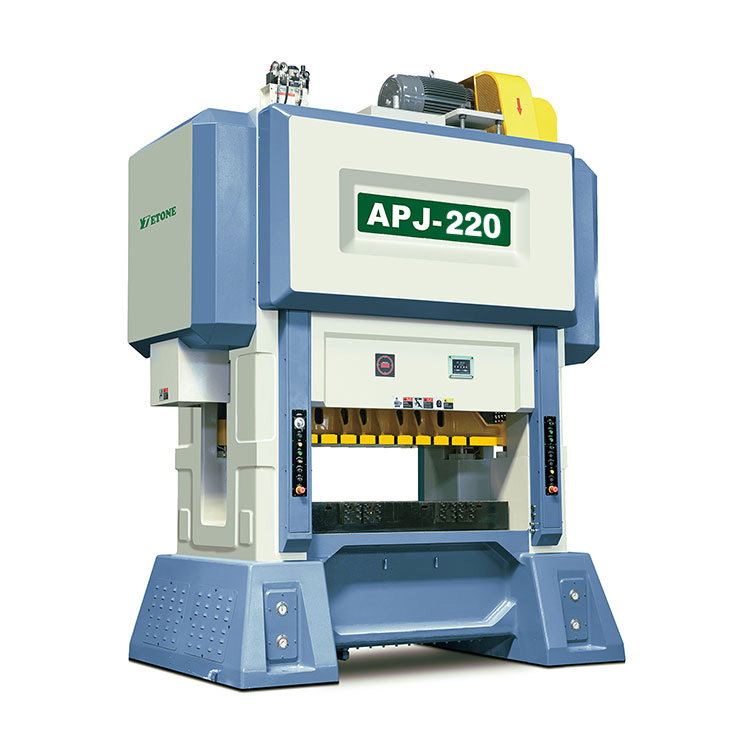

High Speed Punch Press

Capacity: 220 tons, 300 tons, 350 tons, 400 tons, 450 tons
We are the high speed punch press, high speed lamination press manufacturer in China. The machines are designed for the laminated rotors and stators of electric motors. It is high speed, high precision, change gear type, cam indexing roller feed with different feed pitch.

Send Inquiry

Product Description

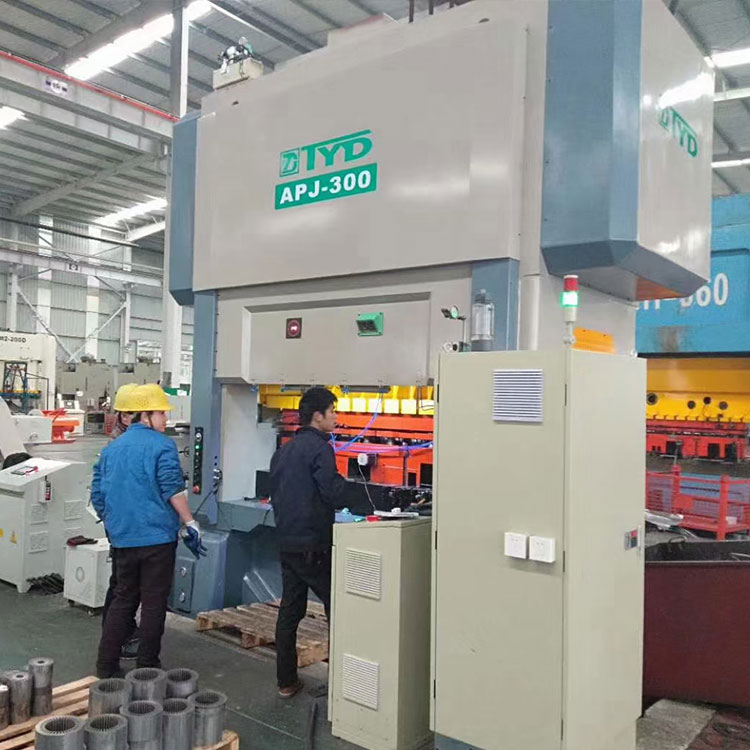

High Speed Punch Press



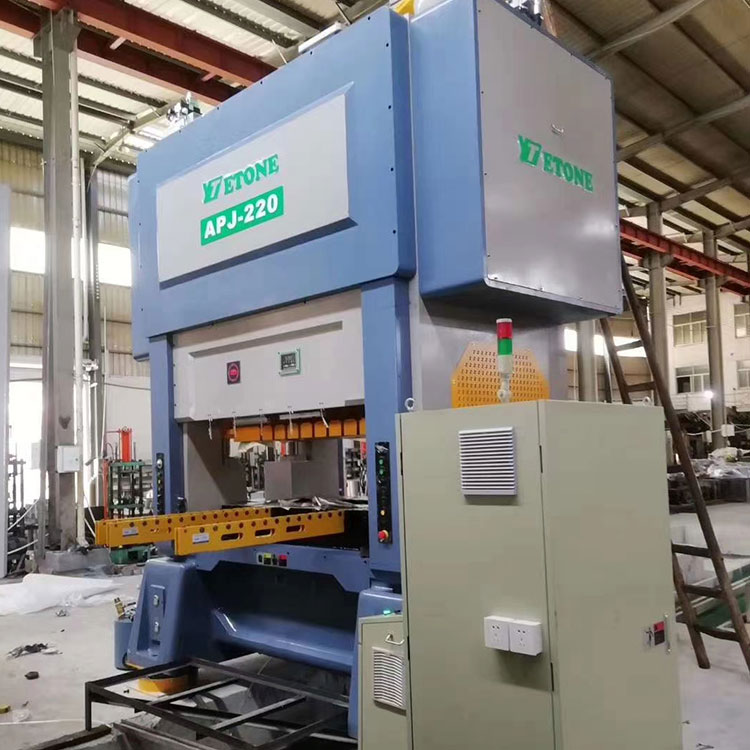

1.Product Description

 High speed punch press in fully stress-relieved MIHANITE cast iron frame under hydraulically pre-stressed the rod construction ensures high speed laminating precision and rigidity.

 High precision eight-way bearing guides, free from backlash with permanently incorporated roller circulating elements guide the slide accurately across the whole stroke.


 Efficiency and rapidity - Compared with manual stamping speed, one worker can see three punches (the most basic). Neatness and beauty - products made by automatic die lamination are neat and beautiful compared with manual lamination.While in the past few years, our organization absorbed and digested innovative technologies both equally at home and abroad. Meanwhile, our organization staffs a group of experts devoted for the advancement of High Quality China High Speed Automatic Pharmaceutical Rotary Tablet Press, Punch Press for Pill Making, Since establishment within the early 1990s, now we have arrange our sale network in USA, Germany, Asia, and several Middle Eastern countries. We intention to get a top class supplier for worldwide OEM and aftermarket! High Quality China Pill Press, Tablet Pill Press, We focus on providing service for our clients as a key element in strengthening our long-term relationships. Our continual availability of high grade products and solutions in combination with our excellent pre-sale and after-sales service ensures strong competitiveness in an increasingly globalized market.


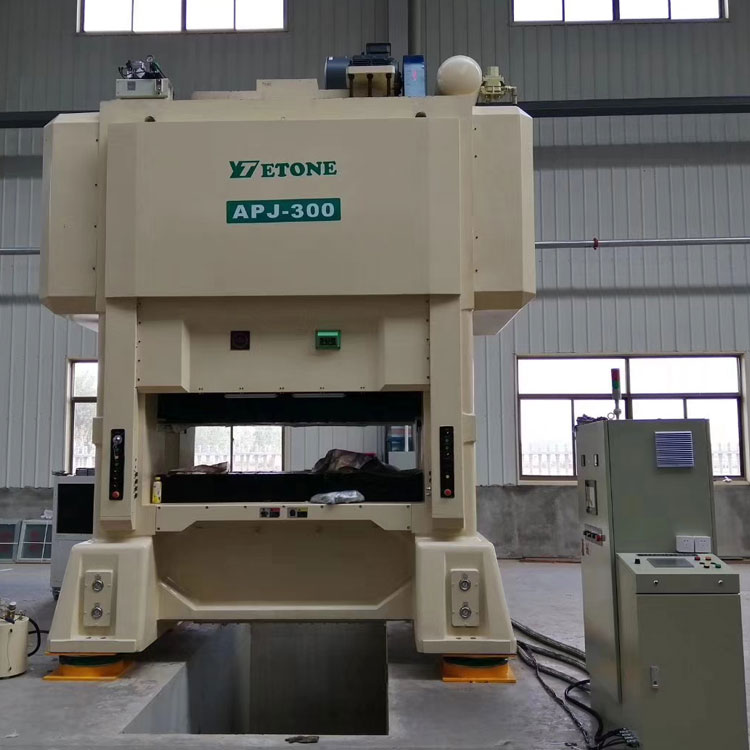

2.High speed punch press Product Parameter:





APJ-220

APJ-300

APJ-350

APJ-400

APJ-450

Tonnage

ton

220

300

350

400

450

Travel

mm

30

30

30

30-50

30-50

Number of strokes per minute

s.p.m

150-600

150-400

150-350

150-350

150-300

Lower table size

mm

1900x1000

2200x1000

2400x1000

2800x1200

3000x1200

Blanking hole

mm

1400x300

2000x300

2200x300

2200x400

2500x400

Sliding block area

mm

1900x750

2200x900

2400x900

2800x1100

3000x1100

Die height adjustment stroke

mm

370-420

400-450

400-450

420-480

450-500

Die height adjustment motor

kw

1.5

2.2

2.2

3.7

3.7

Feeding line height

mm

200土50

210土50

210士50

220土50

270土50

Main motor

kw

45

55

55

75

75



3.Machine Standard accessories

1 Lubrication system: apply high pressure oil from crankshaft center(Japan SHOWA)

2 PLC control system: provide cutting signals

3 Bearing: NSK Japan

4 Oil atomizer: SMC Japan

5 Air switch and contactor: Schnede France

6 Oil seal: NOK Japan

7 Auto-balancing system design

8 Electronic slide adjustment system

9 T-Mobile operating table

10 Hydraulic Slide Locking Device

11 Material Ending Detector

12 Inverter:

13 Electric Clutch valve

14 Clutch structure: (OMPI Italy )

15 Relay: Omron

16 Angle and speed showing: TOYO

17 Air pressure joint: ARK Korea

18 Crankshaft: SNCM8,Grinding Guide: AKS Japan

19 Auto-Thermal Balancing in ram/Slider micro inching position

20 Miss-Feed detector

21 Tool box with machine shipping 1



4.High speed punch press Standard accessories:

1 High Speed Gear Feeder

2 Double rack Uncoiler

3 Straightener with S loop

4 Automatic oil device to die

5 Auto Power Die lifer system:

6 Die Arm system:2 pcs

7 Anti-vibration system

8 Chute controller:

9 Die solenoid valve installation system: 10 pcs



5.Optional Accessories

1. Bottom dead detector

2. Quick die clamping device

3. Safety door

4. Others



Host forward/reverse device

Hydraulic slide lock device

Lubricating oil cooling cycle machine

Italian OMPI int egrated clutch brake

Stand-alone electric control box

Work box

Work lamp

Main motor frequency convertin g control
