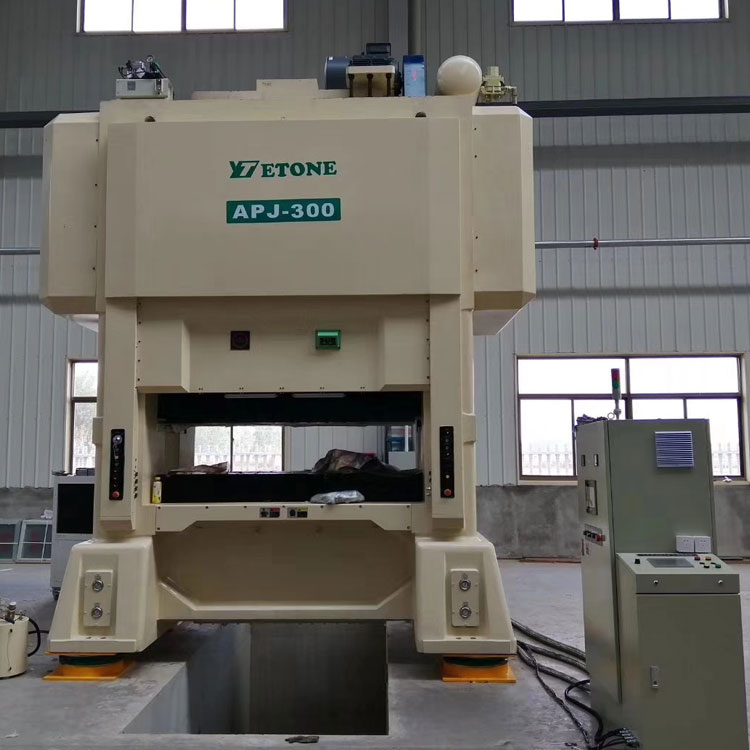

  • Motor Lamination Punch Press - 0 Motor Lamination Punch Press - 0

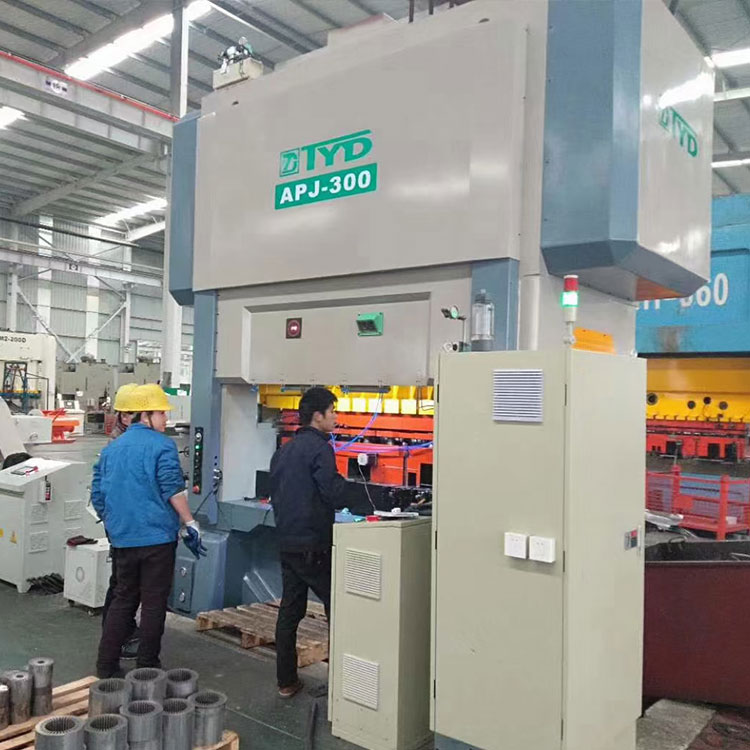

  • Motor Lamination Punch Press - 1 Motor Lamination Punch Press - 1

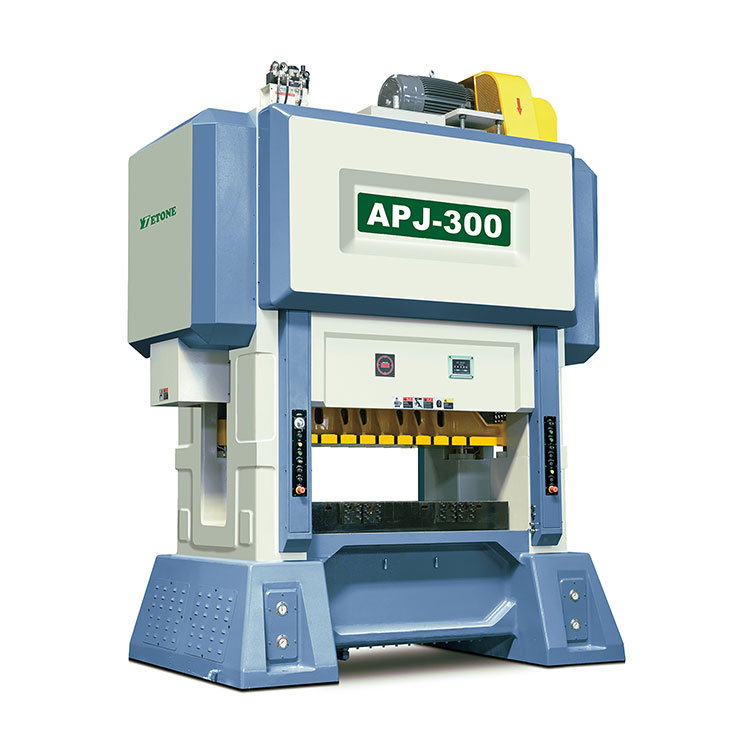

  • Motor Lamination Punch Press - 2 Motor Lamination Punch Press - 2

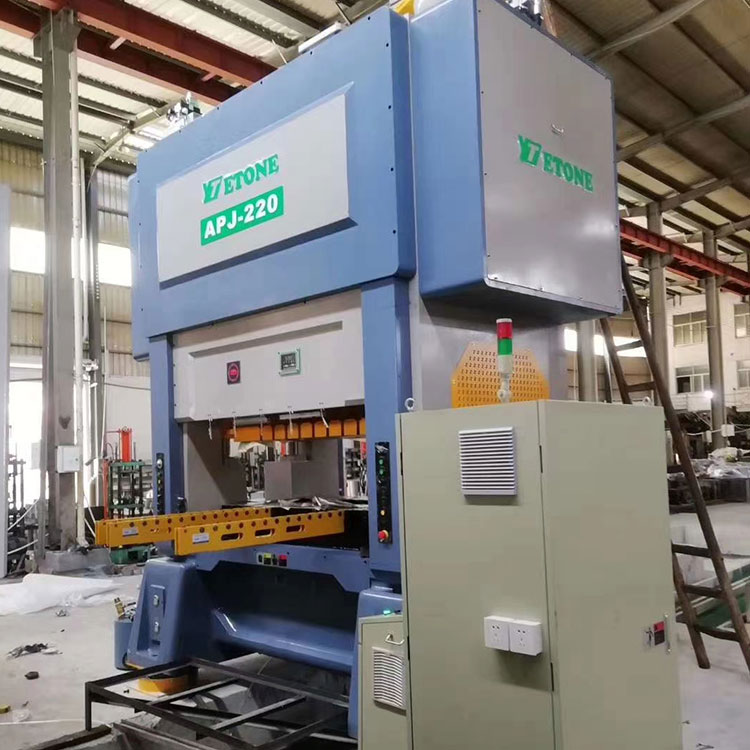

  • Motor Lamination Punch Press - 3 Motor Lamination Punch Press - 3

Motor Lamination Punch Press

Motor Lamination punch press is designed for the laminated rotors and stators of different kinds of motors. It is high speed, high precision. The change gear type, cam indexing roller feed is provided for a wide ranges of feed pitch. Our high Speed Press, high speed Lamination Presses, Straight Side High Speed Double Crank Presses from 25 tons to 500 tons, used in the manufacturer of laminated rotors and stators of electric motors. It maintains a stable and efficiency function of stamping large size stator and rotor, lamination for generator motor and Industrial Motor in large tonnage press area for many years. With cheap price, good service, and good quality, we have won the trust of our customers.

Send Inquiry

Product Description

Motor Lamination Punch Press


1.Product Introduction

The use of Lamination Stamping Complete Line Machine components such as FAG Germany, NSK Japan or NTN Japan bearings in Japan, its high precision, high life characteristics to ensure long-term stability and operability of the support members.



Nowadays, more and more factories use Lamination Stamping Complete Line Machine. Pinch feeder is an essential part of Lamination Stamping Complete Line Machine. There are many kinds of feeder in the market and many styles. Everyone knows what the word "feeder" means, but few people use it correctly.



Now there are many types and specifications of clip feeder in the market. The first choice is to know the key points of installing clip feeder. The direction of installing clip feeder should be from left to right. The position of installation and the end of automatic feeding shaft should be on the left. Don't misplace it.Hot Tags: lamination stamping complete line machine, good brand manufacturer, good factory,


2.Product Parameter





APJ-220

APJ-300

APJ-350

APJ-400

APJ-450

Tonnage

ton

220

300

350

400

450

Travel

mm

30

30

30

30-50

30-50

Number of strokes per minute

s.p.m

150-600

150-400

150-350

150-350

150-300

Lower table size

mm

1900x1000

2200x1000

2400x1000

2800x1200

3000x1200

Blanking hole

mm

1400x300

2000x300

2200x300

2200x400

2500x400

Sliding block area

mm

1900x750

2200x900

2400x900

2800x1100

3000x1100

Die height adjustment stroke

mm

370-420

400-450

400-450

420-480

450-500

Die height adjustment motor

kw

1.5

2.2

2.2

3.7

3.7

Feeding line height

mm

200土50

210土50

210士50

220土50

270土50

Main motor

kw

45

55

55

75

75



3.Peripheral Equipment







Double head Uncoiler

Straightener

Gear feeder





P=feeding length

D=70 (drive wheel diameter)

N1=number of teeth of the first gear

N2=number of teeth of the second gear

N3=number of teeth of the third gear

N4=number of teeth of the fourth gear





Material width

mm

Max .150

Max.200

Max.300

Max.400



Material outer diameter

mm

Max.1200

Max1200

Max 1200

Max 1200



Material inner diameter

mm

450-520

450-520

450-520

450-520



Material speed

M/min

1-60

1- 60

1-60

1-60



Material weight



500kg X 2

1QQQkg X 2

2000kg X 2

3000kg X 2



Leveling roller

Pcs

11

11

11

11



Drive motor



1.5 kw

2 2kw

22kw

30 kw





4.Double-head Uncoiler

Performance description

The model consists of three parts: the spindle box body, the spindle box and the carrier, of which the spindle box is integral and has long axle distance. It features functions such as small volume, small footprint, convenient loading and flexible use


Double hanging structure is applied to fit material roll handling and enable repeated feeding, greatly saving the recharging time, improving the production capacity and reducing the production cost. Unpowered structure is applied, which enables not only use with ordinary straightening machines but also optimal performance with high-speed straightening machine.





TMT-200

TMT-300

TMT-400

TMT-500

TMT-600

Maximum width

mm

200

300

400

500

600

Material thickness

mm

0.2- 1.5

0.2-1.5

0.2-1.5

0.2-1.5

0.2- 1.5

Material weight

mm

1000x2

2000x2

3000x2

4000x2

5000x2

Roller inner diameter

mm

450-530

450-530

450-530

450-530

450-530

Maximum roller outer diameter

mm

1200

1200

1200

1200

1200



5.S type Straightener

performance description

S-type or U-type straightener with the process of " electric signal---> PC---> inverter---> speed change", enabling full synchronization with the press with the speed up to about 60m/min. The model is equipped with a double-head material frame, which is easy to operate and can be completely synchronized with the high-speed press. The use of gear feeder offers better performance.





SLQ-200 SLQ-300

SLQ-400 SLQ-500 SLQ-600

Maximum width

mm

200 300

400 500 600

Material thickness

mm

0  3- 1.6

Roller inner diameter

mm

1200

Leveling speed

m/ min

60

Motor

HP

2 2

3 5 75

Wo卤ng voltage



AC three-phase 22 0V或AC three-phase 380V

AC three-phase 220V or AC three-phase 380V
