Moto core high speed stamping machine

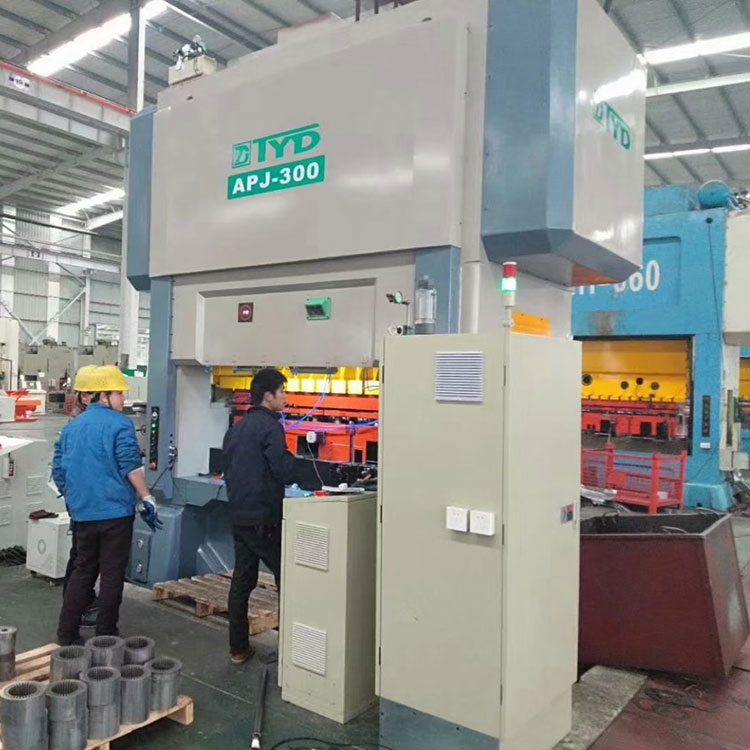

Etone APJ series double crank high Speed Press machines produce different size of stator and rotor, lamination for generator motor and Industrial Motor. Our Moto core high speed stamping machines become the famous brand in China. With the good quality and price, we have exported to many countries and regions. We have two brands TYD & ETONE. With great products and a brilliant team, Etone has grown to be a leader in China's press/punching/high speed lamination press industry now.

Send Inquiry

Product Description

Moto core high speed stamping machine



1.Product Introduction:

1. High Rigidity

High rigidity, high precision frame, welded by steel plate, and after heat treatment, eliminate the internal stress of the bed.



2. Balance Of Gravity Center

The transmission center and the center of the whole machine tend to be the same, so as to ensure the accuracy and stability of stamping.



3. Operation Stability And Safety

Clutch/brake devices are highly sensitive, High Speed Precision Lamination Press coupled with international top double solenoid valves and overload protection devices, to ensure the accuracy and safety of punch slider operation and stop.

The adjusting mechanism of slider has high precision, and the adjusting production is safer and faster.



4. High Precision

Crankshaft, gear, gear shaft and other friction parts are hardened and heat treated before grinding. They have high wear resistance and balance, stable performance, and ensure the quality and life of the punch.



5. High Speed Precision Lamination Press Processing Automation

It can be matched with any automatic feeding mechanism to automate production, reduce costs and improve efficiency.


2.Optional Configuration:

1. Gear Feeder(Width Selection: 150/200/300/400)

2. NC Servo Feeder (Single/Double)

3. Double Head Uncoiler (Hydraulic/Manual) (Width Selection: 200/300/400)

4. S-Type Straightener

5. Press Load Monitor

6. Bottom Dead Center Monitor

7. Air Cooler for Electric Cabinet

8.Main Motor



3.Specification:




APJ-220

APJ-300

APJ-350

APJ-400

APJ-450

Tonnage

ton

220

300

350

400

450

Travel

mm

30

30

30

30-50

30-50

Number ofstrokes perminute

s.p.m

150-600

150-400

150-350

150-350

150-300

Lower table size

mm

1900x1000

2200x1000

2400x1000

2800x1200

3000x1200

Blanking hole

mm

1400x300

2000x300

2200x300

2200x400

2500x400

Slidingblockarea

mm

1900x750

2200x900

2400x900

2800x1100

3000x1100

Die height adjustment stroke

mm

370-420

400-450

400-450

420-480

450-500

Die height adjustment motor

kw

1.5

2.2

2.2

3.7

3.7

Feeding line height

mm

200土50

210土50

210士50

220土50

270土50

Main motor

kw

45

55

55

75

75


4.Machine Standard accessories

1Lubrication system: apply high pressure oil from crankshaft center(Japan SHOWA)

2PLC control system: provide cutting signals

3Bearing: NSK Japan

4Oil atomizer: SMC Japan

5Air switch and contactor: Schnede France

6Oil seal: NOK Japan

7Auto-balancing system design

8Electronic slide adjustment system

9T-Mobile operating table

10Hydraulic Slide Locking Device

11Material Ending Detector

12Inverter:

13Electric Clutch valve

14Clutch structure: (OMPI Italy )

15Relay: Omron

16Angle and speed showing: TOYO

17Air pressure joint: ARK Korea

18Crankshaft: SNCM8,Grinding Guide: AKS Japan

19Auto-Thermal Balancing in ram/Slider micro inching position

20Miss-Feed detector

21Tool box with machine shipping1


5.Standard accessories:

1High Speed Gear Feeder

2Double rack Uncoiler

3Straightener with S loop

4Automatic oil device to die

5Auto Power Die lifer system:

6Die Arm system:2 pcs

7Anti-vibration system

8Chute controller:

9Die solenoid valve installation system: 10 pcs



6.Optional Accessories

1.Bottom dead detector

2.Quick die clamping device

3.Safety door

4.Others
