High Speed Press Motor Lamination

High speed press motor lamination is designed for the laminated rotors and stators of electric motors. It is high speed with high precision, change gear type, cam indexing roller feed is provided for different feed pitch. 550 tons high speed press motor lamination can be with NC servo feeder, straightener and decoiler with whole line production line. We also can offer you the Stamping Die and Tool. With the company's strict quality, good price and perfect after sale service, our high-speed press has won the recognition and trust of many customers in domestic market and abroad, and its products have been exported to more than 30 countries and regions.

Send Inquiry

Product Description

High Speed Press Motor Lamination


1.Product introduction

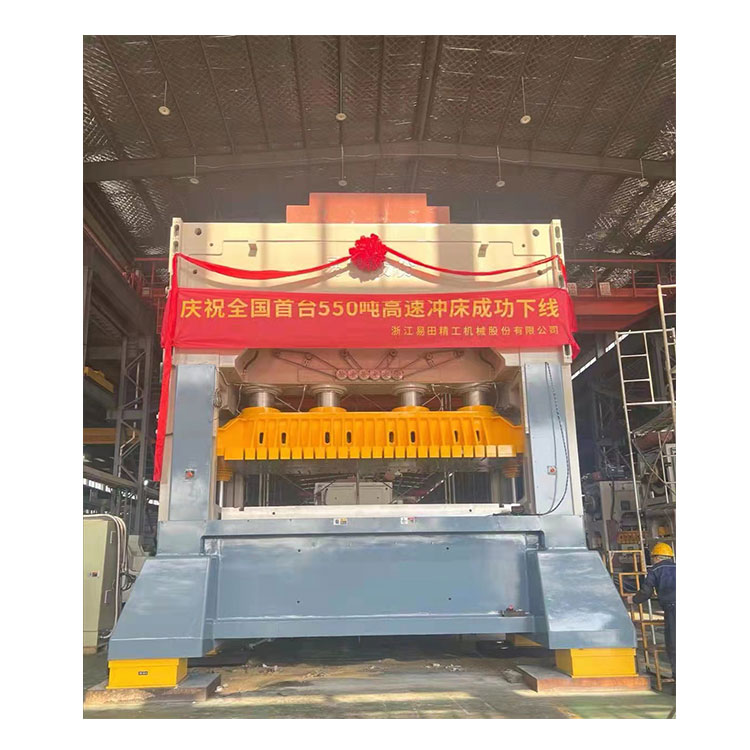

We are the first and biggest high speed press machine manufacturer in China. The 550 tons high speed press motor lamination is for a famous mould /Die factory in Ningbo China. This High speed press motor lamination is using high-strength cast iron frame, strong overall frame structure. After stress relief, it ensures long-term precision, material stability and accuracy.


This high speed press machine stamping accuracy is within 0.015mm, or even 0.01mm, the vertical accuracy is up to 1.2 wires, and the maximumspeedis 1300 times / min.It is mostly suitable for continuous stamping production.


2.Specification:





APJ-220

APJ-300

APJ-350

APJ-400

APJ-450

Tonnage

ton

220

300

350

400

450

Travel

mm

30

30

30

30-50

30-50

Number ofstrokes perminute

s.p.m

150-600

150-400

150-350

150-350

150-300

Lower table size

mm

1900x1000

2200x1000

2400x1000

2800x1200

3000x1200

Blanking hole

mm

1400x300

2000x300

2200x300

2200x400

2500x400

Slidingblockarea

mm

1900x750

2200x900

2400x900

2800x1100

3000x1100

Die height adjustment stroke

mm

370-420

400-450

400-450

420-480

450-500

Die height adjustment motor

kw

1.5

2.2

2.2

3.7

3.7

Feeding line height

mm

200土50

210土50

210士50

220土50

270土50

Main motor

kw

45

55

55

75

75



3.Machine Standard accessories

1Lubrication system: apply high pressure oil from crankshaft center(Japan SHOWA)

2PLC control system: provide cutting signals

3Bearing: NSK Japan

4Oil atomizer: SMC Japan

5Air switch and contactor: Schnede France

6Oil seal: NOK Japan

7Auto-balancing system design

8Electronic slide adjustment system

9T-Mobile operating table

10Hydraulic Slide Locking Device

11Material Ending Detector

12Inverter:

13Electric Clutch valve

14Clutch structure: (OMPI Italy )

15Relay: Omron

16Angle and speed showing: TOYO

17Air pressure joint: ARK Korea

18Crankshaft: SNCM8,Grinding Guide: AKS Japan

19Auto-Thermal Balancing in ram/Slider micro inching position

20Miss-Feed detector

21Tool box with machine shipping1


4.Standard accessories:

1High Speed Gear Feeder

2Double rack Uncoiler

3Straightener with S loop

4Automatic oil device to die

5Auto Power Die lifer system:

6Die Arm system:2 pcs

7Anti-vibration system

8Chute controller:

9Die solenoid valve installation system: 10 pcs



5.Optional Accessories

1.Bottom dead detector

2.Quick die clamping device

3.Safety door

4. Others
