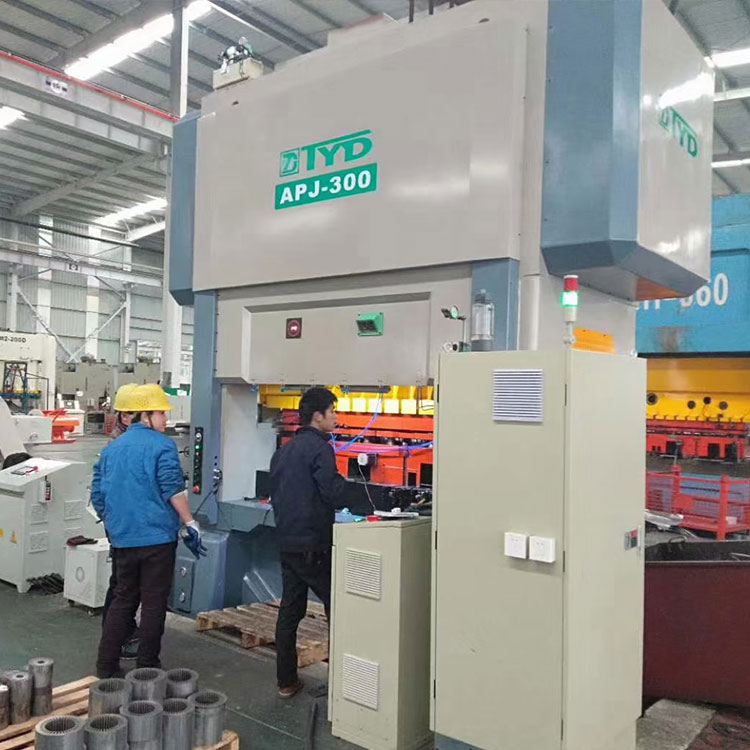

  • High Speed Press Machine - 0 High Speed Press Machine - 0

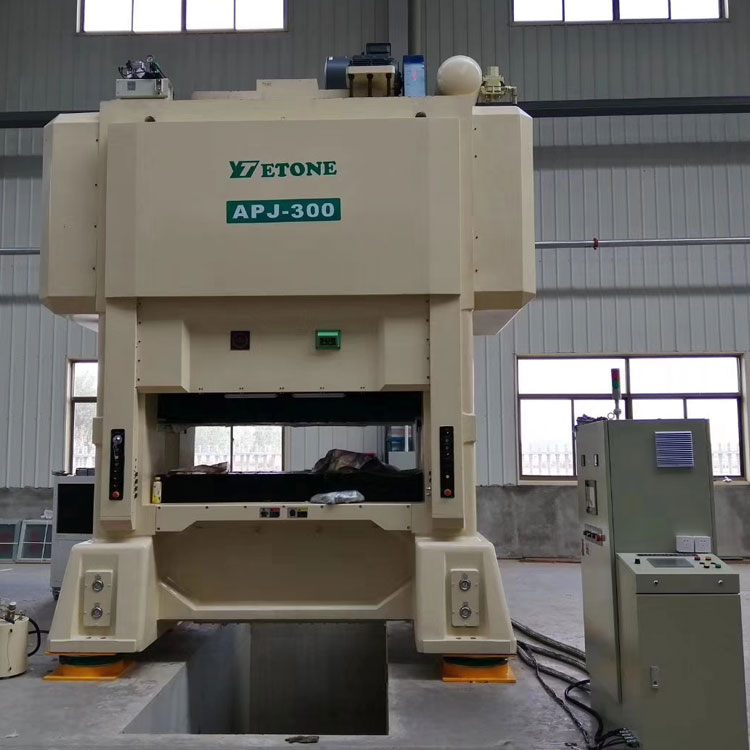

  • High Speed Press Machine - 1 High Speed Press Machine - 1

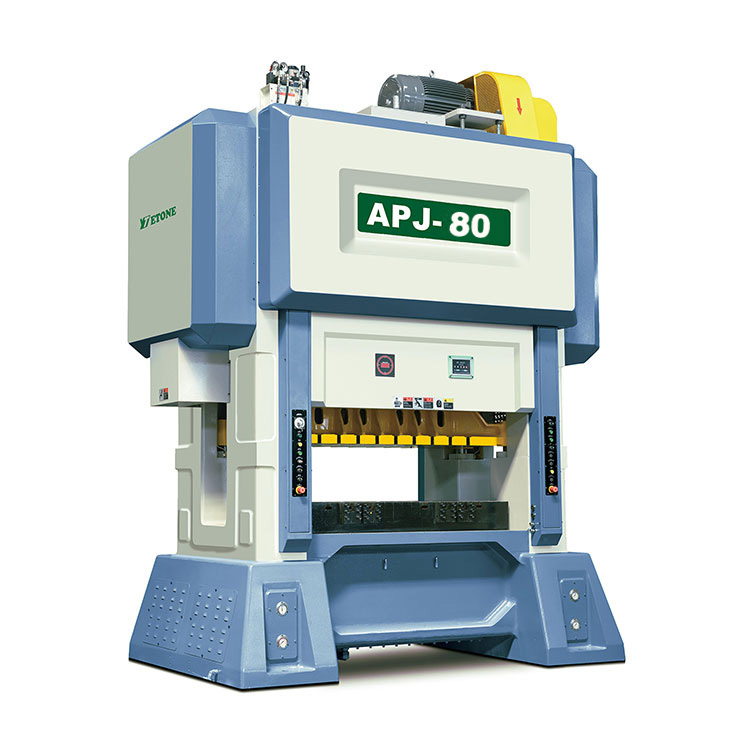

  • High Speed Press Machine - 2 High Speed Press Machine - 2

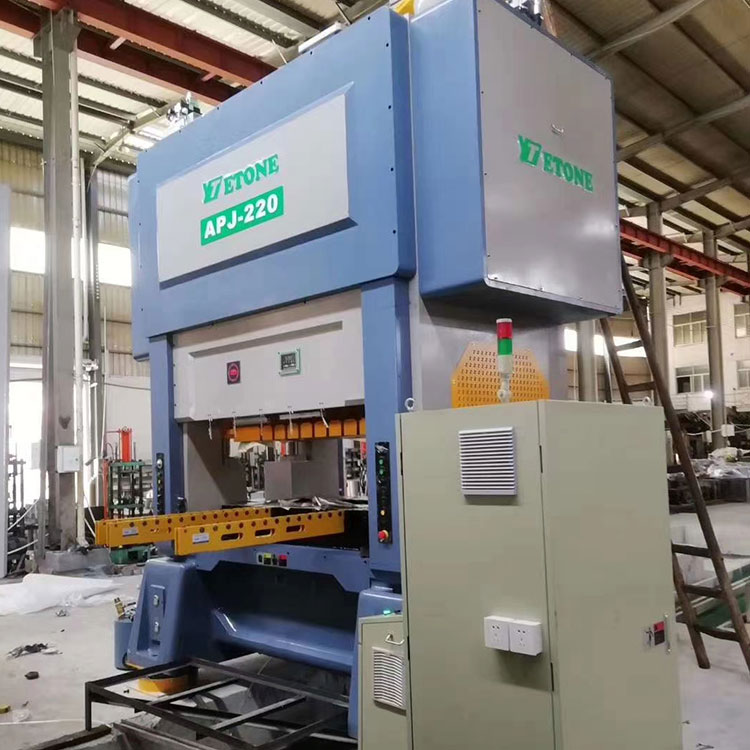

  • High Speed Press Machine - 3 High Speed Press Machine - 3

High Speed Press Machine

We are a high speed press machine factory in China. Our press Frame, crown, uprights and bed are made of high quality cast iron. The frame is hydraulically pre-stressed by tie rods and nuts to ensure superior rigidity during high precision progressive blanking. With good price, good service, and good quality, we have won the trust of all our customers. Welcome to buy High Speed Press Machine from us.

Send Inquiry

Product Description

High Speed Press Machine



1.Product Description

Our high Speed Press machine, Straight Side High Speed Double Crank Presses from 60 tons to 500 tons, specially for the manufacture of Home Appliance Motor, Electric Tool Motor, Fan Motor, Auto Motor, Pump Motor, DC Brushless Motor, DC Motor, etc. It maintains a stable and efficiency function of stamping large size stator and rotor, lamination for generator motor and Industrial Motor in large tonnage press area for many years.


2.Product Parameter:





APJ-60

APJ-80

APJ-125

APJ-150

APJ-200

Tonnage

ton

60

80

125

150

200

Travel

mm

30

30

30

30

30

Number of strokes per minute

s.p.m

200-800

200-700

150-700

150-600

150-600

Lower table size

mm

950x650

1100x750

1200x850

1400x850

1700x950

Blanking hole

mm

700x125

800x150

1000x200

1200x200

1300x250

Sliding block area

mm

950x420

1100x500

1200x600

1400x600

1700x700

Die height adjustment stroke

mm

300-350

330-380

360-410

360-410

370-420

Die height adjustment motor

kw

0.4

0.75

0.75

0.75

15

Feeding line height

mm

160

175土50

195土50

195土50

200土5 0

Main motor

kw

19

22

30

37

45



3.Machine Standard accessories

1 Lubrication system: apply high pressure oil from crankshaft center(Japan SHOWA)

2 PLC control system: provide cutting signals

3 Bearing: NSK Japan

4 Oil atomizer: SMC Japan

5 Air switch and contactor: Schnede France

6 Oil seal: NOK Japan

7 Auto-balancing system design

8 Electronic slide adjustment system

9 T-Mobile operating table

10 Hydraulic Slide Locking Device

11 Material Ending Detector

12 Inverter:

13 Electric Clutch valve

14 Clutch structure: (OMPI Italy )

15 Relay: Omron

16 Angle and speed showing: TOYO

17 Air pressure joint: ARK Korea

18 Crankshaft: SNCM8,Grinding Guide: AKS Japan

19 Auto-Thermal Balancing in ram/Slider micro inching position

20 Miss-Feed detector

21 Tool box with machine shipping 1


4.Standard accessories:

1 High Speed Gear Feeder (Width Selection: 150/200/300/400)

2 Double heads Uncoiler

3 Straightener with S loop (Width Selection: 200/300/400)

4 Automatic oil device to die

5 Auto Power Die lifer system:

6 Die Arm system:2 pcs

7 Anti-vibration system

8 Chute controller:

9 Die solenoid valve installation system: 10 pcs



5.Optional Accessories

1. Servo Feeder

2. Bottom dead detector

2. Quick die clamping device

3. Safety door

4. Skew chut
