High Precision Press Machine

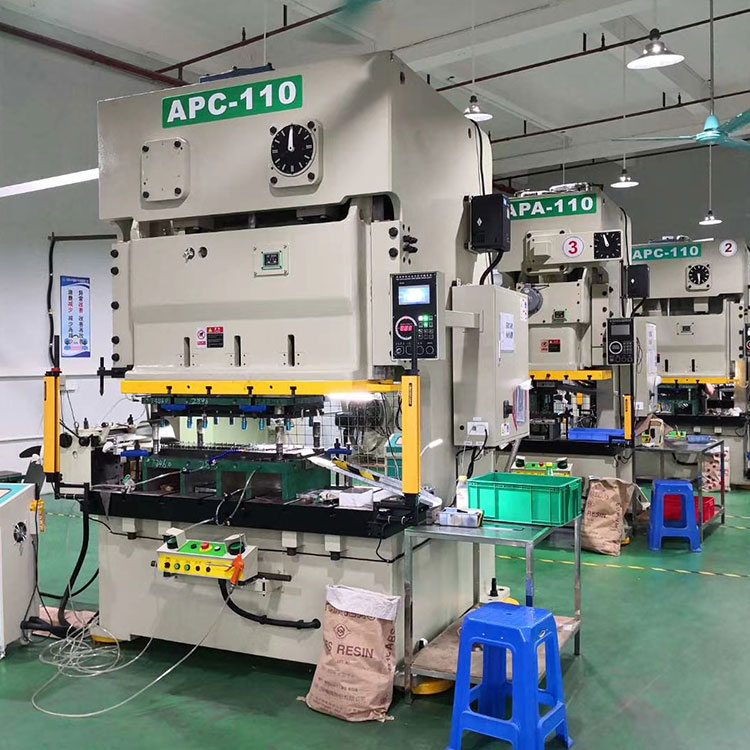

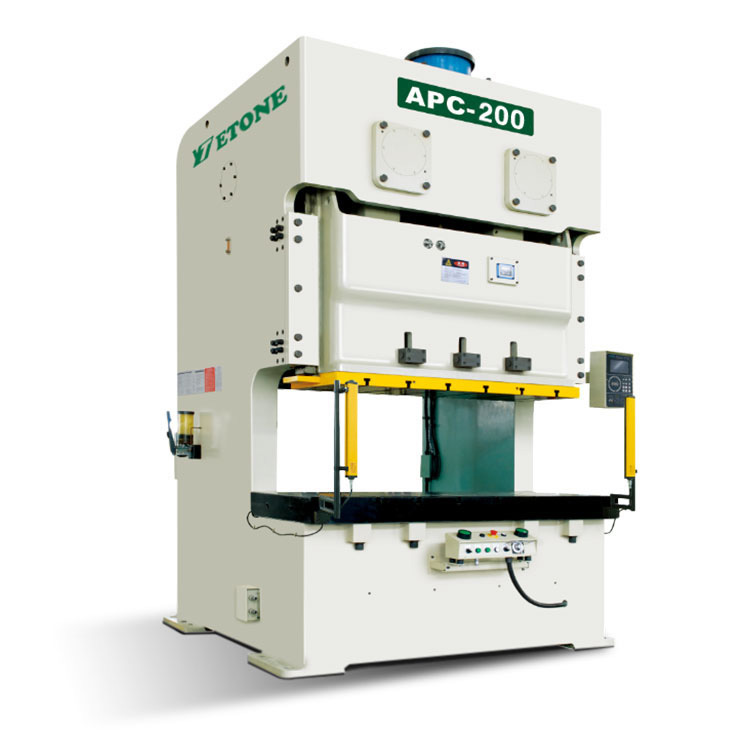

Our APC series are high precision press machine of open type double crank. It is very popular in our factory.

Send Inquiry

Product Description

High Precision Press Machine

Responsible excellent and fantastic credit rating standing are our principles, which will help us at a top-ranking position. Adhering towards the tenet of "quality initial, buyer supreme" for OEM/ODM Factory China H Frame High Speed Precision Stamping Power Press Machine with Decoiler and Roll Feeder Machine for Eyelet Prodcution Line, With a wide range, high quality, sensible costs and stylish designs, our solutions are extensively used with this industries and other industries. OEM/ODM Factory China Punch Machine, Punching Machine, Excellent quality, competitive price, punctual delivery and dependable service can be guaranteed. For further inquires please do not hesitate to contact us. Thank you - Your support continuously inspires us.

1.Product Description

1. High precision: In strict accordance with Japanese JIS first level accuracy standards, our press machine has better performance than domestic standard. All the main components are processed through imported CNC equipment.


2. 3 Smooth and durable running: The use of balance device allows the slider and mould to run without gravity.


3. High rigidity, strong stability: Scientific structural design and high requirement welding processing make enough safety of our machine. Together with world top level overload automatic cut-off device, our machine is permanently guaranteed of free from deformation.


3. Smooth and durable running: The use of balance device allows the slider and mould to run without gravity.


4. High anti-eccentric ability: Long alloy cooper guide way assures slider moving more balance and smooth, ensuring more stable and long-term accuracy.


5. Low noise: All transmission gears are grinded by Germany brand precision grinding machine, guaranteeing their engagement ratio and improving high service life.


6. Stable and durable clutch and brake system: Advanced professional pneumatic clutch brake coupled with imported TACO solenoid valve gives itself high sensitivity and long service life, free from accidental like continuous stroke.


7. Superb quality overload protection device: World top level overload protection device can detect the exceeded pressure within 0.01s and quickly protect.


2.Product Parameter





APC-110

APC-160

APC-200

APC-250

Model



V type

I H type

V type H type

V typeI H type

V type

I H type

Tonnage

Ton

110

160

200

250

Rated tonnage point

mm

5

3

6

3

6

3

7

3.5

Stroke length

mm

180

110

200

130

250

150

280

170

Stroke

sp.m

35-65

50-100

30-55

40-85

25-45

35-70

20-35

30-60

Max Die height

mm

400

435

450

485

500

550

550

605

Slider adjustment volume

mm

100

100

120

120

Slide table size

mm

1800 X 650 X 130

2000 X 760 X 150

2400 X 840 X 170

2700 X 900 X 170

Bolster table size

mm

1400 X 500 X 70

1600 X 550 X 70

1850 X 650 X 95

2100 X 700 X 95

Main motor

kW

11

15

18 5

22

Supply air pressure

kg/ cm2

5

5

5



5

Precision



JIS 1 class

Die cushion type



Two plate & two cylinders

Capacity

Ton

3.6 X 2

6.3 X 2

10 X 2



14 X 2

Air pressure

kg/ cm2

6.5

7.2

6.75

9

Stroke

mm

70

70

80

100

Die cushion top plate area

mm2

350

X 235 X 2

41Q X 260 X 2

540 X 350 X

640

x 470 x 2
