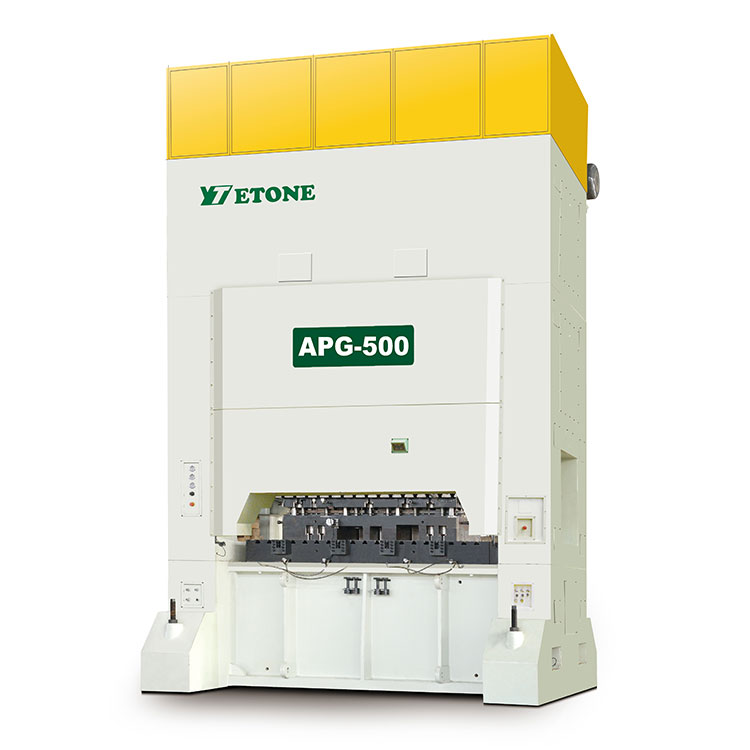

Straight Type Press

Capacity:, 400 tons, 500 tons, 600 tons, 800 tons
Our APG series is straight type press,power press machine. They have capacity 400 tons, 500 tons, 600 tons, 800 tons.

Send Inquiry

Product Description

Straight Type Press

Our mission is usually to turn into an innovative provider of high-tech digital and communication devices by providing worth added design and style, world-class producing, and repair capabilities for Manufactur standard China 160 Ton Gantry Type Press for Stamping Parts Straight Cutting, We look forward to establish a long-term business relationship with your esteem co-operation. Manufactur standard China Gantry Type Press, Press, Our products have enjoyed a great reputation for their good quality, competitive prices and prompt shipment in international market. Presently, we have been sincerely looking forward to cooperating with more overseas customers based on mutual benefits.

1.Straight type press Introduction:

Straight type press has the characteristics of small change of mold height, small deviation of dynamic center, small amount of stamping deformation, and low noise of blanking cutting. The fixed-lock six-sided guide rail and high-rigidity body realize high-precision stamping of the product, and the life of the mold is also greatly improved.



2.Straight type press Features:

 High torque dry clutch & brake.

 Quick response overload protector.

 Box type six-point gib.

 Bolt-to-the-bolster die cushion.

 The superior rigidity provides the frame deflection to keep die height and dynamic off-center load deviation with a minimized amount.


3.Straight type press Product Parameter:





APG-400

APG-500

APG-600

APG-800

Tonnage

KN

400

500

600

800

Rated tonnage point

mm

3

3

2

2

Number of strokes per minute

s.p.m Speed regulation

80-160

70-140

70-120

60-100

Stroke

mm

40

40

50

50

Maximum closed working height

mm

520

520

580

600

Slider adjustment volume

mm

100

100

110

120

Upper table area

mm

2700*1100

3000*1200

3200* 1300

3600*1500

Lower table area

mm

2700*1200

3000*1300

3200*1400

3600*1600

Side opening size

mm

700

800

1000

1200

Main motor

kw*p

55

75

90

110

Base blanking hole

mm

2300*500

2600*580

2800*620

3200* 680

Maximum die feeding weight

kg

2000

2700

3200

3600

Applied air pressure

kg/ cm2

6

6

6

6
