Double Crank Power Press

Capacity:, 400 tons, 500 tons, 600 tons, 800 tons
The following is an introduction to Double Crank Power Press, I hope to help you better understand Double Crank Power Press. Welcome new and old customers to continue to cooperate with us to create a better future together!

Send Inquiry

Product Description

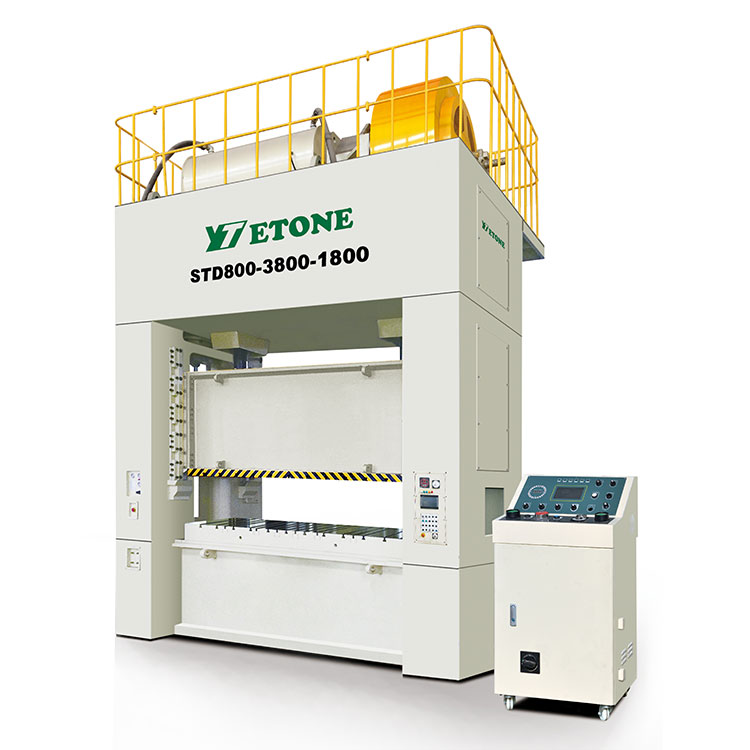

Double Crank Power Press



1.Double Crank Power Press Introduction:

STD series capacity are 250tons, 300 tons, 400 tons and 500 tons. They are  crank press machine, H frame press, straight side double crank power press, high precision stamping machine.



2.Double Crank Power Press Features:

 Easy operation, humanized design of control system.


 Continuous and inching movement mode, satisfying different operational requirements.


 Big size bolster and slider area with reasonable T slot deployment adapt to varieties of tool installation.


 Imported PLC cooperated with imported cam switch provides powerful and any-time programmable function, reserving enough room for expansion.


 Easy die height adjustment. Easy and quick electrical or manual adjustment device, reading accuracy is up to 0.1mm.


 Digital die height indicator reflects die height at any time.


 Electronic crankshaft angle display shows the travel location at any time, obvious to observe its position.


 The configuration of frequency motor allows you to change the stroke speed at any time to adapt to different stamping process demand.


 Centralized lubrication device ensures all moving parts lubricated timely, reducing machine wear and prolong its service life.


 Instructional slider motion function can make all online presses connected smoothly.


 Air blowing device automatically blows away work-piece wastage, protecting mould safety as well as improving production efficiency.


 Miss feed detection function will remind abnormal situation and quickly stop the press to protect mould safety, reducing waste.


 Electromagnetic stroke counter and preset counter make your production management more convenient.


 When motor lack of power or with low rotational speed, slider will automatically stop moving


 Lower tool pneumatic knock-out device and upper tool mechanical knock-out device make part ejection easily realized.


 If clutch wear, automatic alarm occurs to stop the press


 Extremely high affinity to surrounding automatic equipment enables unmanned operation, greatly enhanced work efficiency.


3.Double Crank Power Press Parameter:





STD-400

STD-500

STD-600

STD-800

Model



S type

H type

S type

H type

S type



H type

S type



H type

Tonnage

ton

400

500

600

800

Rated tonnage point

mm

13

7

13

7

13

9

13

9

Stroke length

mm

400

300

400

300

400

300

400

250

Number of strokes

spm

15-30

30---60

15-30

30-60

15--30

25--50

15-30

25--50

Maximum die height

spm

600

650

650

700

650

700

700

700

Slider adjustment volume

mm

150

200

200

200

Upper table size

mm

2800x1300

3100x1400

3600x1400

3600x1600

Lower table size

mm

2800x1400

3100x1500

3600x1500

3800x1800

Side opening

mm

850x600

950x650

1000x700

1000x800

Die cushion capacity

mm

60

70



80





80
