Straight Slide Double Crank Power Press

Capacity:, 400 tons, 500 tons, 600 tons, 800 tons
STD series capacity are 250tons, 300 tons, 400 tons and 500 tons. They are Straight slide double crank power press, H frame press, straight side double crank power press, high precision stamping machine.

Send Inquiry

Product Description

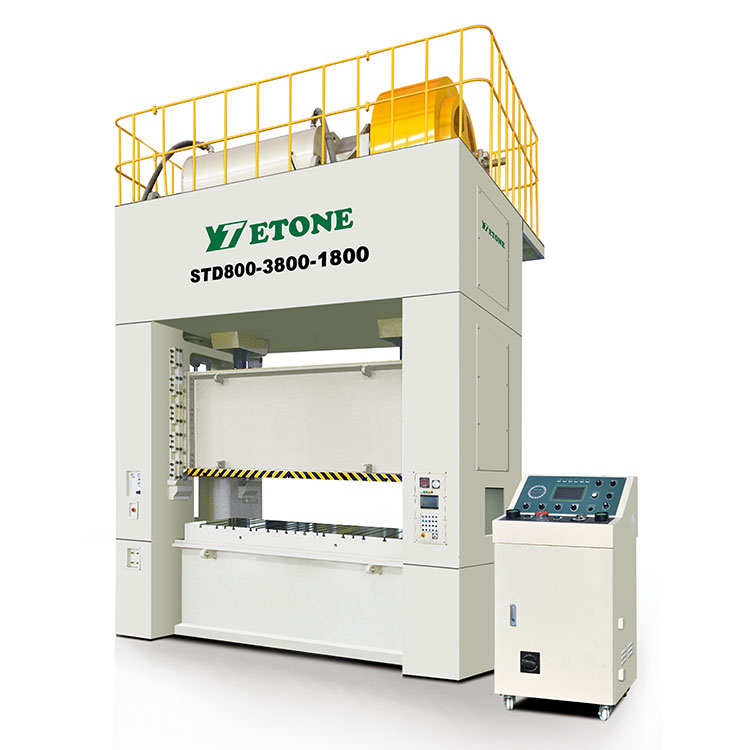

Straight Slide Double Crank Power Press

We've been committed to offering easy,time-saving and money-saving one-stop purchasing service of consumer for Reliable Supplier China 600 Ton Straight Side Double Point Punching Power Press Machine, Many years of work experience, we have realized the importance of giving top quality solutions and also the ideal before-sales and after-sales solutions. Reliable Supplier China Pneumatic Power Machine, Power Press Machine, We aim to become the modern enterprise with the commercial ideal of "Sincerity and confidence" and with the aim of "Offering customers the most sincere services and best quality products". We sincerely ask for your unchanged support and appreciate your kind advice and guidance.

1.Straight slide double crank power press Introduction:

 The clutch/brake device of the high-precision steel frame press is highly sensitive, the slider adjusting mechanism is adjusted to high precision, and the production is to be safer and faster. The crankshaft, gear, gear shaft and other friction parts of closed double-crank precision press are hardened and heat-treated and then ground.


 Straight slide double crank power press has high wear resistance and balance, stable performance, ensuring the quality and service life of CNC press machine. The high performance power press punching machine can be equipped with an automatic feeder and engaged in automatic transfer of the entire production line.


2.Straight slide double crank power press Features:

 Wide bed for large tools.

 Straight slide steel frame with superior rigidity in one piece or with separated members like the crown, bed, uprights connected by four tie rods pre-stressed hydraulically with nuts.

 Low-inertia, fast-response, and air-cooled separate clutch & brake.

 High-performance hydraulic overload protection.

 Double-geared and twin-end driven gear arrangements.

 Extra-long, 8-face slide gibbing.

 Provision for the automatic feed system and the quick die change system.



3.Straight slide double crank power press Parameter:





STD-400

STD-500

STD-600

STD-800

Model



S type

H type

S type

H type

S type



H type

S type



H type

Tonnage

ton

400

500

600

800

Rated tonnage point

mm

13

7

13

7

13

9

13

9

Stroke length

mm

400

300

400

300

400

300

400

250

Number of strokes

spm

15-30

30---60

15-30

30-60

15--30

25--50

15-30

25--50

Maximum die height

spm

600

650

650

700

650

700

700

700

Slider adjustment volume

mm

150

200

200

200

Upper table size

mm

2800x1300

3100x1400

3600x1400

3600x1600

Lower table size

mm

2800x1400

3100x1500

3600x1500

3800x1800

Side opening

mm

850x600

950x650

1000x700

1000x800

Die cushion capacity

mm

60

70



80





80
