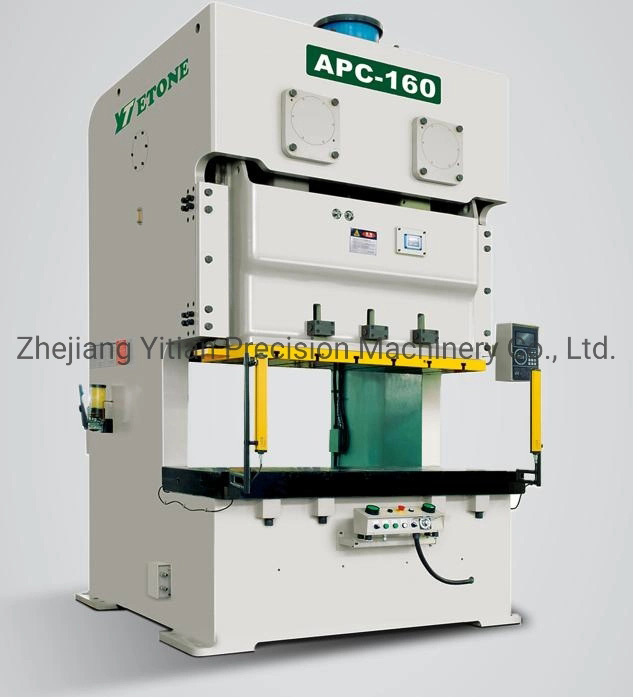

Double Crankshaft Precision Steel Frame Press

Double Crankshaft Precision Steel Frame Press has high-rigidity frame design, welded with high-quality steel and processed by the process of eliminating internal stress. Improve the precision stability and reliability of the machine. The center of the drive is aligned with the center of the machine to ensure accurate and stable punching.

Send Inquiry

Product Description

Double Crankshaft Precision Steel Frame Press Description:
The high-rigidity frame design, welded with high-quality steel and processed by the process of eliminating
internal stress. Improve the precision stability and reliability of the machine. The center of the drive is aligned
with the center of the machine to ensure accurate and stable punching.

• To ensure the relative stability of the machine operation, the symmetrical two slide rails and the balancer device design are applied.

• The die precision may be up to 0.1 mm and is safe, convenient and reliable.

• The crankshaft, the gear set, the connecting rod, etc. are processed by oxidation and grinding, and have extremely high comprehensiveness and wear resistance performance;

• Highly sensitive and reliable clutch/brake device and internationally leading double solenoid valve and overload protection device are applied to ensure the accuracy and safety of the operation and stop of the press slide;

• The machine structure is designed reasonably, which is convenient for automatic production, reducing costs and improving efficiency;

• Advanced design concept, low noise, low consumption and energy saving.

Double Crankshaft Precision Steel Frame Press Technical Parameters

Model   APC-160
Model   V    H
Tonnage Ton 160
Rated tonnage point mm 6        3
Stroke length mm 200      130
Number of strokes s.p.m 30-55   40-85
Maximum die height mm 450     485
Slider adjustment volume mm 100
Lower table size mm 2000x760x150
Upper table size mm 1600x550x70
Main motor kW 15
Supply air pressure kg/cm2 5
Precision   JIS(CNS) 1 class
Die cushion type   Two plate & two cylinders
Capacity Ton 6.3x2
Air pressure kg/cm2 7.2
Stroke mm 70
Die cushion top plate area mm2 410x260x2

Warranty Policy:

Since the buyer's final acceptance date, our company implements the products after sale service. The warranty period is one year.  (Except for improper operation or artificial damage by the buyers.)
