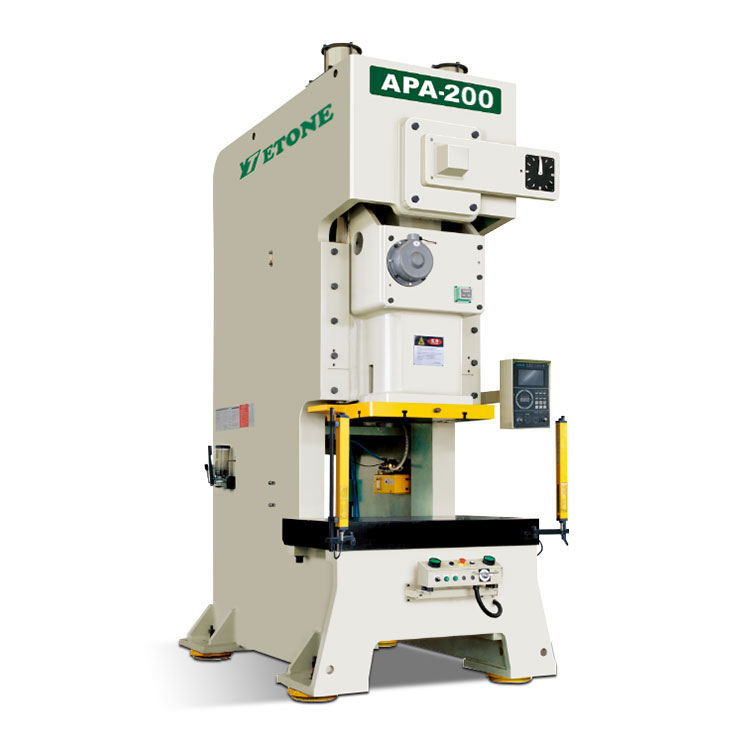

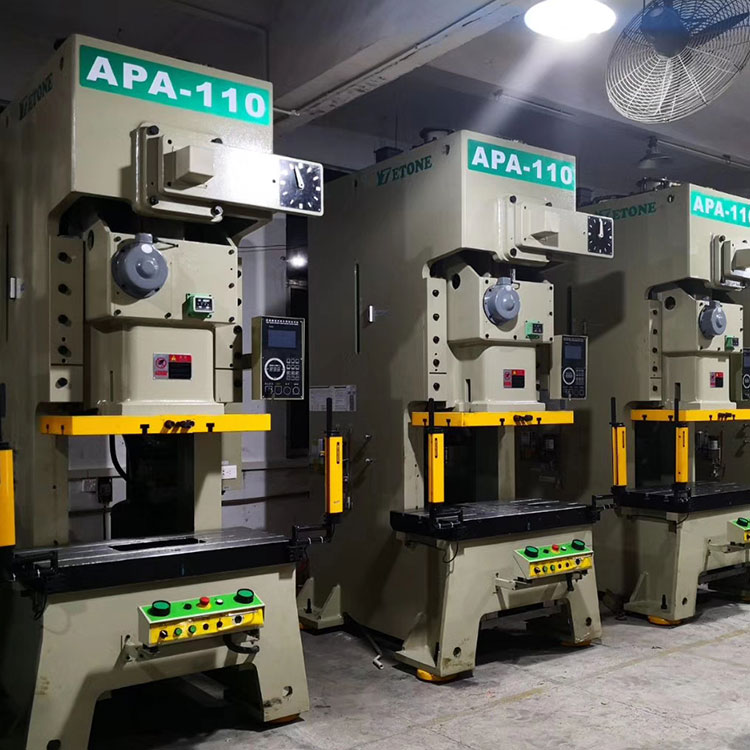

Single Crank Punch Press

Single crank press is the high-rigidity frame design, welded with high-quality steel and processed by the process of eliminating internal stress. Improve the precision stability and reliability of the machine. The center of the drive is aligned with the center of the machine to ensure accurate and stable punching. Besides Chinese domestic market, our press machines are also exported to Middle East, Europe and America.Welcome to buy Single Crank Punch Press from us.

Send Inquiry

Product Description

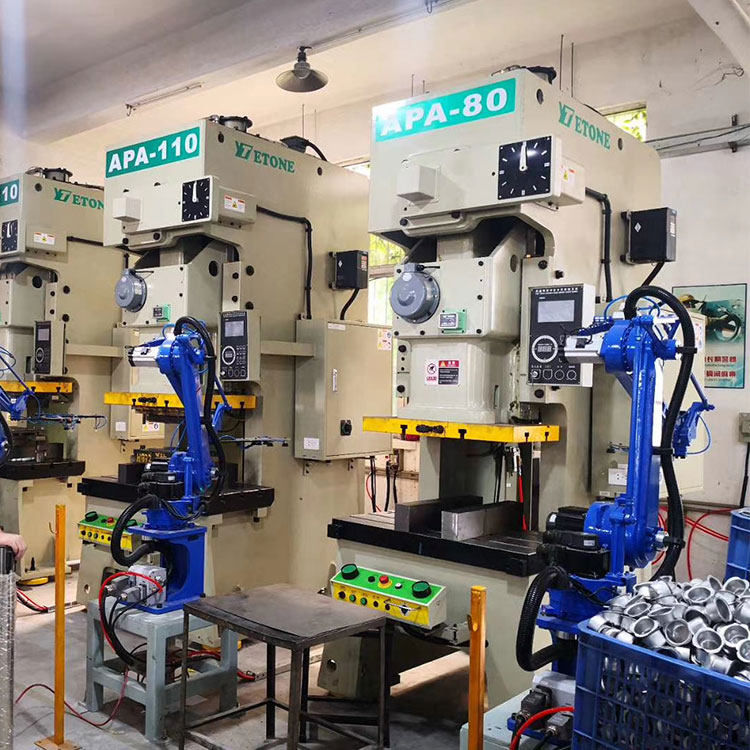

Single Crank Punch Press



1.Product Description

Single crank press is the high-rigidity frame design, welded with high-quality steel and processed by the process of eliminating internal stress. Improve the precision stability and reliability of the machine. The center of the drive is aligned with the center of the machine to ensure accurate and stable punching. Besides Chinese domestic market, our press machines are also exported to Middle East, Europe and America.



2.Product features:

(1) To ensure the relative stability of the machine operation, the two slide rails and the balancer device design are applied

(2) The die precision may be up to 0.1mm and is safe, convenient and reliable

(3) The crankshaft, the gear set, the connecting rod, etc. are processed by oxidation and grinding, and have extremely high comprehensiveness and wear resistance performance;

(4) Highly sensitive and reliable clutch/ brake device and internationally leading double solenoid valve and overload protection device are app­lied to ensure the accuracy and safety of the operation and stop of the press slide;

(5)The machine  structure  is  designed reasonably,  which is convenient f or automatic product ion, reducing cost s and improving efficiency;

(6) Advanced design concept, low noise, low consumption and energy saving


3.Product Parameter:

Name



APA-80

APA-110

APA-160

Model



V type

H type

V typeI H type

V type H type

Tonnage

Ton

80

110

160

Rated tonnage point

mm

4

2

6 3

6 13

Variable speed

s.p.m

35-80

80-120

30-60   60-90

20-50  40-70



Stable  speed

s.p.m

65

50

35

Stroke

mm

150

70

180 80

200 90

Max Die height

mm

340

380

360 410

400 450

Slider adjustmen

mm

80

80

100

Slide size

mm

560 x 420 x 70

650x470x80

700x550x90

Bolster size

mm

1000x550x90

1150x600x110

1250x760x140

Die handle hole

mm

 50

50

50

Main motor

kw

7.5

11

15

Slider adjustment device

HP



Applied air pressure

kg/ cm2

6

6

6

Press precision



GB(JIS)1class

GB(JIS)1class

GB(JIS)1class

Size (LxWxH)

mm

1800x1180 x 280 0

1 900x 13 0 0 x 3200

2300x 140x 3650

Die cushion capacity

Ton

   3.6

6.3

10

Die cushion stroke

mm

    70

80

80

Die cushion effective area

mm2

   450x 310

500x350

650x 420
