One Point Gap Frame Press

Etone one point gap framepress is widely used in production process like drawing, bending, marking, flattening, and trimming. This C frame press machine can be operated under safety one stroke or continuous mode.

Send Inquiry

Product Description

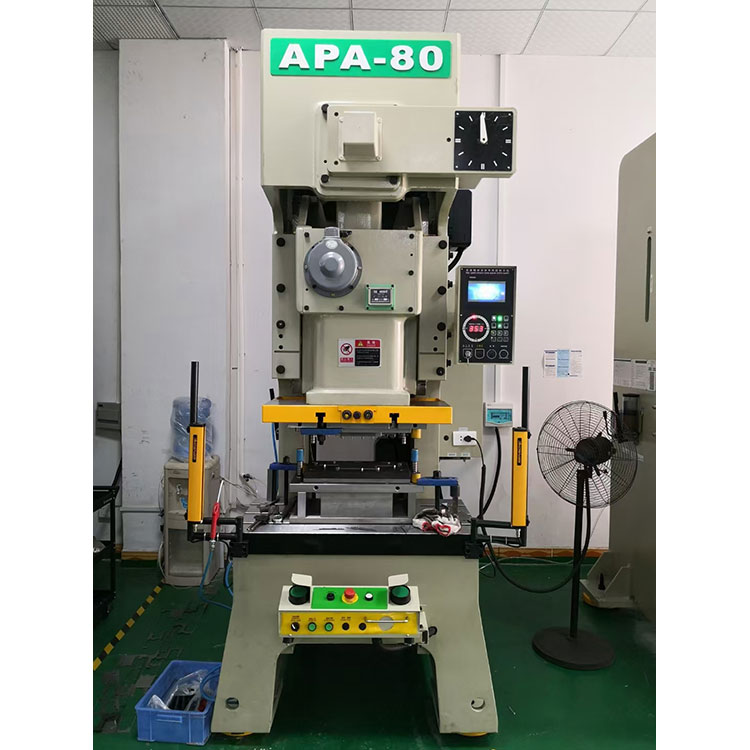

One Point Gap Frame Press



1.Product Introduction

Etone one-point gap frame press is high-rigidity frame design, welded with high-quality steel and processed by the process of eliminating internal stress.


APA series are improved the precision stability and reliability of the machine. The center of the drive is aligned with the center of the machine to ensure accurate and stable punching. Etone becomes the large and famous power press manufacturer in China.


2.80 ton press machine Product Parameter:

Name



APA-80

APA-110

APA-160

Model



V type

H type

V type I H type

V type H type

Tonnage

Ton

80

110

160

Rated tonnage point

mm

4

2

6         3

6         13

Variable speed

s.p.m

35-80

80-120

30-60   60-90

20-50  40-70



Stable speed

s.p.m

65

50

35

Stroke

mm

150

70

180      80

200     90

Max Die height

mm

340

380

360      410

400     450

Slideradjustmen

mm

80

80

100

Slide size

mm

560 x420x70

650x470x80

700x550x90

Bolstersize

mm

1000x550x90

1150x600x110

1250x760x140

Die handle hole

mm

50

50

50

Main motor

kw

7.5

11

15

Slider adjustmentdevice

HP

Applied air pressure

kg/cm2

6

6

6

Press precision



GB(JIS)1class

GB(JIS)1class

GB(JIS)1class

Size (LxWxH)

mm

1800x1180 x 280 0

1900x 1300 x 3200

2300x 140x 3650

Die cushion capacity

Ton

3.6

6.3

10

Die cushion stroke

mm

70

80

80

Die cushion effective area

mm2

450x 310

500x350

650x 420
