High Speed Power Press

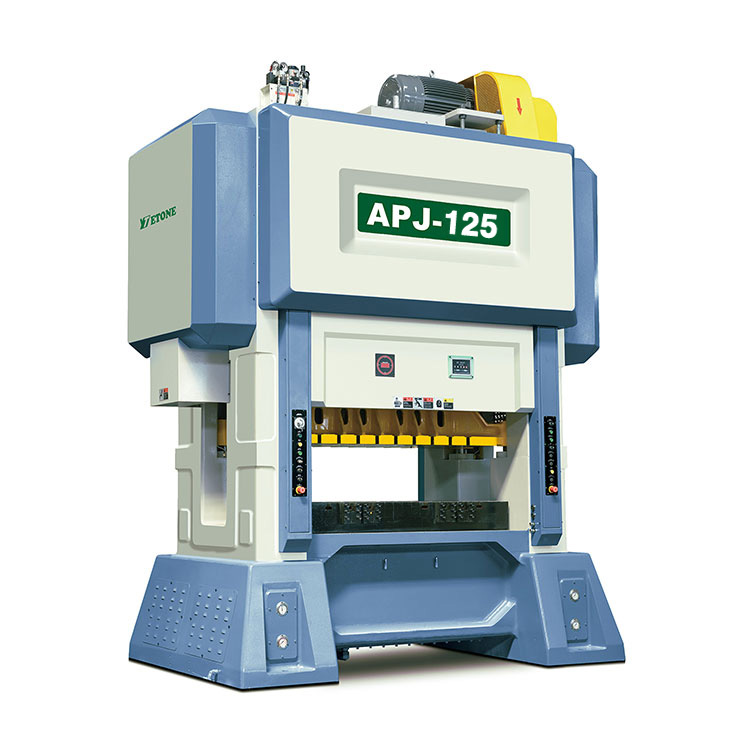

We are the High speed power press manufacturer and supplier in China. Our high speed power press is Straight Side High Speed Double Crank Presses. We have the capacity on 60 ton, 80 ton, 125 ton, 150 ton, 200 ton, 220 ton, 300 ton, 350 tons, 400 tons, 450 tons. With cheap price, good service, and good quality, we have won the trust of all our customers.

Send Inquiry

Product Description

High Speed Power Press


1.Product Description

APJ series is high speed double crank presses designed for the laminated rotors and stators of electric motors. It is maintain a stable and efficiency function of stamping large size stator and rotor, lamination for generator motor and Industrial Motor. It is specially for the manufacture of Home Appliance Motor, Electric Tool Motor, Fan Motor, Auto Motor, Pump Motor, DC Brushless Motor, DC Motor, etc.


2.Features Of High Speed Stamping Press

1. High Rigidity

High rigidity, high precision frame, welded by steel plate, and after heat treatment, eliminate the internal stress of the bed.



2. Balance Of Gravity Center

The transmission center and the center of the whole machine tend to be the same, so as to ensure the accuracy and stability of stamping.



3. Operation Stability And Safety

Clutch/brake devices are highly sensitive, High Speed Precision Lamination Press coupled with international top double solenoid valves and overload protection devices, to ensure the accuracy and safety of punch slider operation and stop.

The adjusting mechanism of slider has high precision, and the adjusting production is safer and faster.



4. High Precision

Crankshaft, gear, gear shaft and other friction parts are hardened and heat treated before grinding. They have high wear resistance and balance, stable performance, and ensure the quality and life of the punch.



5. High Speed Precision Lamination Press Processing Automation

It can be matched with any automatic feeding mechanism to automate production, reduce costs and improve efficiency.

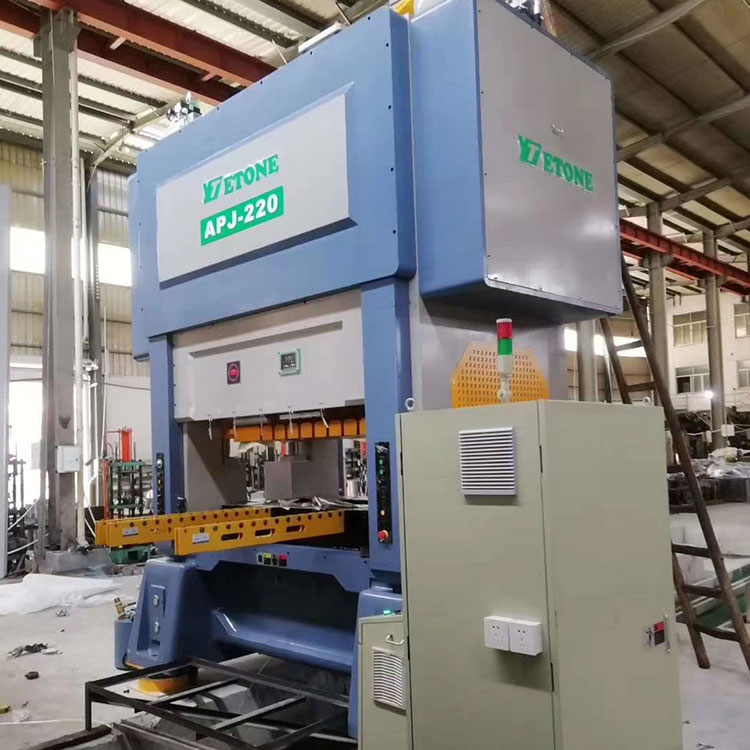

APJ-220

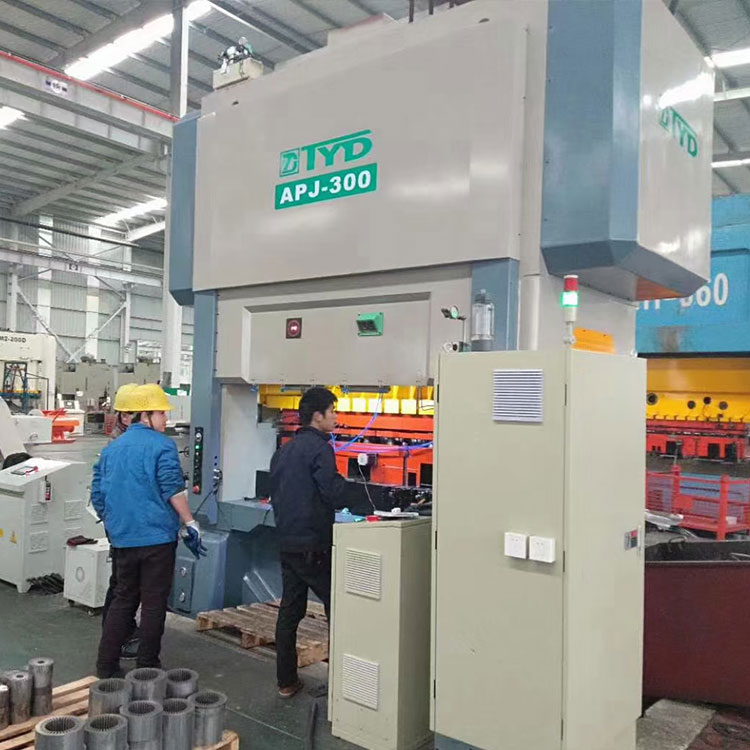

APJ-300

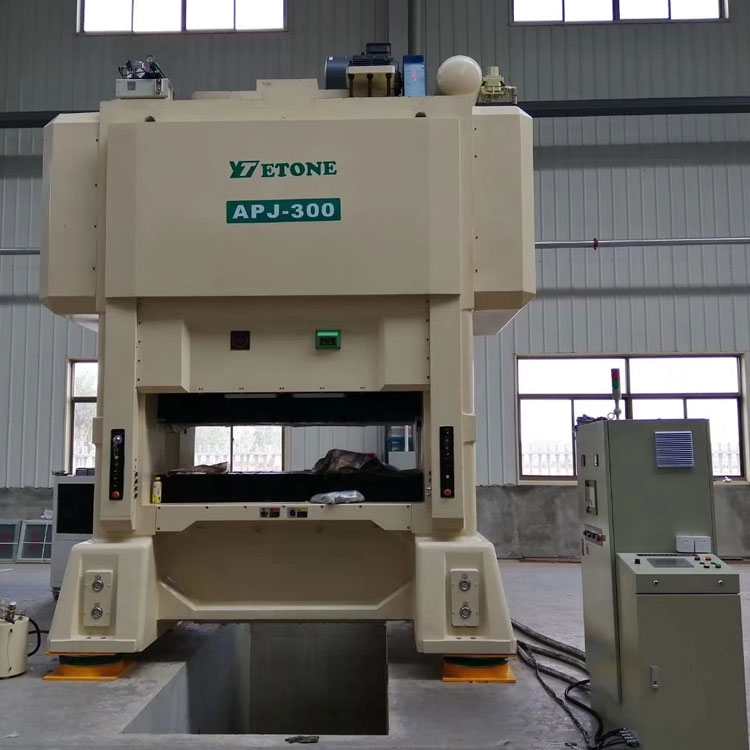

APJ-350

APJ-400

APJ-450

Tonnage

ton

220

300

350

400

450

Travel

mm

30

30

30

30-50

30-50

Number of strokes per minute

s.p.m

150-600

150-400

150-350

150-350

150-300

Lower table size

mm

1900x1000

2200x1000

2400x1000

2800x1200

3000x1200

Blanking hole

mm

1400x300

2000x300

2200x300

2200x400

2500x400

Sliding block area

mm

1900x750

2200x900

2400x900

2800x1100

3000x1100

Die height adjustment stroke

mm

370-420

400-450

400-450

420-480

450-500

Die height adjustment motor

kw

1.5

2.2

2.2

3.7

3.7

Feeding line height

mm

200土50

210土50

210士50

220土50

270土50

Main motor

kw

45

55

55

75

75



3.Machine Standard accessories

1 Lubrication system: apply high pressure oil from crankshaft center(Japan SHOWA)

2 PLC control system: provide cutting signals

3 Bearing: NSK Japan

4 Oil atomizer: SMC Japan

5 Air switch and contactor: Schnede France

6 Oil seal: NOK Japan

7 Auto-balancing system design

8 Electronic slide adjustment system

9 T-Mobile operating table

10 Hydraulic Slide Locking Device

11 Material Ending Detector

12 Inverter:

13 Electric Clutch valve

14 Clutch structure: (OMPI Italy )

15 Relay: Omron

16 Angle and speed showing: TOYO

17 Air pressure joint: ARK Korea

18 Crankshaft: SNCM8,Grinding Guide: AKS Japan

19 Auto-Thermal Balancing in ram/Slider micro inching position

20 Miss-Feed detector

21 Tool box with machine shipping 1


4.Standard accessories:

1 High Speed Gear Feeder (Width Selection: 150/200/300/400)

2 Double heads Uncoiler

3 Straightener with S loop (Width Selection: 200/300/400)

4 Automatic oil device to die

5 Auto Power Die lifer system:

6 Die Arm system:2 pcs

7 Anti-vibration system

8 Chute controller:

9 Die solenoid valve installation system: 10 pcs



5.Optional Accessories

1. Bottom dead detector

2. Quick die clamping device

3. Safety door

4. Others
