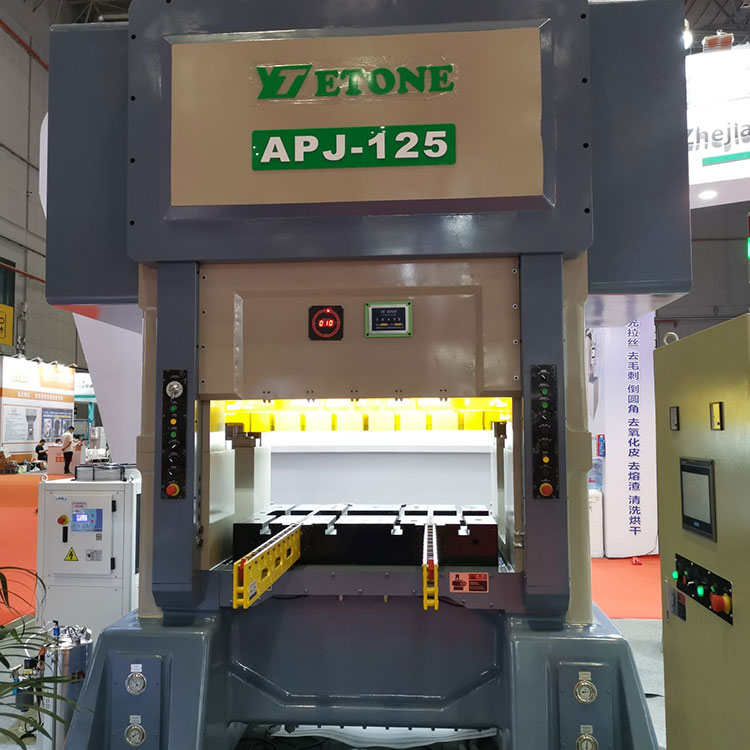

Fan Lamination High Speed Press
1.Product Introduction:
● Etone Fan lamination high speed press maintain a stable and efficiency function of stamping Stator and Rotor of Ceiling Fan and Air Conditioners, Lamination (for Servo Motor, Plastic Sealing Motor, Household Appliances, Power Tools, Home Automation, Geared Motors, Air Conditioner Compressor Motor, Refrigerator Compressor, Automobile Motor, Fan Motor, Ventilation, Refrigeration, Washing Machine Motor, Starter Motor, Engine Cooling Motor, Sunroof Motor, Shaded Pole Motor, HVAC Motor, Electric Turbo Motor, ABS Motor, Tubular Motor, DC Inverter Motor, Segmented, Universal Motor, E-type, Alternator Starter Core, Electric Power Motor ASM, Electric Power Steering Motor PSM) in large tonnage press area for years with reliable manufacturing experience.
● Crank Shaft Oil-way Inner Loop is designed to resist Crank Shaft thermal deformation.
● Adopting NSK bearing, Self-own unique technology controls the clearance.
● Fitting guidance of steel balls ensure the vertical precision stable.
● Compact and reasonable structure. Tie Rod and Slide guidance Integration Slide guided by the steel ball with high precision.
● Hydraulic Locked Tie rod with long-term stability.
● Dynamic Balance: Professional analysis software plus years of industry experience;realize the stability of high-speed pressing.
● Separated Brake & Clutch (DDH): Two-sides setting balanced the force and reduced the Abrasion of Crank Shaft.
● Adjustable Washer restore equipment accuracy with minimum cost.
2.Fan Lamination High Speed Press Product Parameter:
|
|
APJ-60 |
APJ-80 |
APJ-125 |
APJ-150 |
APJ-200 |
Tonnage |
ton |
60 |
80 |
125 |
150 |
200 |
Travel |
mm |
30 |
30 |
30 |
30 |
30 |
Numberof strokes perminute |
s.p.m |
200-800 |
200-700 |
150-700 |
150-600 |
150-600 |
Lower tablesize |
mm |
950x650 |
1100x750 |
1200x850 |
1400x850 |
1700x950 |
Blanking hole |
mm |
700x125 |
800x150 |
1000x200 |
1200x200 |
1300x250 |
Sliding blockarea |
mm |
950x420 |
1100x500 |
1200x600 |
1400x600 |
1700x700 |
Die height adjustment stroke |
mm |
300-350 |
330-380 |
360-410 |
360-410 |
370-420 |
Die height adjustment motor |
kw |
0.4 |
0.75 |
0.75 |
0.75 |
15 |
Feeding line height |
mm |
160 |
175土50 |
195土50 |
195土50 |
200土5 0 |
Main motor |
kw |
19 |
22 |
30 |
37 |
45 |
